Specifications

• AV Interface: DisplayPort to HDMI®
• Interface Standard: DisplayPort 1.4, HDMI®
• Supported Bandwidth: 48Gbps
• Maximum  Output Resolution:
  • 7680x4320 @ 60Hz
  • 3840x2160 @ 120Hz
• Supported Resolutions:
  • 7680x4320 @ 60hz
  • 3840x2160 @ 144/120hz
  • 2560x1440 @ 230/165/144hz
  • 1920x1080 @ 240hz
• Chipset: VMM7100
• HDCP Support: HDCP 2.2
• Supported Audio: Pass-through
• Special Features: HDR support, DSC v1.2a support

Connectors

• Input: DisplayPort Male
• Output: HDMI® Type A Female

Physical Properties

• Dimensions (approx.) WxDxH:  20mm x 10mm x 40.2mm (0.78 x 0.39 x 1.58 inch)
• Inline Adapter
• Housing Material: Aluminium
• Net Weight: 14.8g (0.03lbs)
• Operating Temperature: 0°C - 40°C (0°F - 104°F)
• Storage Temperature: -40°C - 80°C (-40°F - 176°F)
• Humidity: 0 - 85% RH (non-condensing)
• Colour: Grey

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 174x194mm (6.85x7.64in)
• Gross Weight: 0.042kg (0.09lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

Package Contents

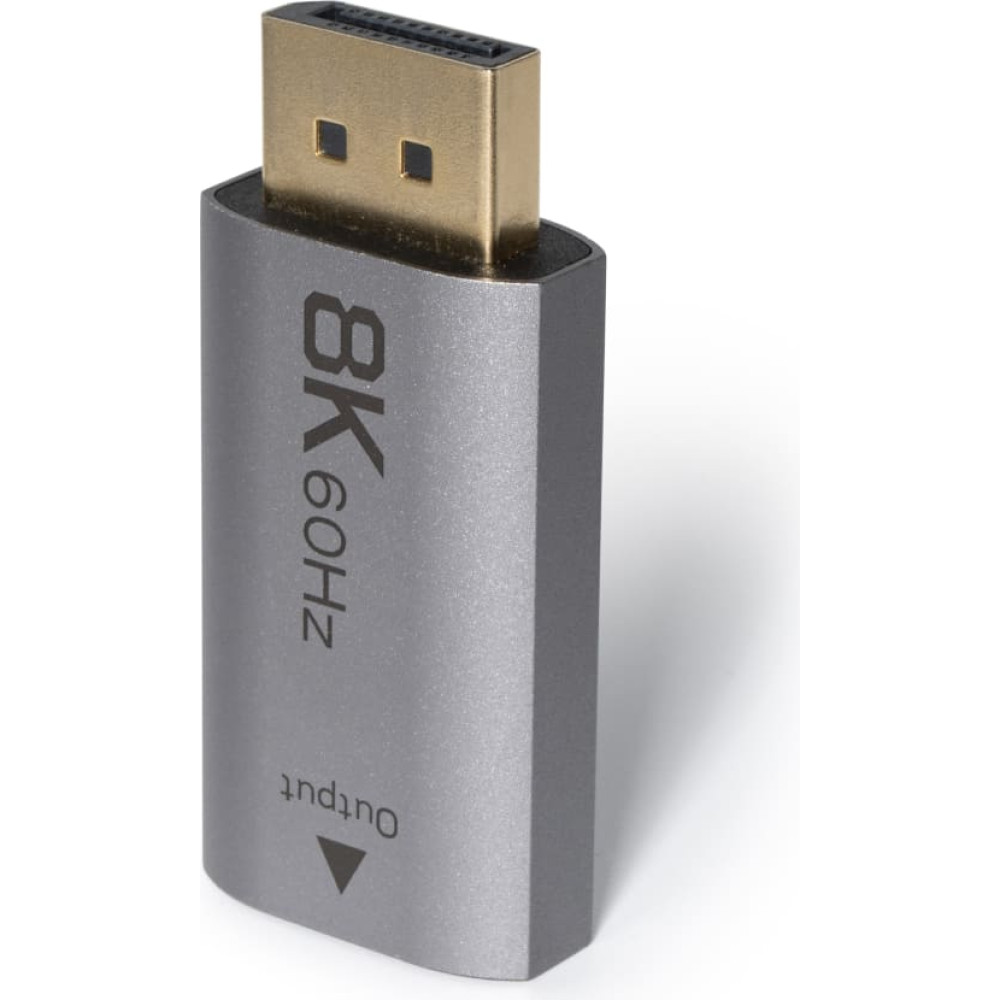

• DisplayPort 1.4 to HDMI® 8K Active Converter

Purchasing Information

• No.: 41095
• EAN: 4002888410953
