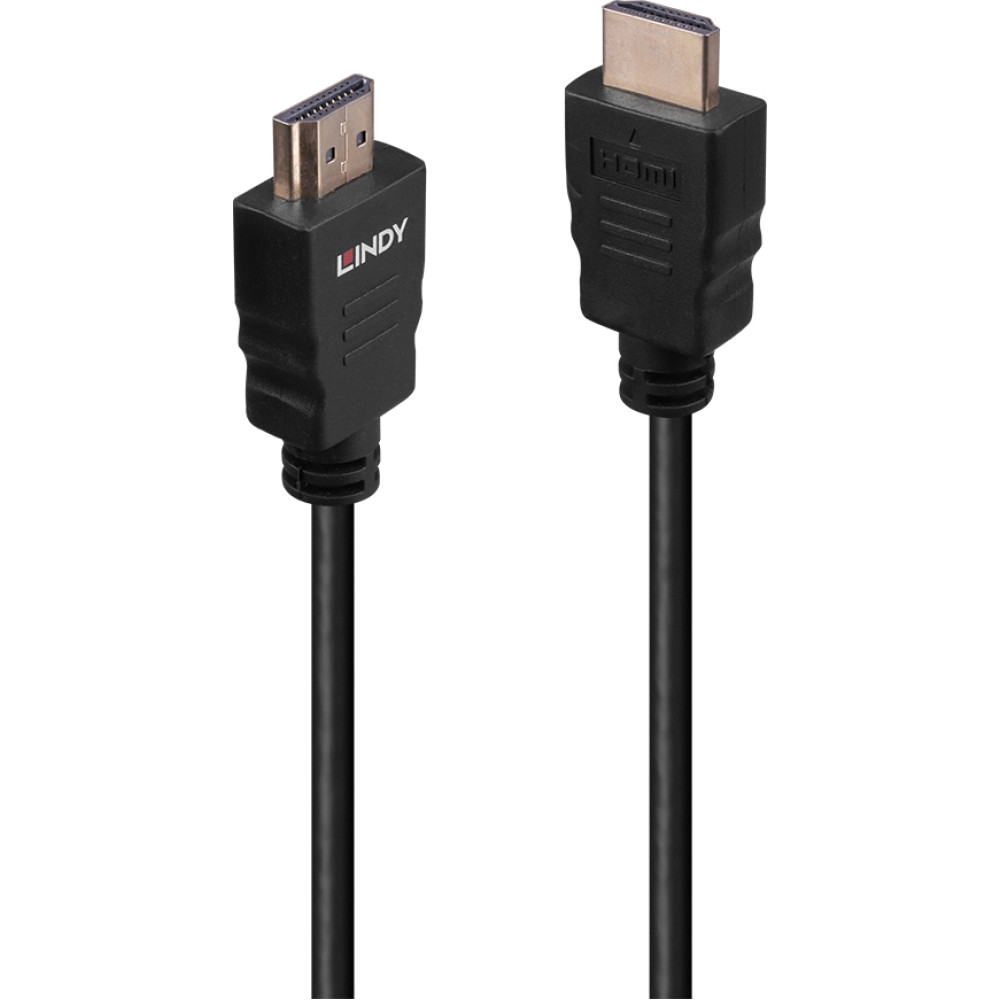

Connectors

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing Material: TPE (Thermoplastic Elastomer)
• Connector Plating: Gold Plating
• Pin Construction: Copper Alloy
• Pin Plating: Gold Plating
• Dimensions (approx.) WxDxH: 20.3 x 35.8 x 10.5mm (0.79 x 1.40  x 0.41in)

Cable Construction

• Length: 5m (16.44ft)
• Standard: High Speed HDMI®
• Colour: Black
• Type: Round
• Jacket Diameter: 7mm (0.27in)
• Jacket Material: TPE (Thermoplastic Elastomer)
• Conductor Material: Copper
• Conductor Gauge: 28AWG
• Shielding: Tin Plated
• Braid Shielding: Aluminium-Mylar

Specifications

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• Nominal Attenuation:
  • 300kHz-825MHz <5dB
  • 825MHz-2.475GHz <5dB
  • 2.475GHz-4.125GHz <12dB
  • 4.125GHz-5.1GHz <20dB
• Minimum Bend Radius: 48mm (1.89in)
• Operating Temperature: -30°C - 80°C (-22°F - 176°F)
• Storage Temperature: -10°C - 85°C (14°F - 185°F)
• ATC Approved: Yes

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 37413
• EAN: 4002888374132

This product is also available in other lengths

• 37410 - 1m (3.28ft)
• 37411 - 2m (6.56ft)
• 37412 - 3m (9.84ft)
• 37413 - 5m (16.44ft)
