Specifications:

• AV Interface: HDMI®
• Console Interfaces: USB
• Interface Standard: HDMI® 2.0, USB 2.0
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: Analogue Stereo
• Separate Audio Ports: 3.5mm (Female)
• Serial Interface: DB9 (Female)
• Console Number: 1
• Max Number PC/Server: 8
• Cascadable: No
• Switching Method: Port buttons, Hotkey (configurable), RS-232 commands
• 19" Rack Mountable: Yes (1U - Rack Mount Brackets included)
• Special features: shared USB ports, autoscan, LED display


Connectors:

• Console Interfaces: HDMI® (Female), 2 x USB Type A HID (Female), 3.5mm (Female)

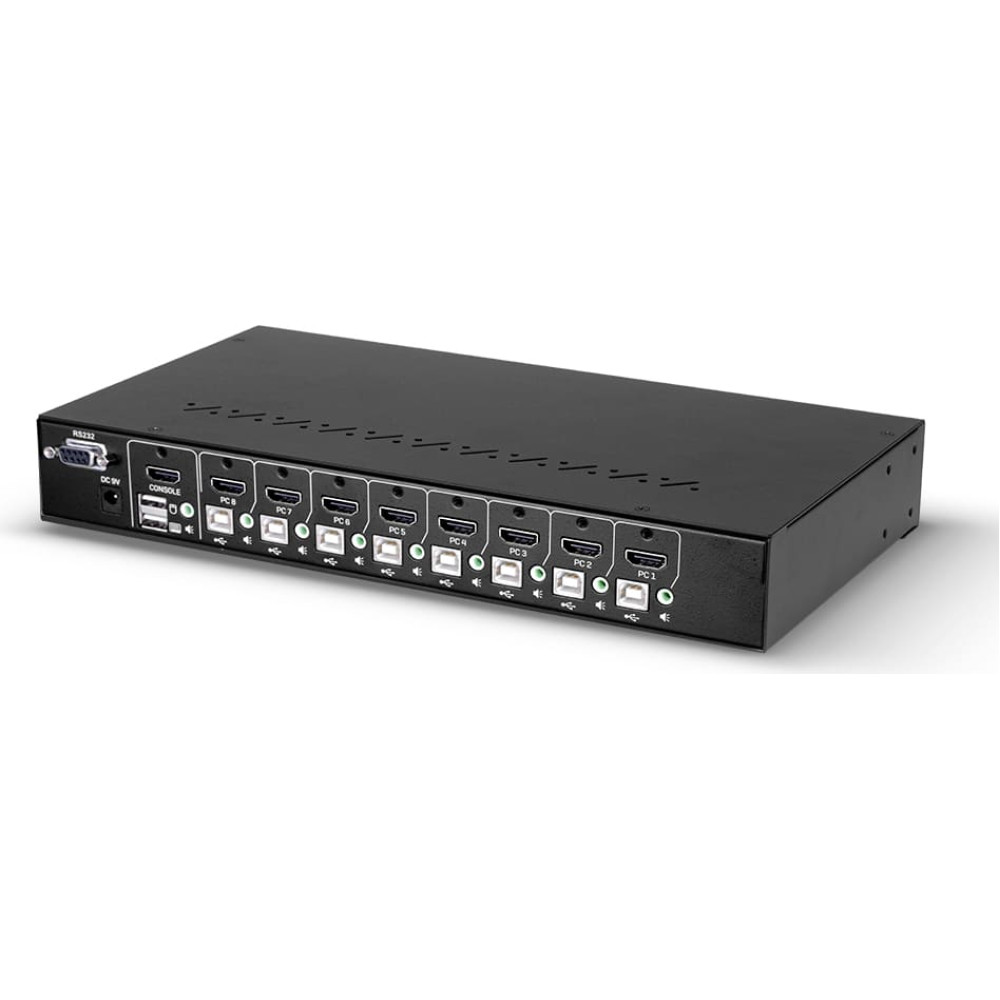

• PC/Server Interfaces: 8 x HDMI® (Female), 8 x USB 2.0 Type B (Female), 8 x 3.5mm (Female)
• Other Interfaces: 2 x USB 2.0 Type A (Female) shared ports (front panel), RS-232 DB9 (Female)
• Power: 5.5/2.1mm DC

Physical Properties:

• Dimensions (approx.) WxDxH: 300x164x44mm (11.81x6.46x1.73in)
• Housing Material: Metal
• Net Weight: 1.79kg (3.95lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0~90% RH (non-condensing)
• Power Requirements: 9VDC 2A
• Colour: Black

Miscellaneous:

• Packaging Type: Carton box
• Packaging Dimensions: 566x104x245mm (22.28x4.09x9.65in)
• Gross Weight: 2.06kg (4.54lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH, California Proposition 65, TAA

Package content:

• KVM Switch
• 2 x 19" Rack Mount Bracket with Screws
• RS-232 DB9 Female to Male cable, 1.8m

• Multi-Country PSU (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information:

• No.: 39538
• EAN: 4002888395380
