The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console.

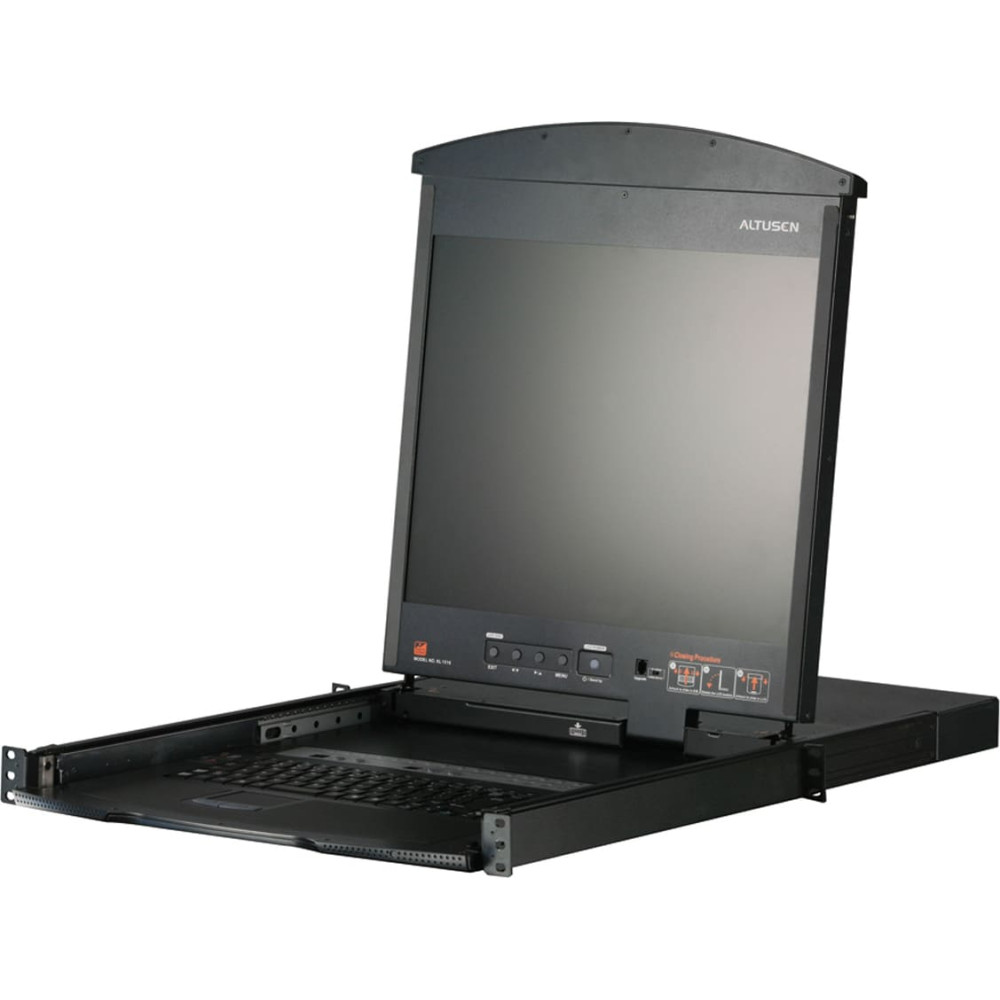

The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.

The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.

• Keyboard Layout French
• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing
• A single console controls up to 8 computers
• Daisy chain up to 15 additional KVM switches to control up to 128 computers
• One bus for remote KVM over IP access
• Space-saving RJ-45 connectors and Cat 5e/6 cabling
• KVM adapters designed with automatic conversion to allow flexible interface combinations to control all computer types
• Extra console port – manage computers in the LCD KVM switch from an external console
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
• Dual Rail – LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• Superior Video Quality – supports input video resolutions up to 1920 x 120 0@ 60Hz
