4K HDMI Matrix Switch - Ideal for Managing Content Across 2 Displays

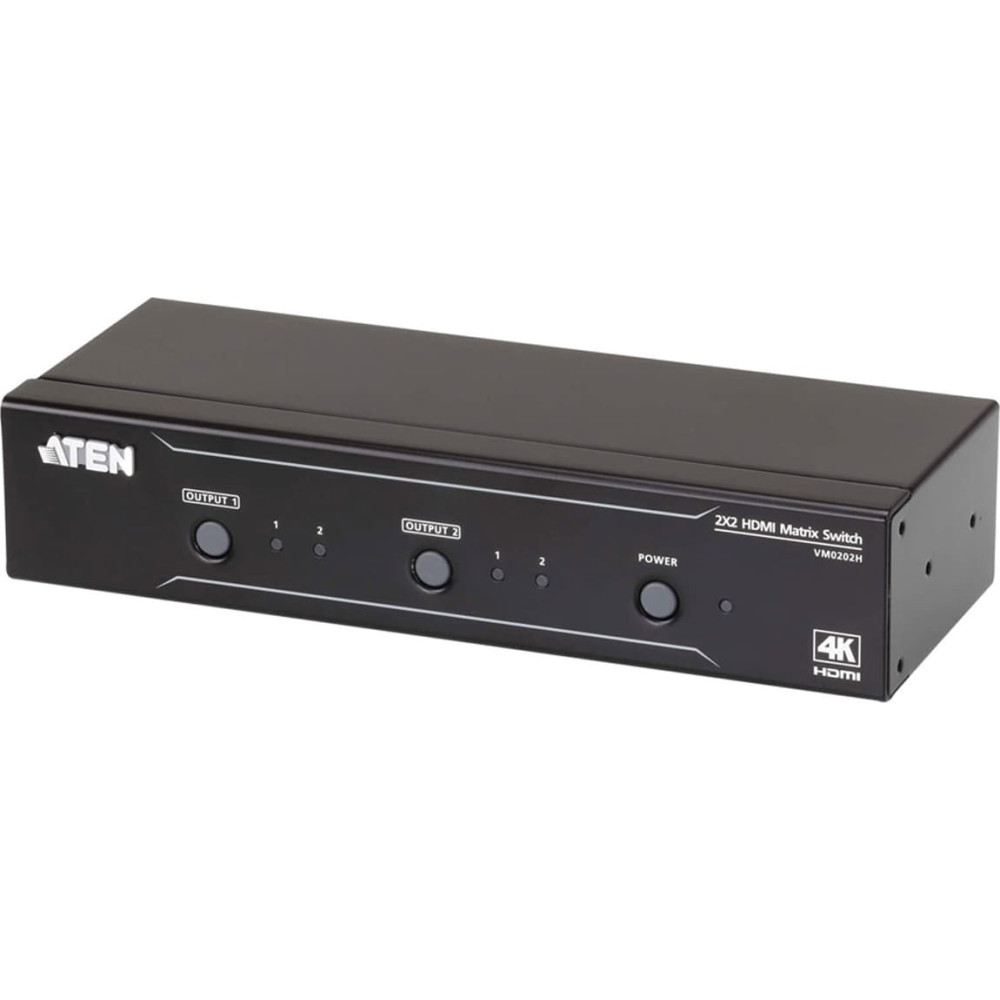

The VM0202H is a compact 2 x 2 matrix switch compatible with HDMI source and display devices. Any input can be routed to any output, reducing the need for you to move devices or cables when displaying content from different HDMI sources on different outputs. It is ideal for meeting rooms and classrooms, as well as any venue where you need to switch between 2 different video sources on different displays.

Featuring support for up to 4096x2160@60Hz (4:2:0) resolutions, the VM0202H delivers brilliant video quality with amazing detail.

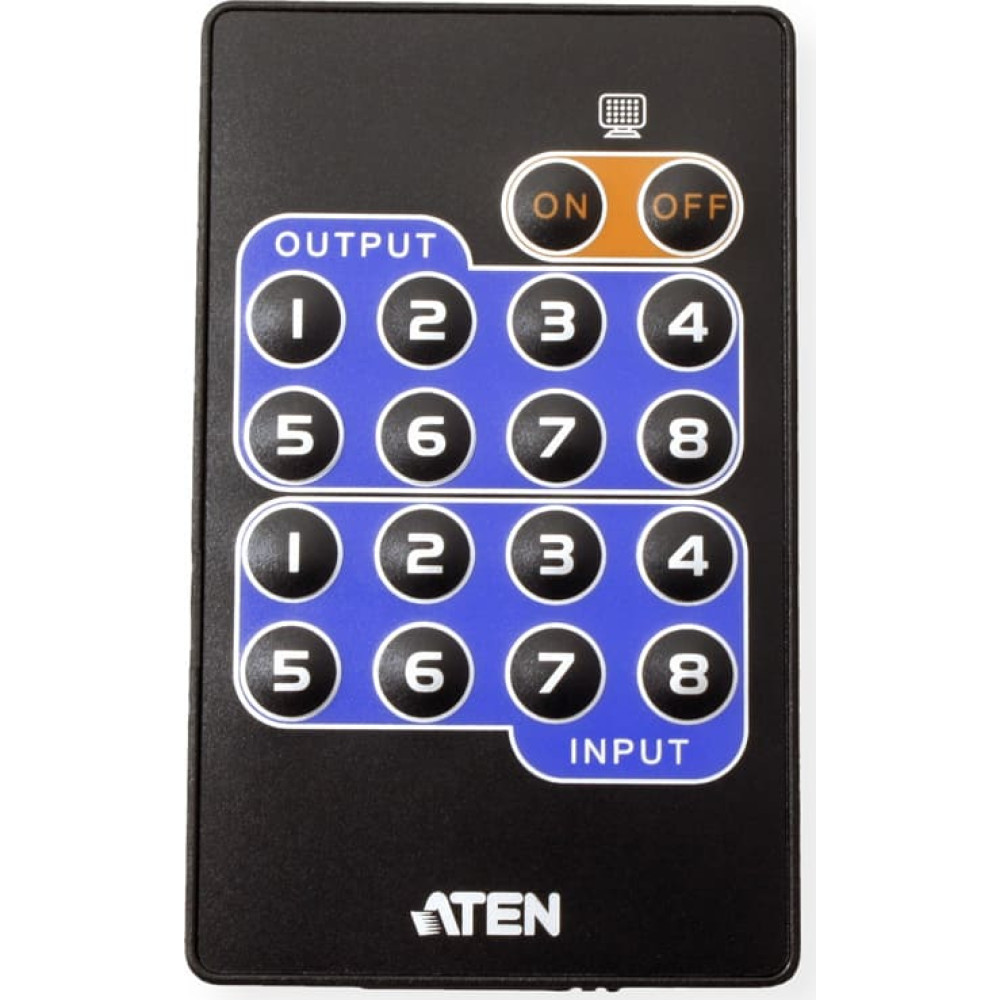

The VM0202H offers both manual and remote control options to make your operations easy. You can switch inputs to outputs and adjust audio settings manually through front panel pushbuttons. For remote control, simply plug-n-play the IR receiver and the corresponding IR remote. In addition, you can even integrate VM0202H with your preferred control interface via RS-232.

• Connects 2 HDMI sources to any 2 HDMI displays
• HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
• Supports computer and video resolutions up to 4K
• Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
• Supports long distance transmission at a distance up to 15 meters
• Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
• EDID Expert™ — Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
• Supports ATEN’s Lock Pro™ HDMI cable lock for securing HDMI cable connections
• All-metal casing
• Firmware upgradable
• Rack mountable
