Specifikācija
country of origin: CN
height(cm): 7
length(cm): 4.5
volume(cm3): 315
weight(kg): 0.15
width(cm): 10
Preces apraksts

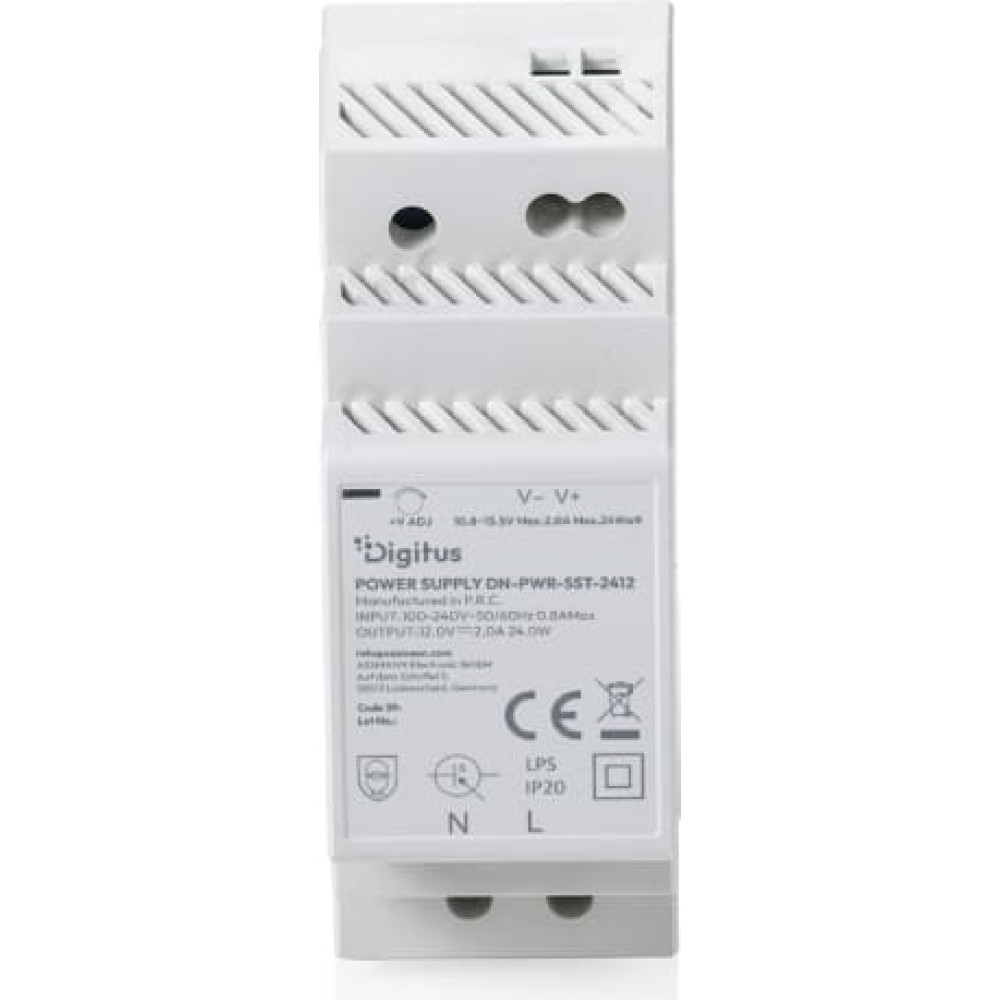

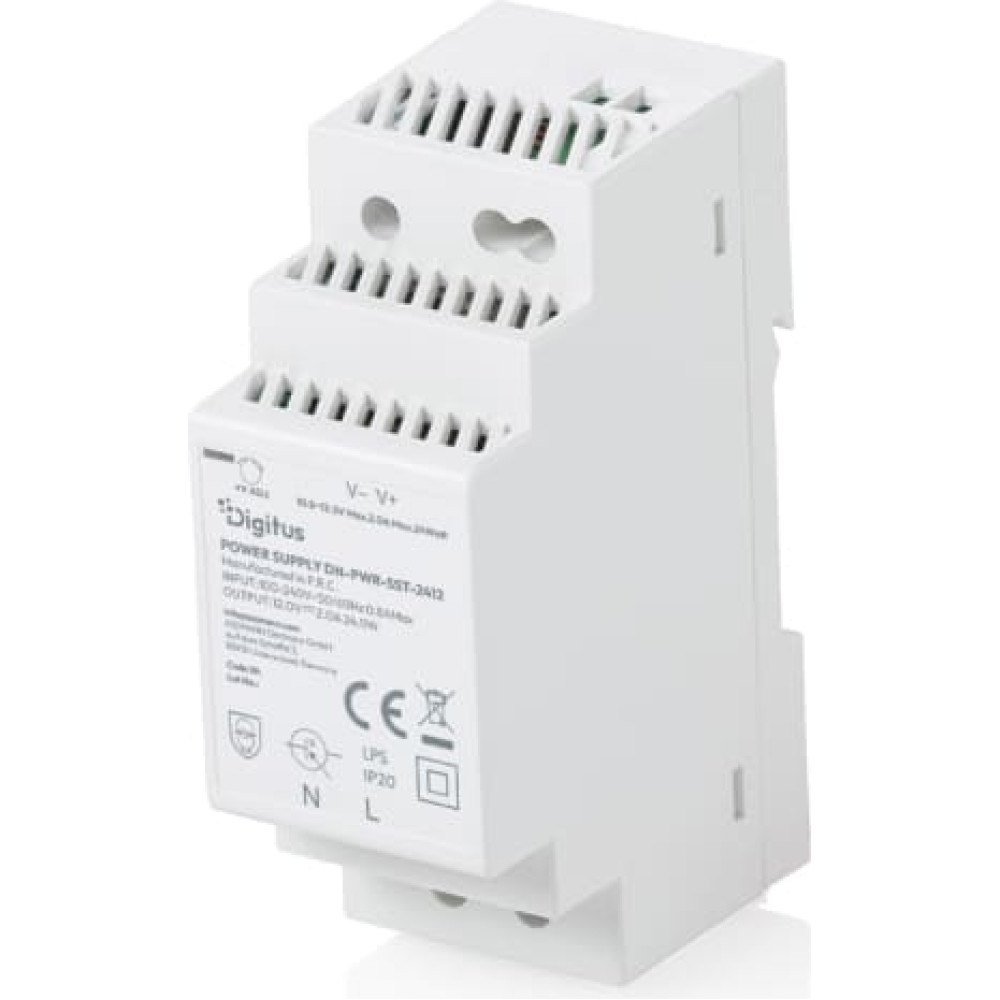

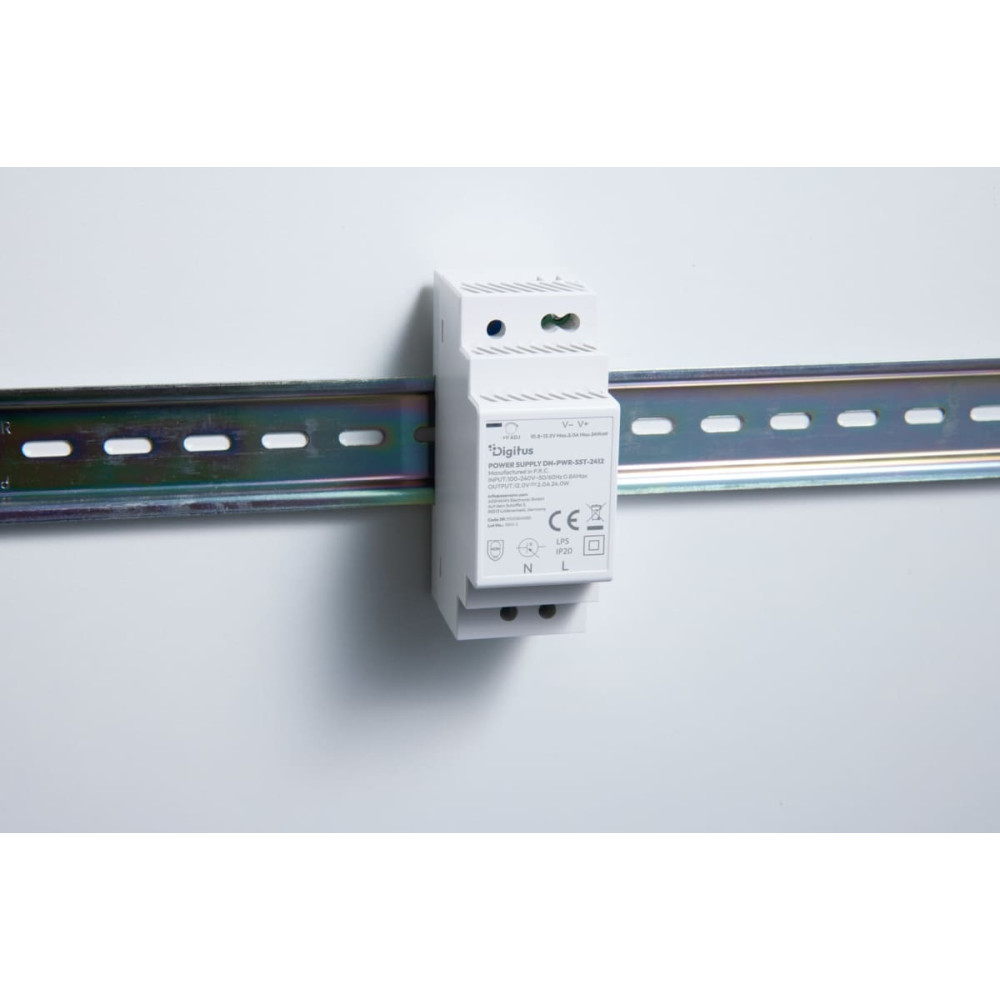

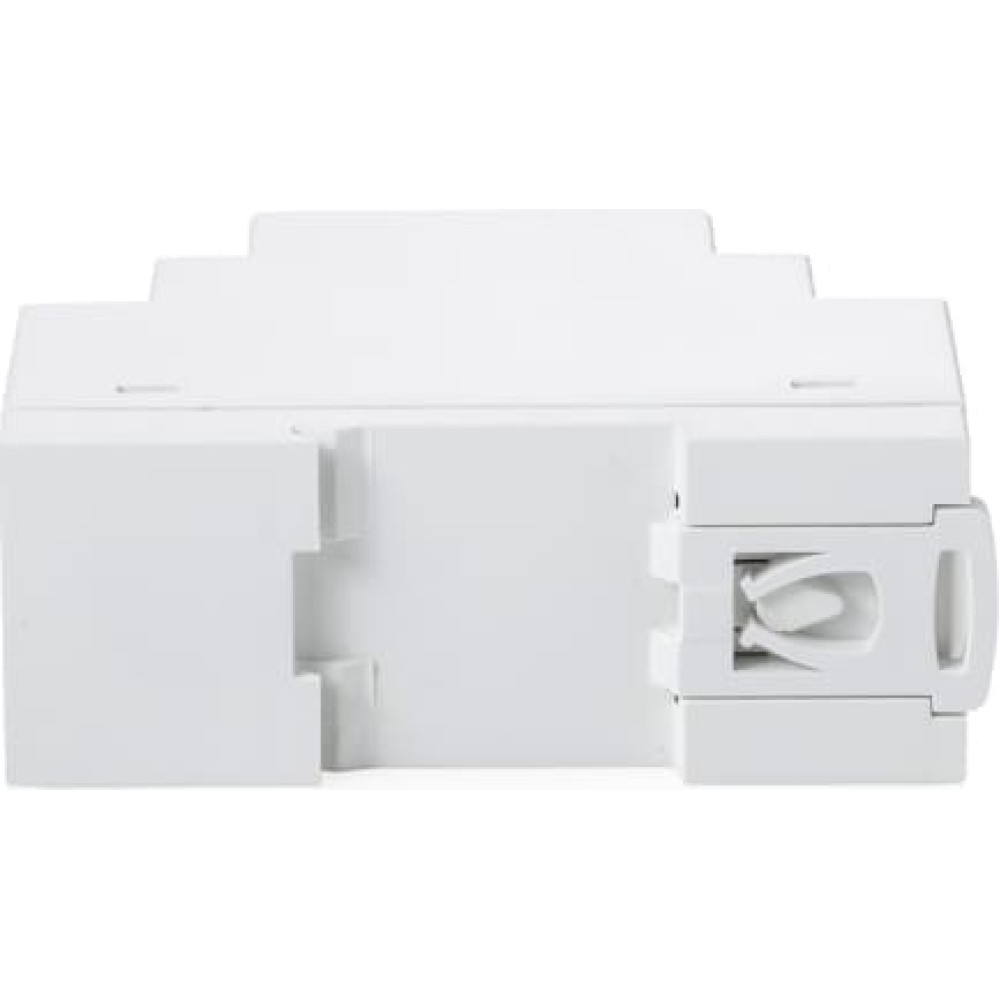

| Step Power Supply 12V DC, 2A, 24W, enclosed type Ideal for sensors, IoT and low-voltage electronics Compact 12 V power supply unit for narrow control cabinets - high efficiency, can be used worldwide and is fully protected. Ideal for building automation, industry, IoT modules and access solutions. Compact step-shape housing with 35 mm width - ideal for tight installation spaces. Stable 12 V DC / 2 A / 24 W - perfect for control technology and automation. Very high efficiency of 88 % - energy-optimized for continuous operation. Wide-range input 90-264 V AC / 127-370 V DC - can be used worldwide. Adjustable output voltage 10.8-13.8 V - ideal for cable lengths and load-dependent voltage adjustment. Complete protection functions: Short-circuit, overload and overvoltage protection. DIN top-hat rail mounting (TH35) - quick and secure installation. Insulation Class II & Class 2/LPS - increased electrical safety without PE connection. Wide temperature range -20 to +70 °C - robust for demanding environments. Ideal for building automation, industry, IoT gateways, access control systems and sensor technology. The DIGITUS DN-PWR-SST-2412 is a powerful 12 V DIN rail power supply with 24 W rated power and a compact step-shape design. With a width of just 35 mm, it is ideal for distribution boards, control cabinets, automation modules and IoT infrastructures where every millimeter counts. The wide input voltage range of 90-264 V AC / 127-370 V DC enables worldwide use, while the output provides a stable 12 V DC voltage with 2 A. The output voltage can be flexibly adjusted between 10.8 and 13.8 V - a decisive advantage for long cable runs or consumer loads that require precise voltage adjustment. Thanks to comprehensive protective circuits such as short-circuit, overload and overvoltage protection, the power supply works reliably even under demanding conditions. The combination of Class II, Class 2/LPS insulation, high efficiency of 88%, wide temperature range and robust EMC design makes the DN-PWR-SST-2412 the ideal voltage source for modern automation, building and IoT systems. Typical applications include 12 V sensors and actuators, control modules such as relay cards or zone controllers, door intercoms, switching modules and smart building logic. In industrial and automation technology, the stable 12 V supply enables the reliable operation of PLC slave units, I/O modules, RS485/RS232 communication devices, mini PLCs or relay field modules. The power supply unit also reliably supplies gateways, protocol converters, edge sensors, embedded modules and communication components in the IoT and edge computing sector. In security and access control, it supplies stable power for door opener modules, card and RFID readers, video door stations as well as intercom and access communication systems. Output voltage: 12 V DC Output current: 2 A Output power: 24 W Voltage setting range: 10.8-13.8 V Ripple & Noise: 120 mVp-p Voltage tolerance: ±2 % Line regulation: ±1 % Load regulation: ±1 % Input voltage: 90-264 V AC / 127-370 V DC Frequency range: 47-63 Hz Inrush current: 25 A @ 115 V / 45 A @ 230 V AC current consumption: 0.88 A @ 115 V / 0.48 A @ 230 V Efficiency: 88 % Overload protection: 105-160 % (hiccup mode, auto-recovery) Overvoltage protection (OVP): 15-18 V Short-circuit protection: Yes (auto-recovery) Working temperature: -20 °C to +70 °C Storage temperature: -40 °C to +85 °C Humidity: 20-80 % RH (non-condensing) MTBF: > 900,000 h (MIL-HDBK-217F) Vibration: IEC60068-2-6 (10-500 Hz, 2G) Operating altitude: up to 5000 m Isolation Class II Class 2 / LPS Safety standards: UL62368-1, EN62368-1 Insulation voltage: 4 kV AC Dimensions: 35 × 90 × 58 mm Weight: 120 g Mounting: DIN rail (TH35) Connections (input): AC/L (1), AC/N (2) Connections (output): +V (3), -V (4) Package content: 1× DIGITUS DN-PWR-SST-2412 Step-Shape DIN-Rail power supply unit (12 V / 2 A / 24 W) 1× Quick Installation Guide (QIG) |
