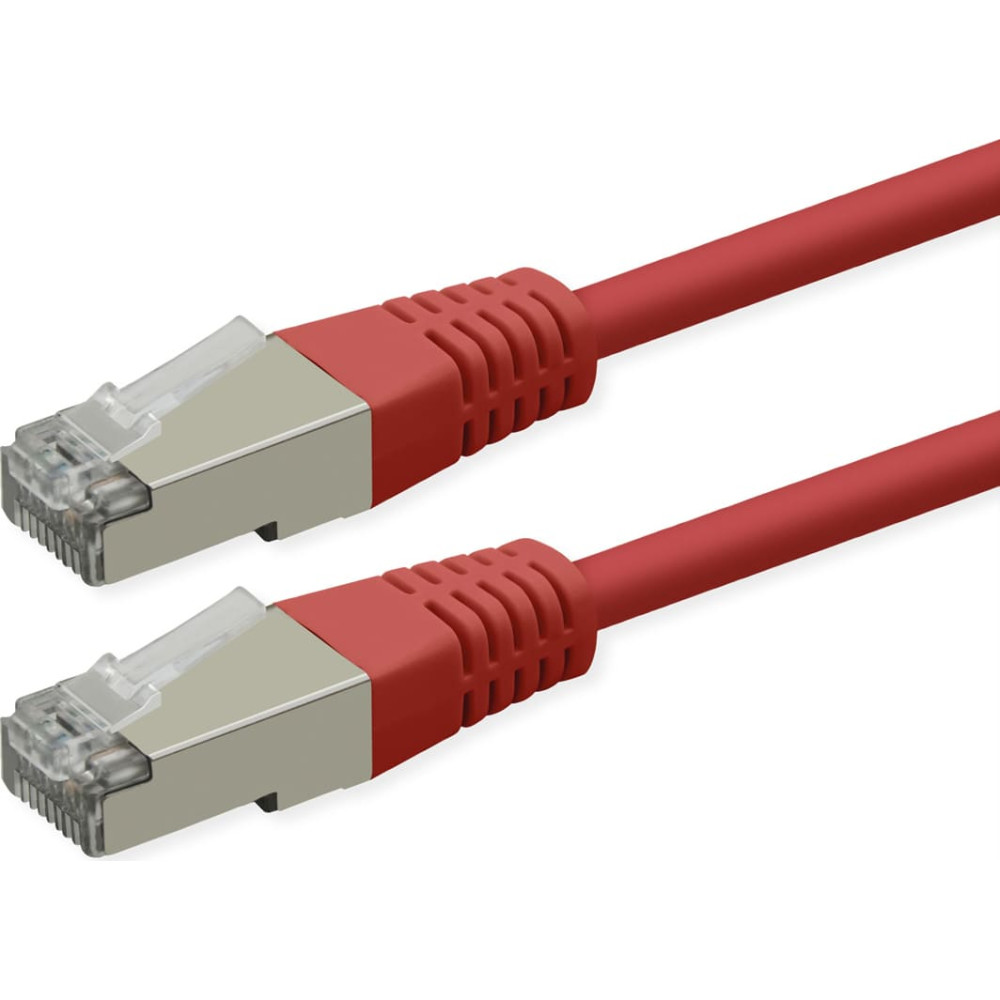

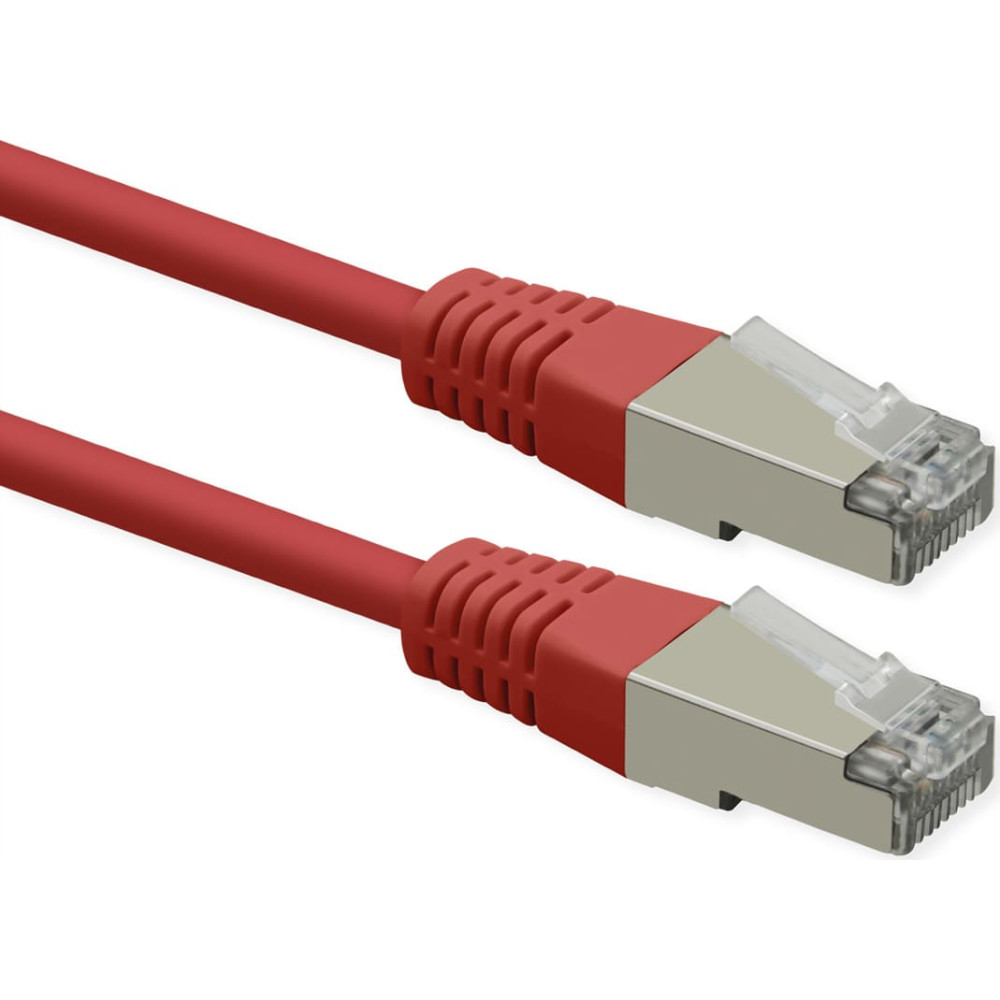

Roline S/FTP (PiMF) Patch Cord, Cat.6 (Class E), PoE, red, 7 m

Produkta kods: 21.51.1371

Svītrkods: 7630049660045

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija

Preces apraksts

Līdzīgas preces

Specifikācija

anti-kink sleeve: Moulded-on

bend radius: 36 mm

cable lsoh: no

colour: red

colour (spout): red

conductor cross section (awg): AWG 26

conductor type: Stranded

connector type rj45: Standard

crossed: no

depth of packaging (single piece): 150

external cable diameter: 6.0 mm +/- 0.2 mm

garums: 7

gross weight: 0.24

height of packaging (single piece): 30

impedance: 100 Ohm

inner conductor material: BC (Bare Copper)

locking lever: no

manufacturer: ROLINE

material (external cable mantle): PVC

operating temperature max.: 60

operating temperature min.: -10

package weight (single piece): 0.24

power over ethernet (poe): yes

product group: Twisted Pair Cable

product type: S/FTP patch cord (PiMF)

quantity of wires: 8

scope of delivery: Patch Cord

shield type: S/FTP (PiMF)

side 1 connector gender: Male

side 1 connector type: RJ-45

side 2 connector gender: Male

side 2 connector type: RJ-45

storage temperature max.: 75

storage temperature min.: -20

transfer quality: Cat6 / Class E

weight: 243

width of packaging (single piece): 150

Preces apraksts

Cat. 6 (Class E) S/FTP (PiMF) ROLINE PoE (Power over Ethernet) capable Patch Cord for networking connections between devices. Prepared shielded Twisted Pair cable with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire.

Patch cable for networking connections between devices
Suitable for PoE (Power over Ethernet)
Prepared shielded (PiMF) Twisted Pair cable with RJ-45 connectors on both ends
Durable due to moulded kink protection
Flexible cable, suitable for narrow bending
High quality plugs with gold plated contacts
Contact settings 1:1, in accordance with the EIA/TIA 568 standard
Construction: 4-pair stranded copper wire

For a structured cabling system we recommend to use the following components: ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m); ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory); ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory); ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black); ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.51.0835. Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.
