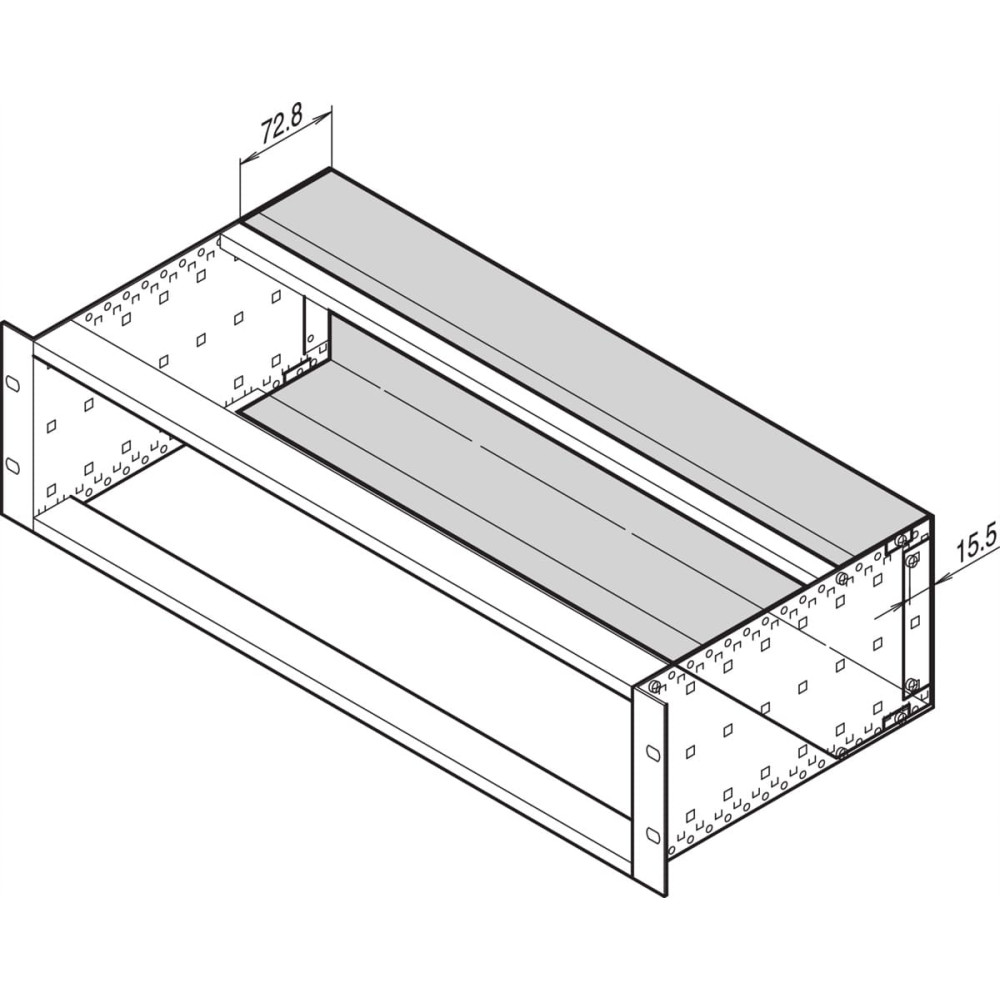

EuropacPRO, rear cover, 3 U, 84 HP, for stainless steel EMC seal,

REAR HOOD 3U 84HP

The rear cover is used as a shielded rear termination. The rear cover requires 60 mm of space. Therefore, when using the rear cover, the side panel depth must be 60 mm greater than the board depth. Example: A side panel (with rear cover) of 235 mm (175 mm + 60 mm) is used for a panel depth of 160 mm - The contact between the rear cover and the horizontal rails is made by the stainless steel seal for the cover plate. This means that no additional EMC seals are required
