Specifications

• CPU: ARM Cortex-A7 1.2GHz
• Operation system: Linux
• RAM: 256Mb
• Flash memory: 256Mb
• Interfaces Standard: PoE 802.3af
• Supported Bandwidth: 100Mbps
• Maximum Distance: 100m (393.7ft) (Point to Point)
• Transmission Medium: Cat.6
• Special Features: programmable via Lindy Pro Control software

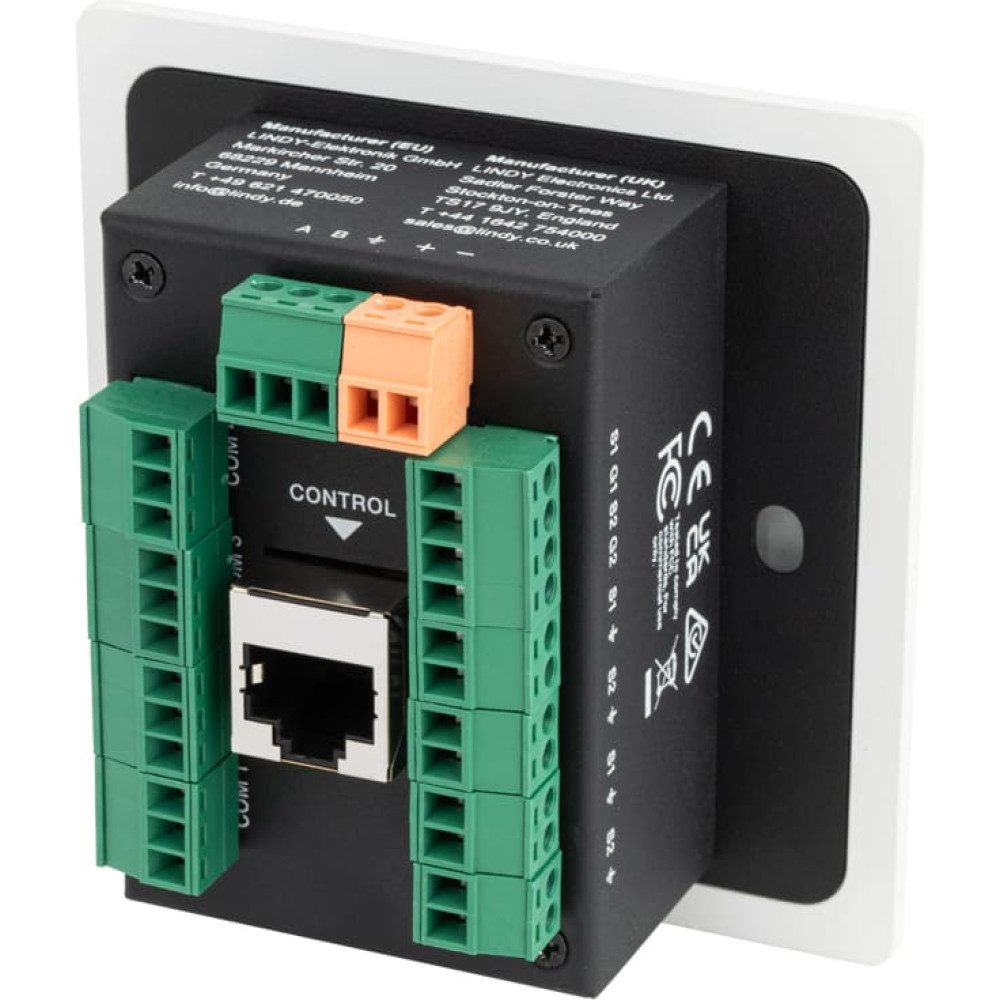

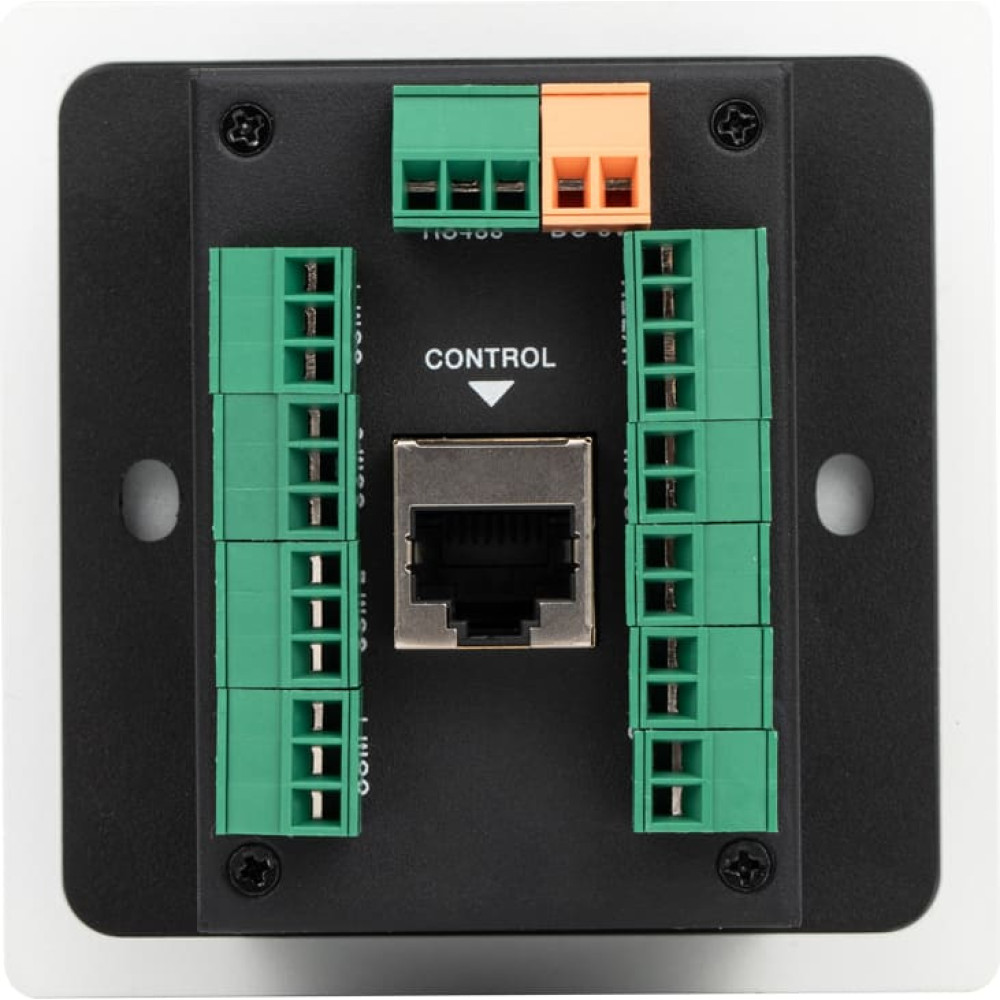

Connectors

• Control Interfaces:
  1x RJ45 POE
  4x RS232 (3 pin terminal block)
  1x RS485 (3 pin terminal block)
  Relay (4 pin terminal block)
  2x IR out (2 pin terminal block)
  2x I/O in/out (2 pin terminal block)
  1x USB-C debug port (Female)
• Power: 2 pin terminal block

Physical Properties

• Dimensions (approx.) WxDxH: 86x86x52.7mm (3.39x3.39x2.07in)
• Housing Material: Metal
• Net Weight: 0.115kg (0.25lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 10 - 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• MTBF: >30000 hours
• Colour: White

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 185x135x75mm (7.28x5.31x2.95in)
• Gross Weight: 0.529kg (1.17lb)
• Warranty: 2
• Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

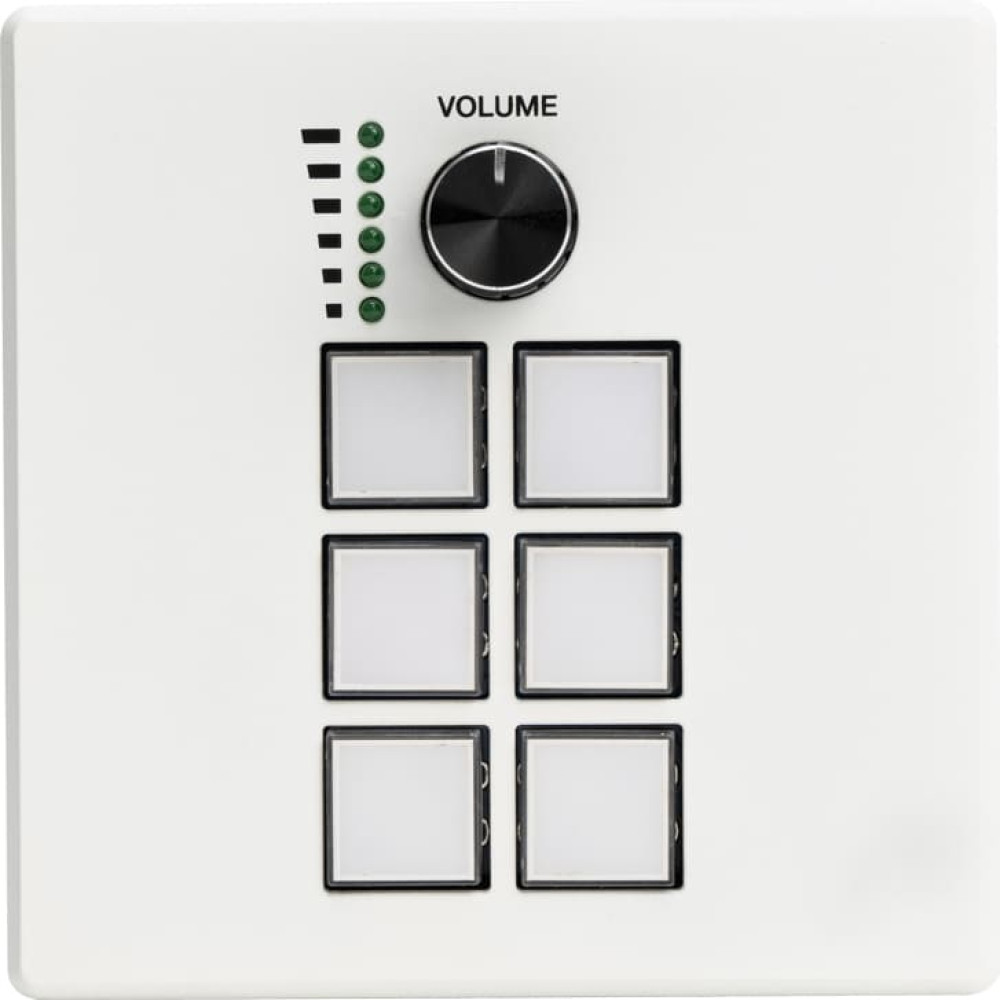

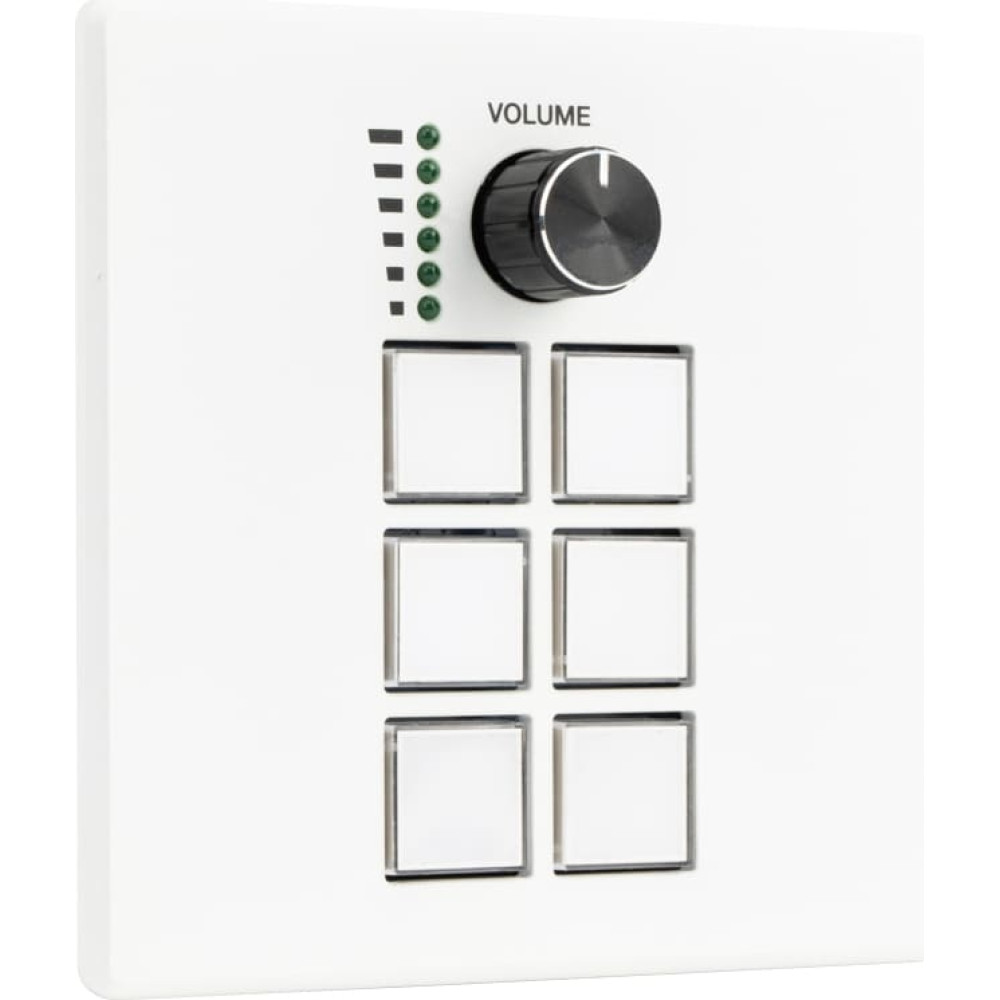

• Control Keypad
• 5x 3pin-3.5mm Phoenix Connector (male)
• 4pin-3.5mm Phoenix Connector (male)
• 4x 2pin-3.5mm Phoenix Connector (male)
• 2pin-3.81mm Phoenix Connector (male)

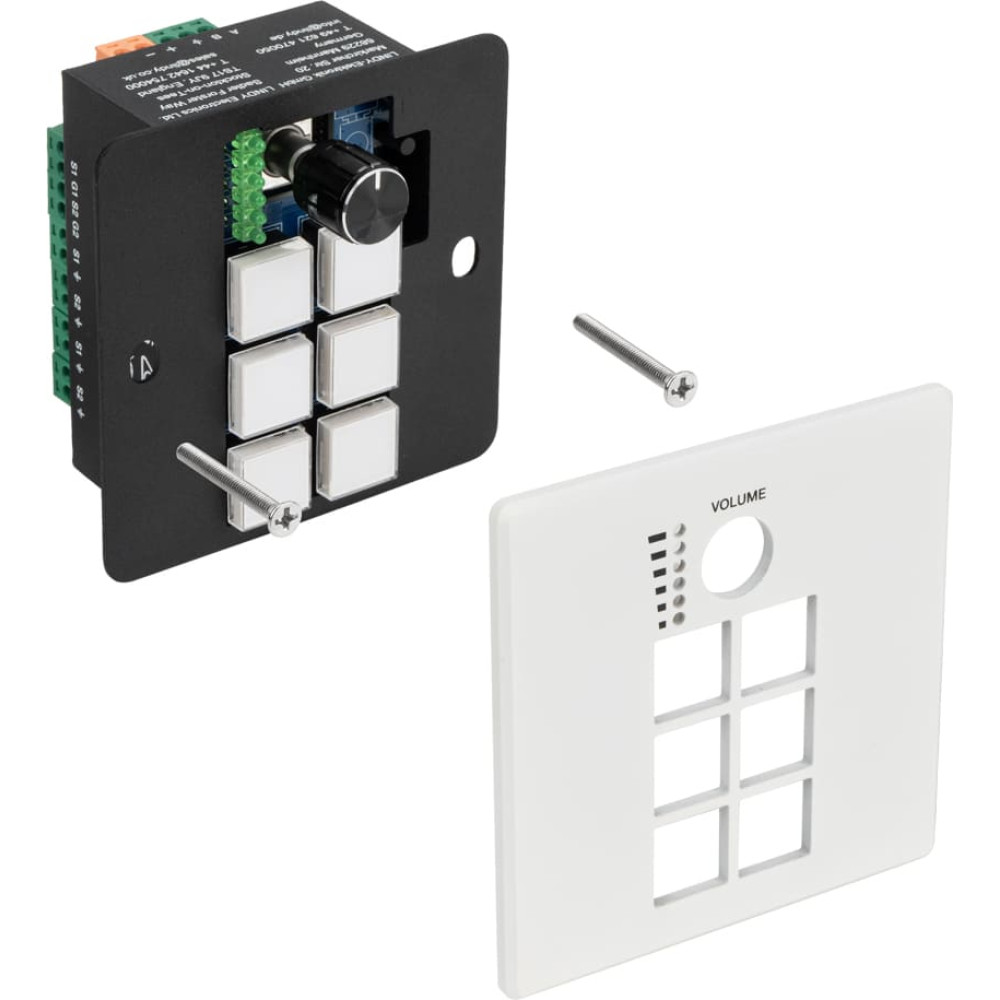

• 2x Wall Mounting Screw
• 5V 1A Multi Country Power Supply, 2pin-3.81mm Phoenix Connector
• Quick Installation Guide

Purchasing Information

• No.: 32306
• EAN: 4002888323062
