Specifications

• CPU: ARM Cortex-A55 1.8GHz
• Operation system: Android 11.0
• RAM: 4Gb DDR4
• Flash memory: 32Gb EMMC
• Interfaces Standard: PoE 802.3af
• Supported Bandwidth: 1Gbps
• Maximum Distance: 100m (393.7ft) (Point to Point)
• Transmission Medium: Cat.6
• Special Features: programmable via Lindy Pro Control software and app

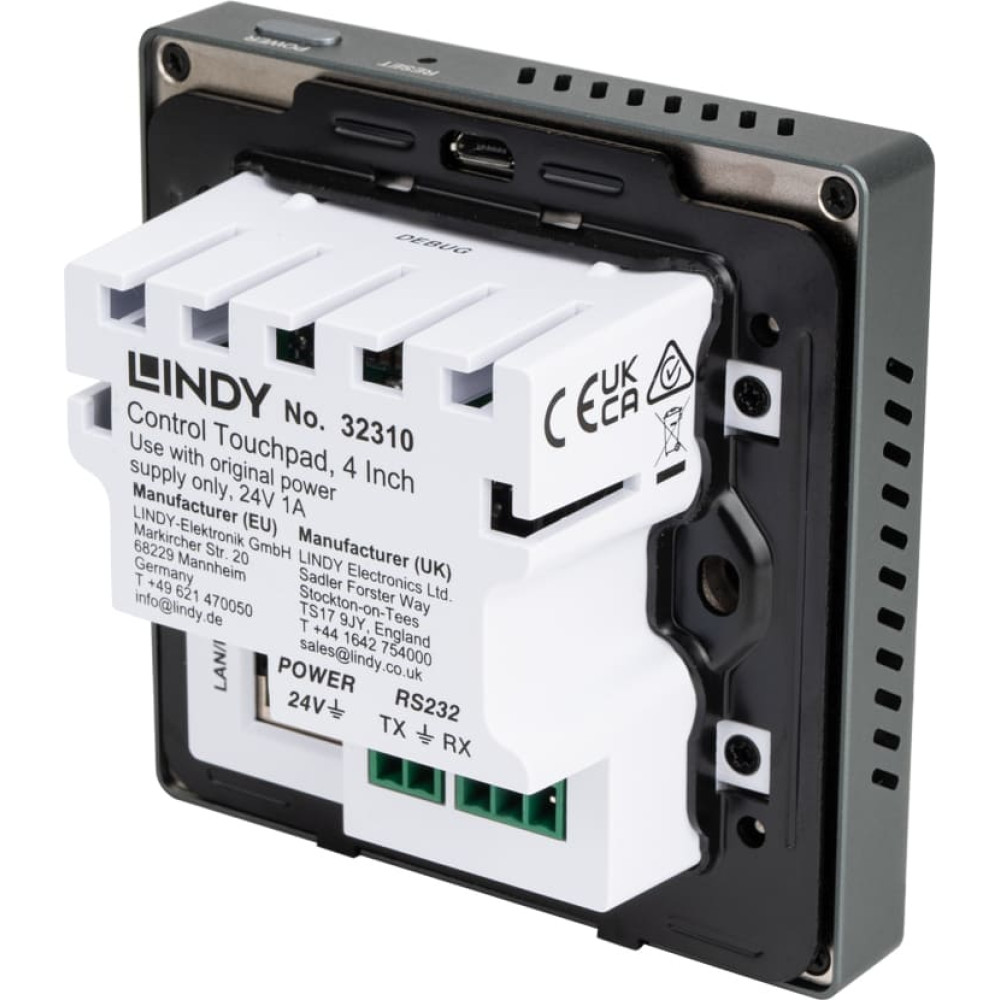

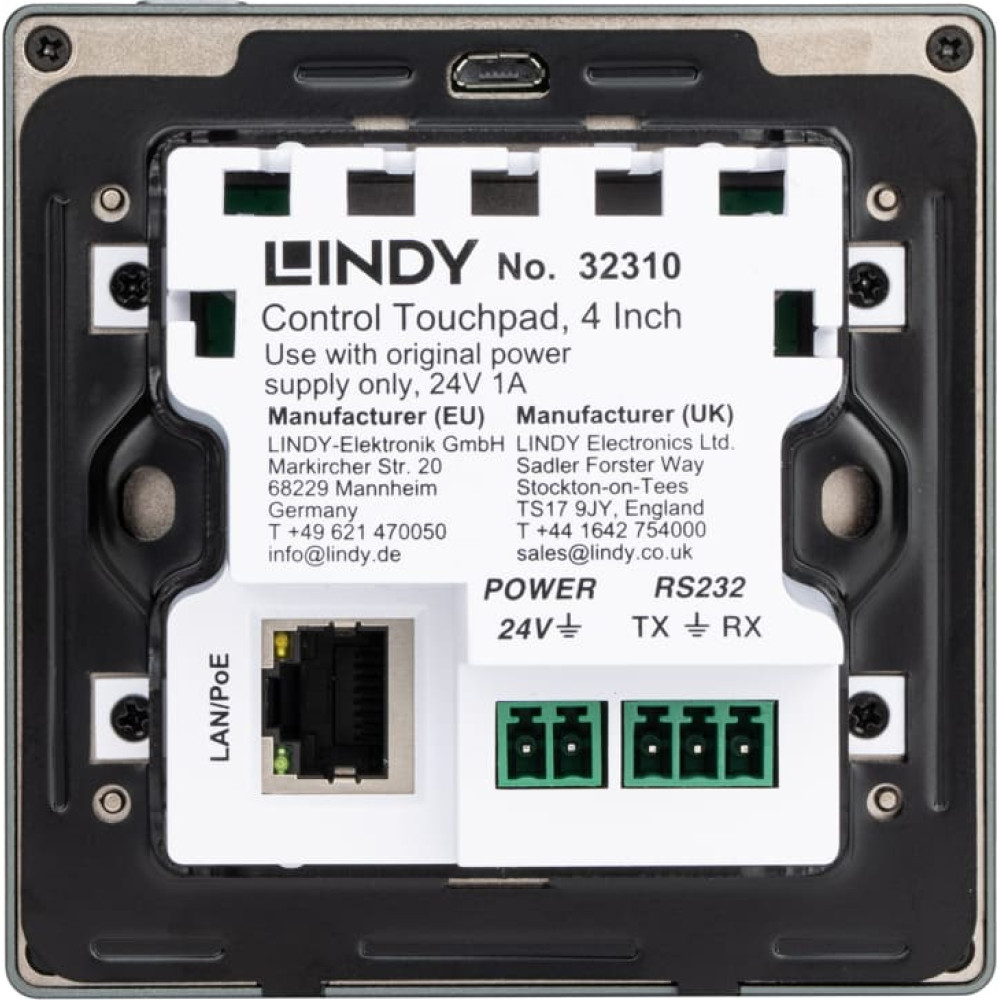

Connectors

• Control Interfaces:
  1x RJ45 POE
  1x RS232 (3 pin terminal block)
  1x Micro-USB debug port (Female)
• Power: 2 pin terminal block

Physical Properties

• Dimensions (approx.) WxDxH: 86x86x44mm (3.39x3.39x1.73in)
• Housing Material: Aluminium alloy frame
• Net Weight: 0.218kg (0.48lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 10 - 90% RH (non-condensing)
• Power Requirements: 24VDC 1A
• MTBF: >30000 hours
• Colour: dark grey frame

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 152x133x95mm (5.98x5.24x3.74in)
• Gross Weight: 0.440kg (0.97lb)
• Warranty: 2
• Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• Control Touchpad
• 3pin-3.81mm Phoenix Connector (male)

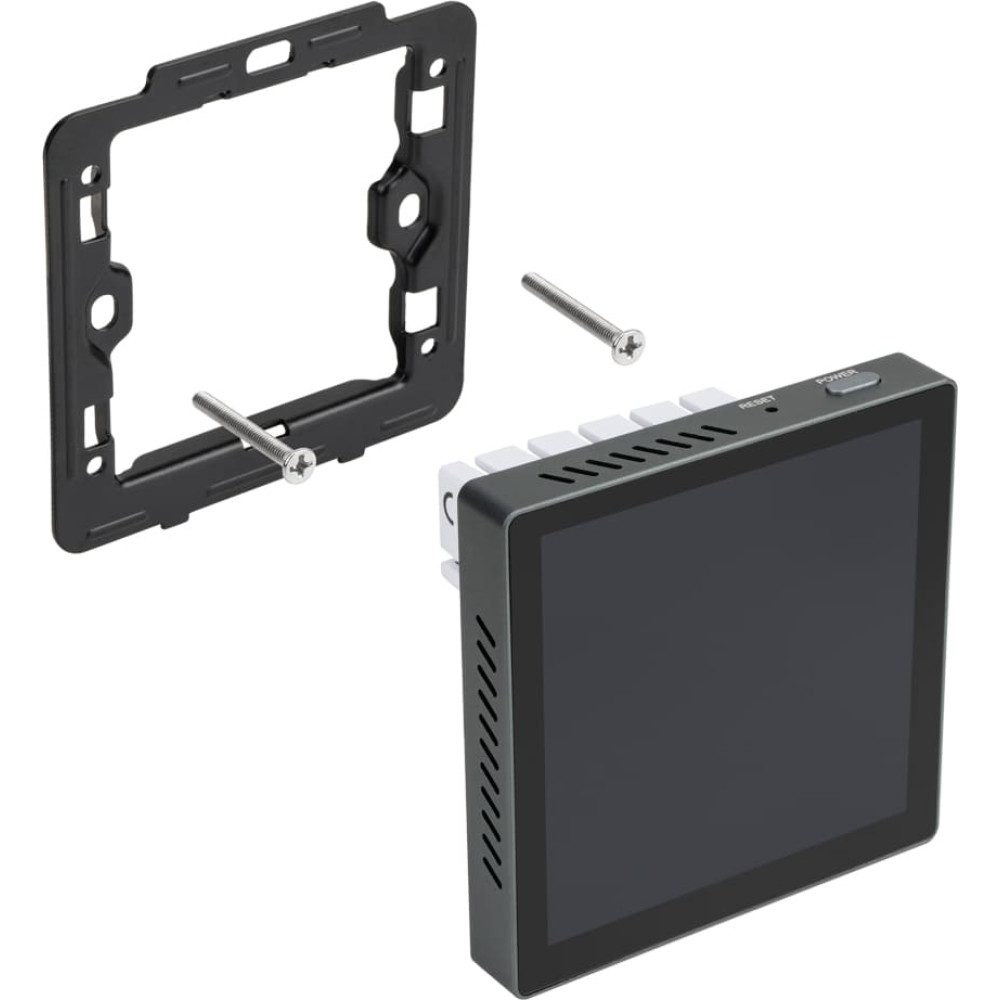

• 2x Wall Mounting Screw with wall mounting bracket
• 24V 1A Multi Country Power Supply, 2pin-3.81mm Phoenix Connector
• Quick Installation Guide

Purchasing Information

• No.: 32310
• EAN: 4002888323109
