Specifications

• Sample Rate: 44.1/48/88.2/96kHz
• Bit Depth: 24bit
• Protocol: Dante Ultimo, AES67
• Supported Bandwidth: 100Mbps
• Maximum Distance: 100m (328.08ft)

Connectors

• Input: RJ45 (Female), USB C power (Female)
• Output: XLR (Male)

Physical Properties

• Dimensions WxDxH: 127x53x26mm (5x2.08x1.02in)
• Housing Material: Metal
• Net Weight: 0.275kg (0.60lb)
• Operating Temperature: -5° - 55°C (23°F - 131°F)
• Storage Temperature: -25°C - 70°C (-13°F - 158°F)
• Power Requirements: 5VDC 3A / 802.3af PoE
• Power Consumption: 2W (max)
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 156x85x42mm (6.14x3.35x1.65in)
• Gross Weight: 0.310kg (0.68lb)
• Warranty (Years): 3
• Product Compliance: CE, UKCA, FCC, RoHS & REACH, CP65

Package Contents

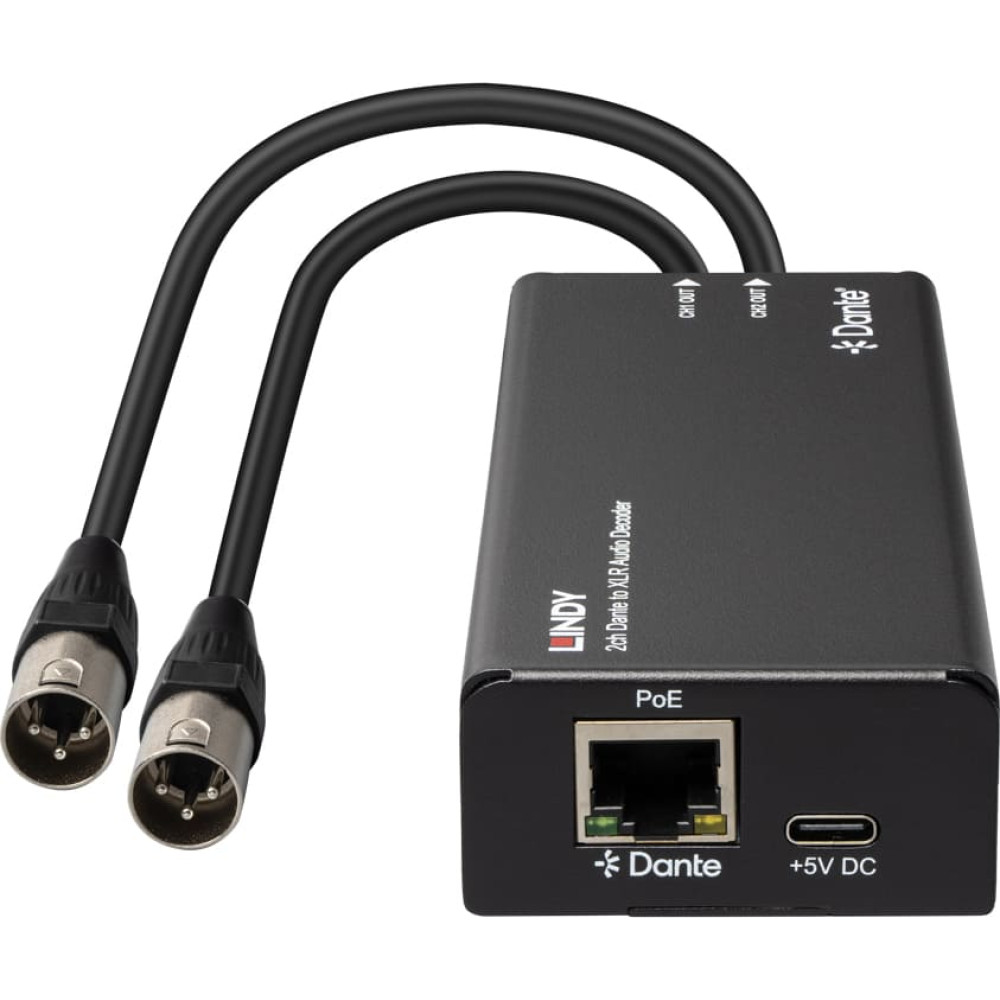

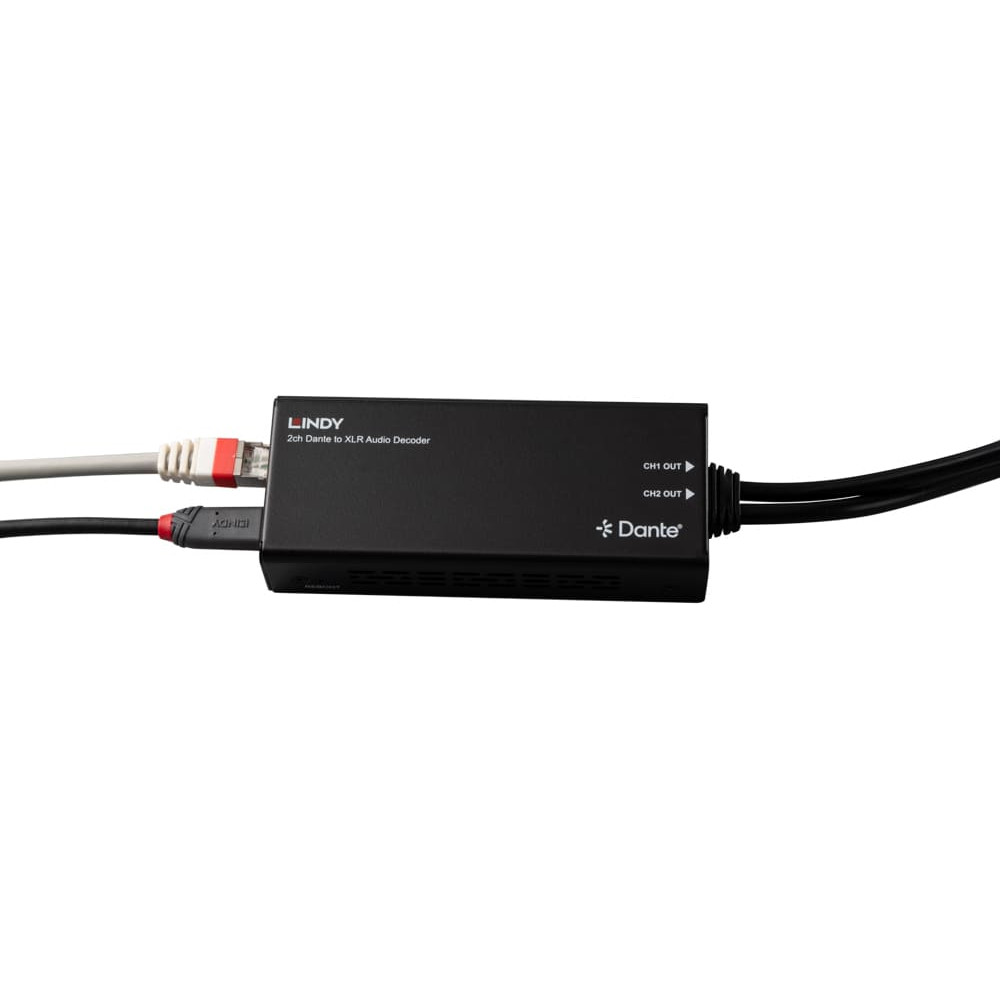

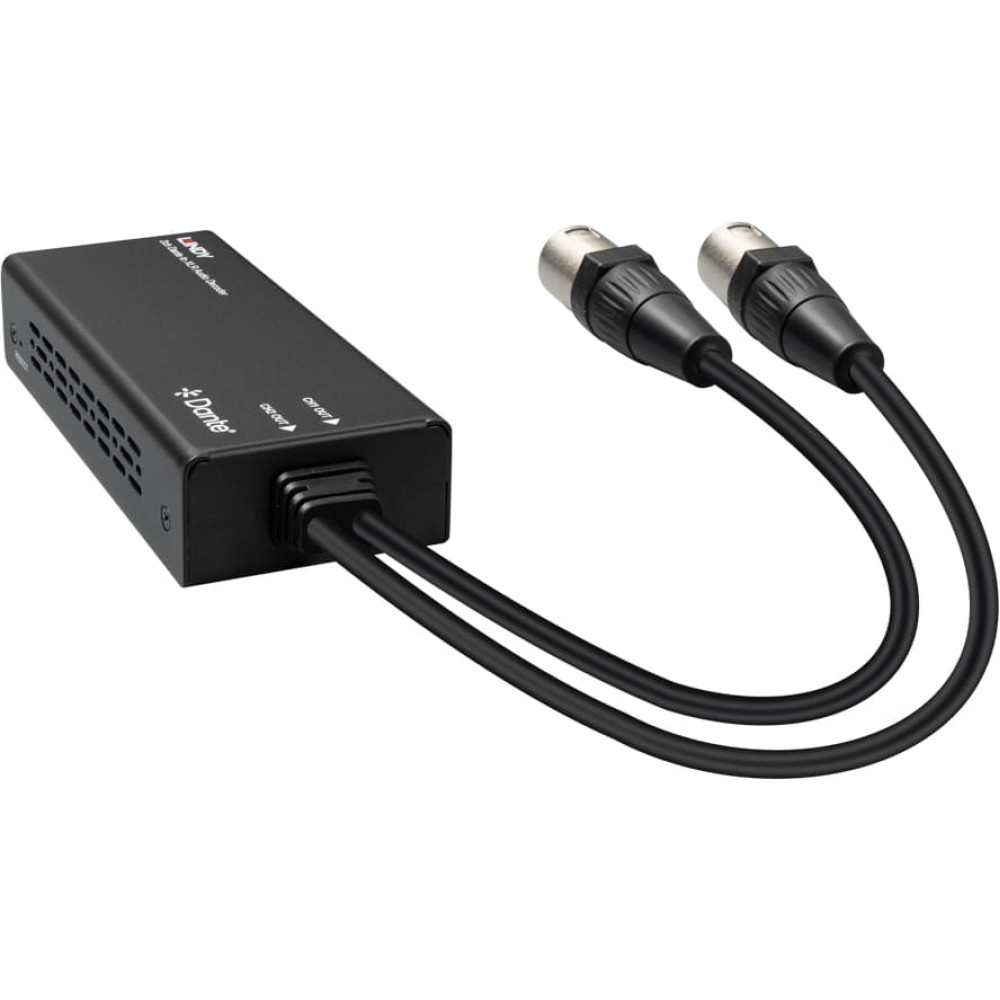

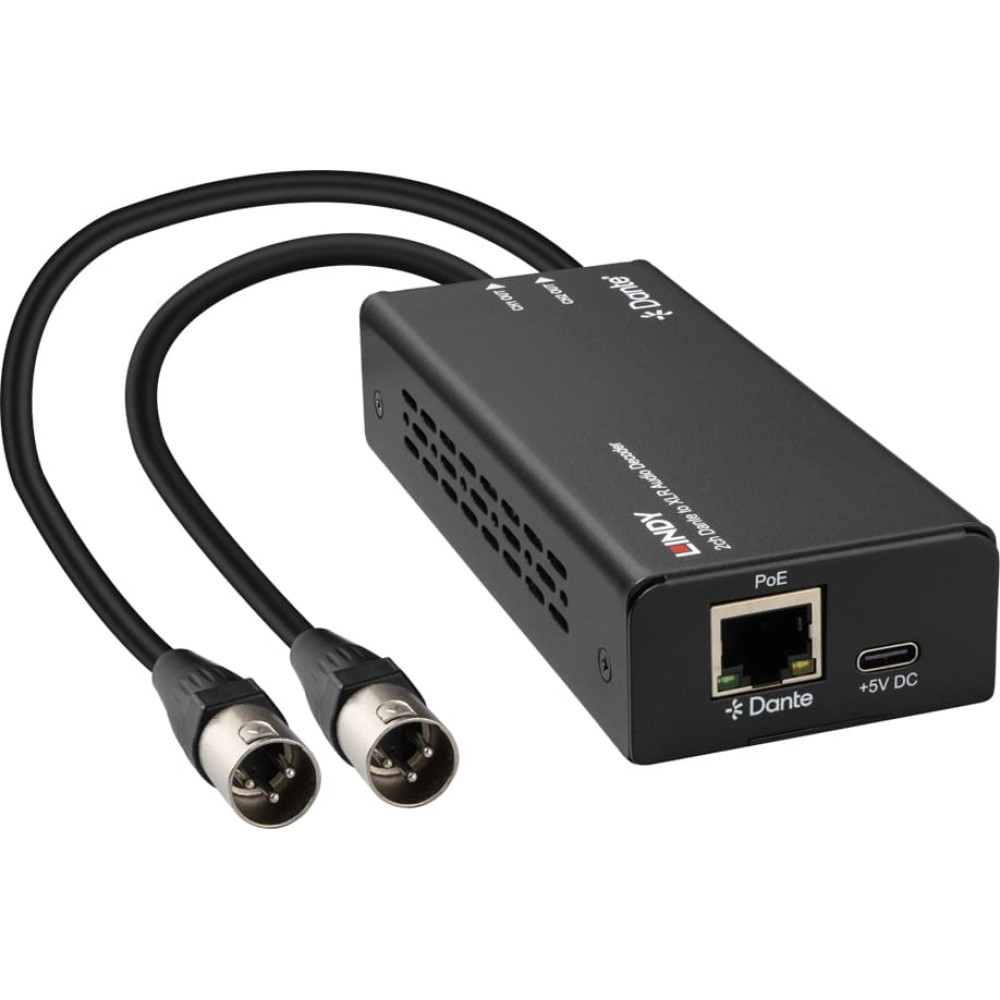

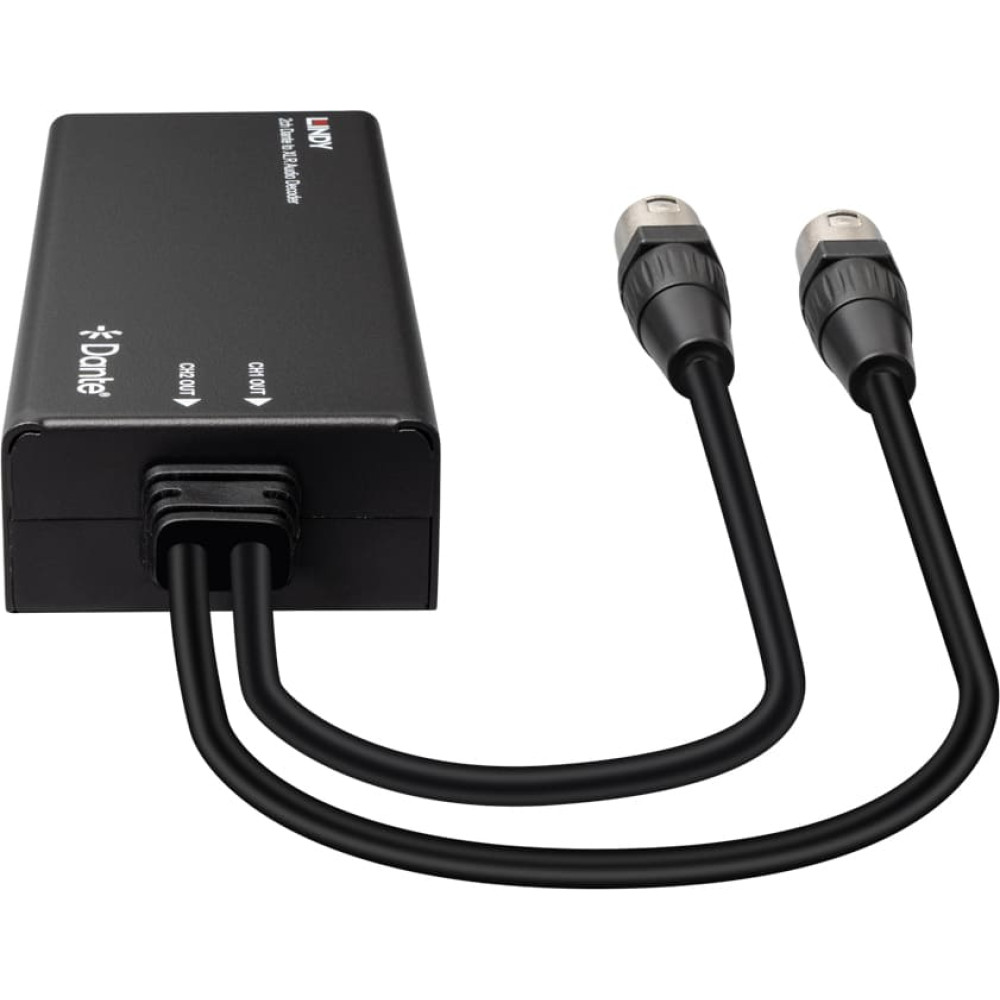

• 2ch Dante to XLR Audio Decoder
• 2x mounting ears with screws
• User Manual

Purchasing Information

• No.: 70619
• EAN: 4002888706193
