Specifications

• Sample Rate: 44.1/48kHz
• Bit Depth: 24-bit
• Protocol: Dante Ultimo, AES67
• Supported Bandwidth: 100Mbps
• Maximum Distance: 100m (328.08ft)

Connectors

• Input: HDMI® (Female), USB-C power (Female)
• Output: RJ45 (Female)

Physical Properties

• Dimensions WxDxH: 114x48x26mm (4.48x1.88x1.02in)
• Housing Material: Metal
• Net Weight: 0.170kg (0.37lb)
• Operating Temperature: -5° - 55°C (23°F - 131°F)
• Storage Temperature: -25°C - 70°C (-13°F - 158°F)
• Power Requirements: 5VDC 3A / 802.3af PoE
• Power Consumption: 1W (max)
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 156x85x42mm (6.14x3.35x1.65in)
• Gross Weight: 0.210kg (0.46lb)
• Warranty (Years): 3
• Product Compliance: CE, UKCA, FCC, RoHS & REACH, CP65

Package Contents

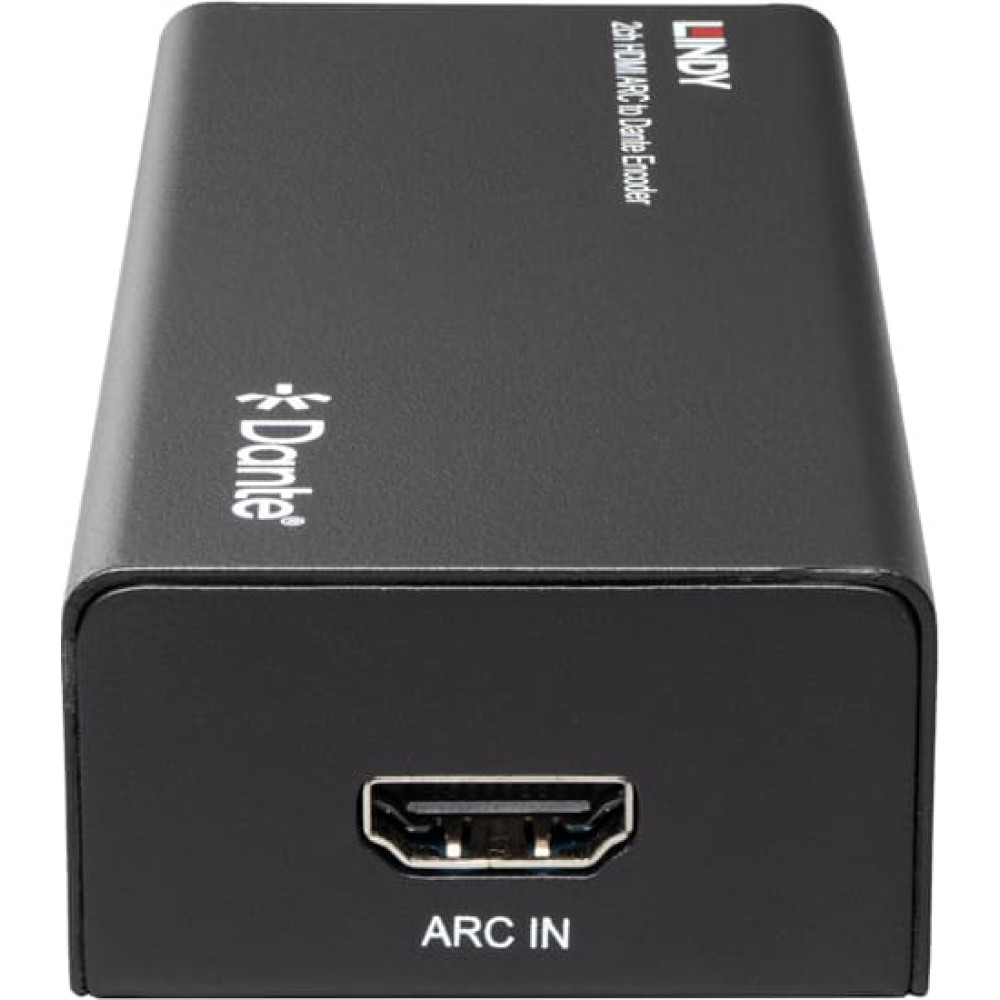

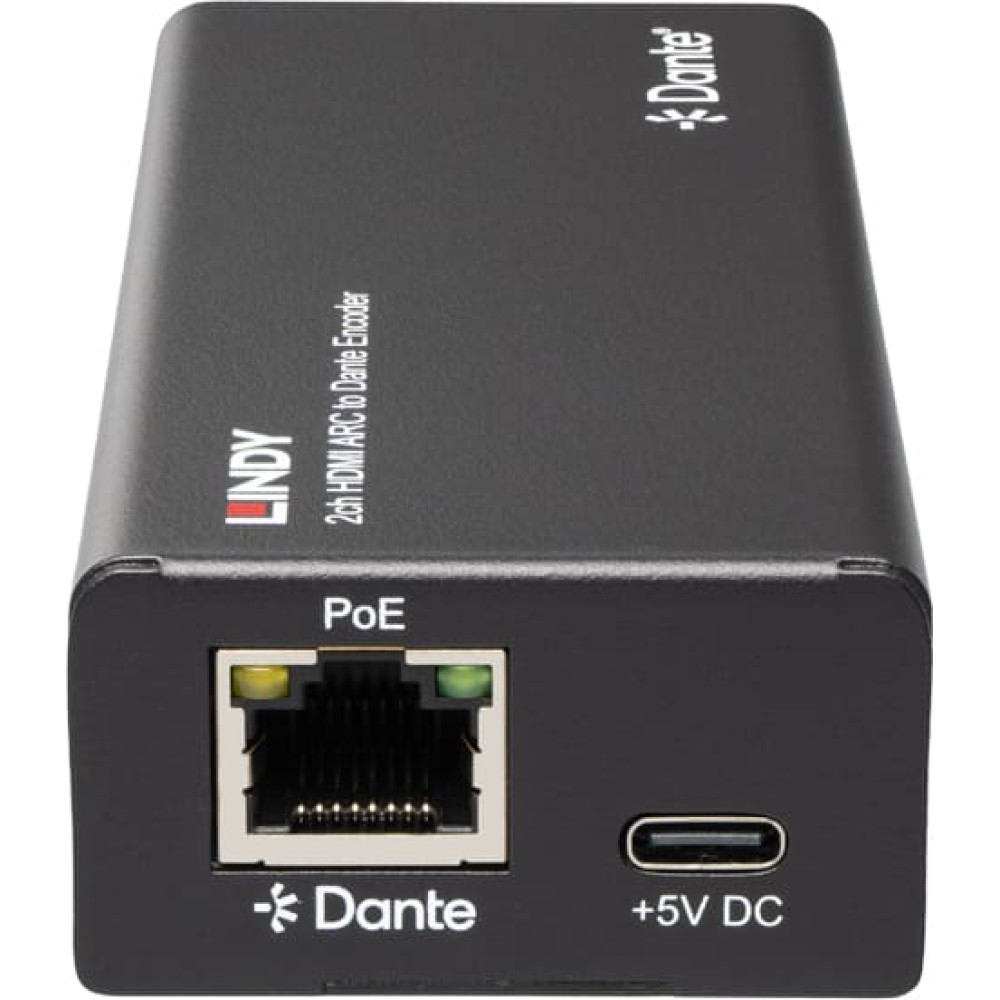

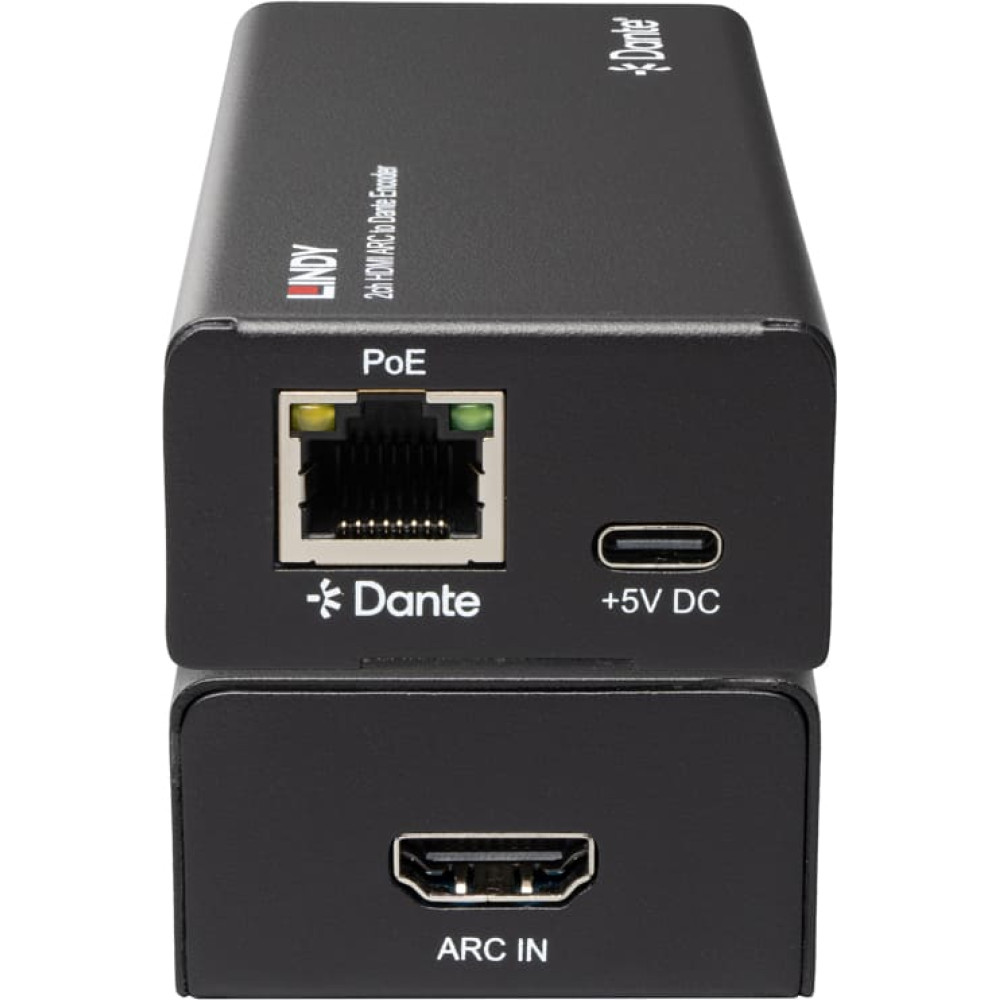

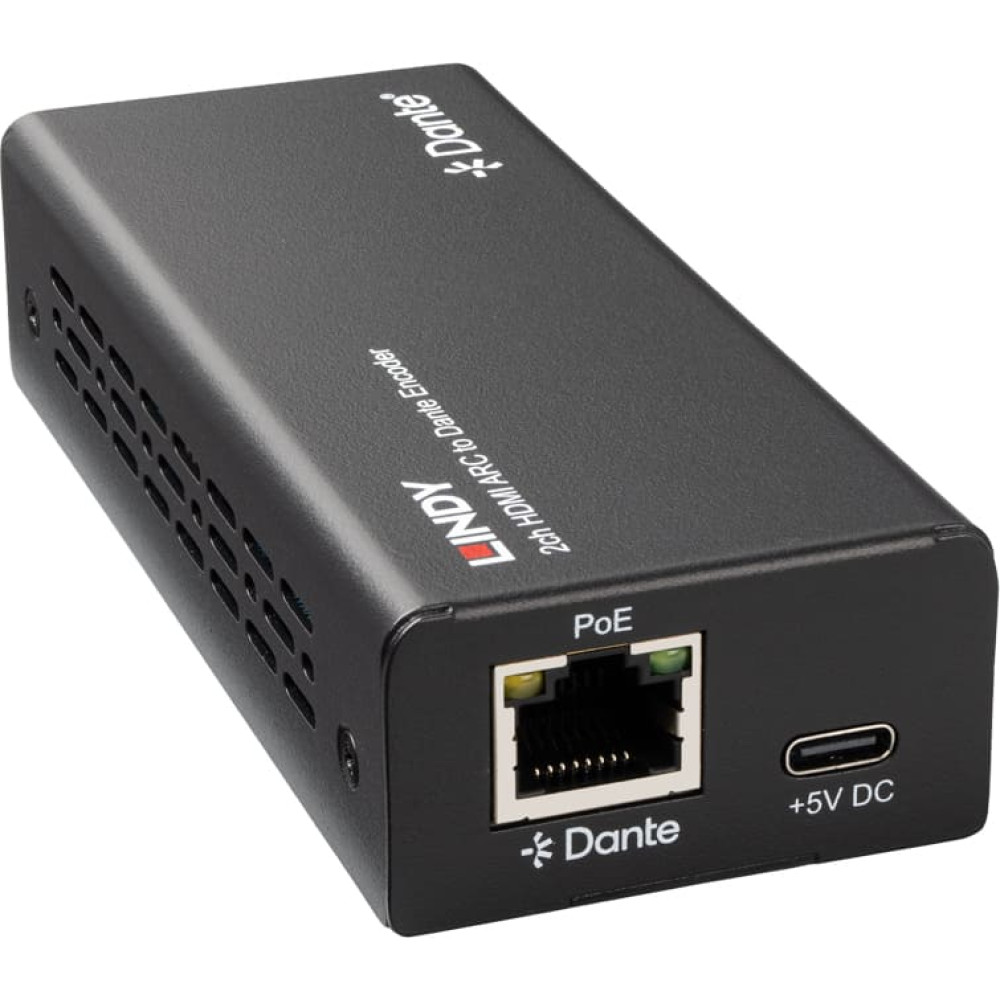

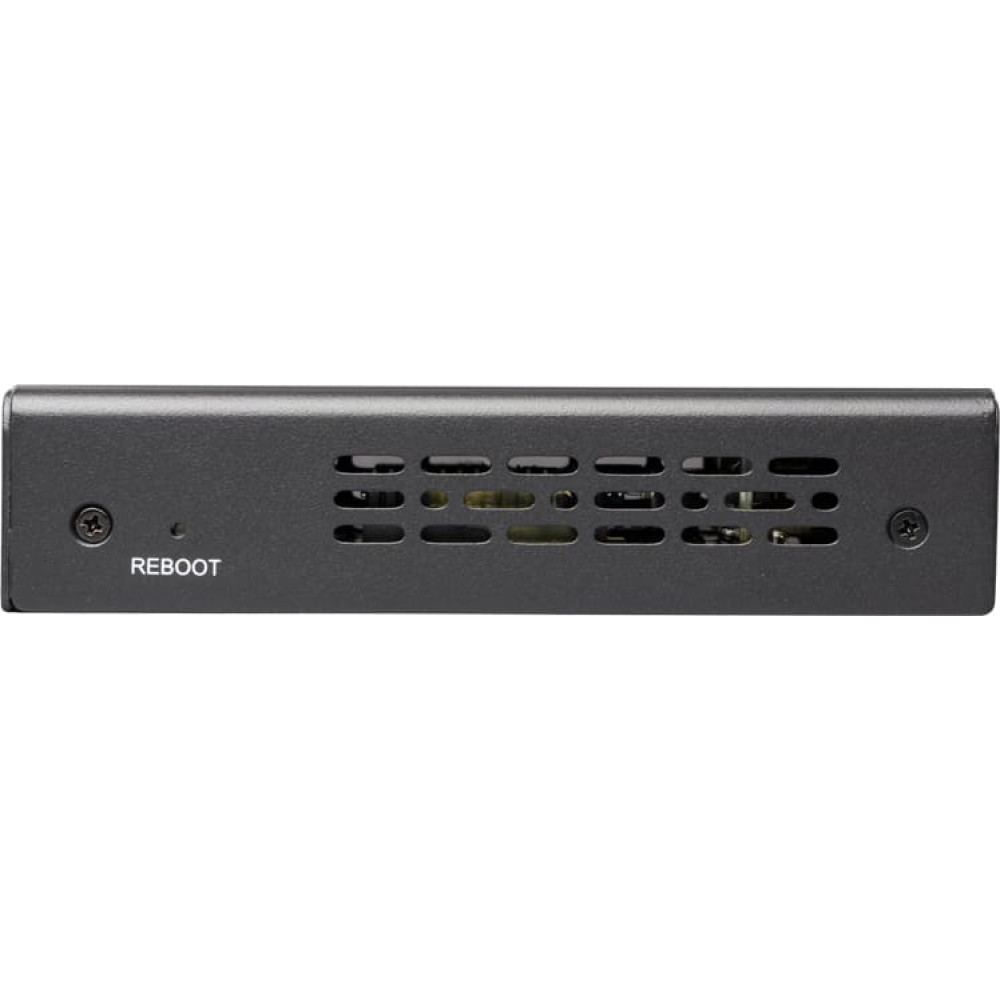

• 2ch HDMI® ARC to Dante® Encoder
• 2x mounting ears with screws
• User Manual

Purchasing Information

• No.: 70620
• EAN: 4002888706209
