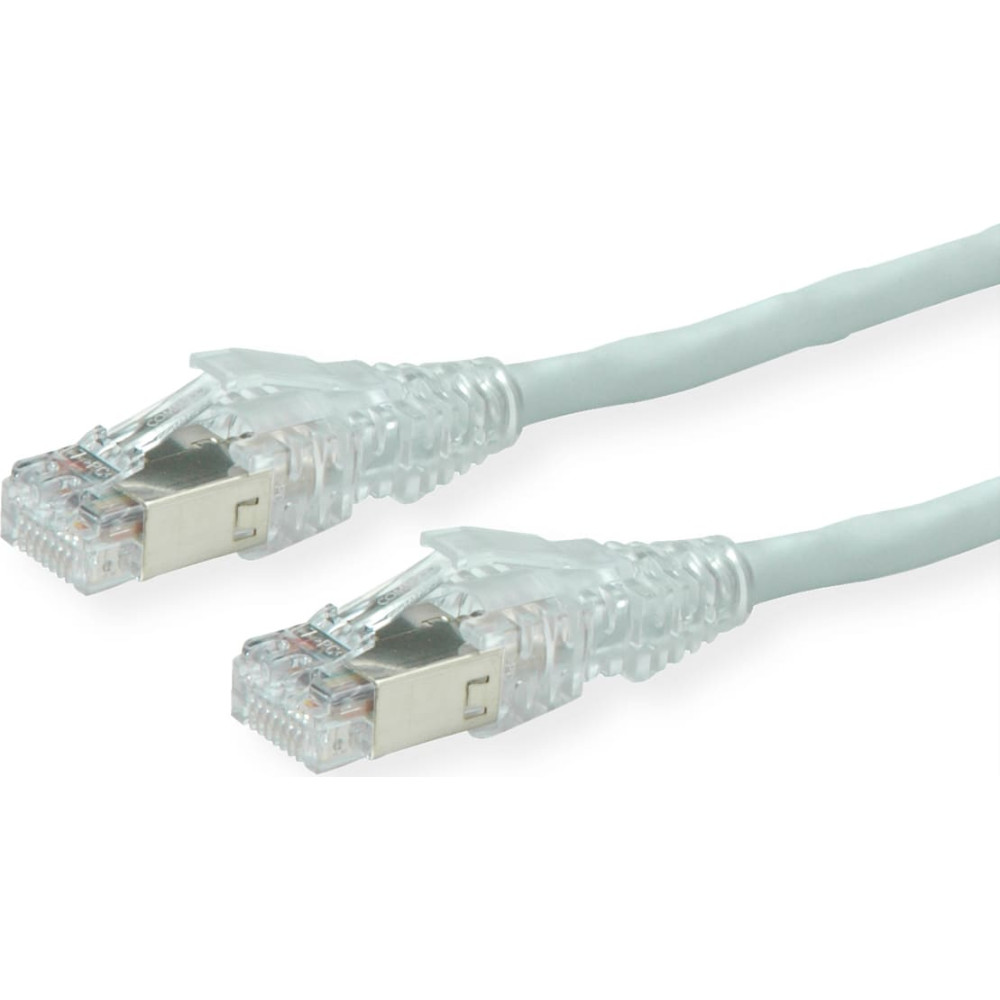

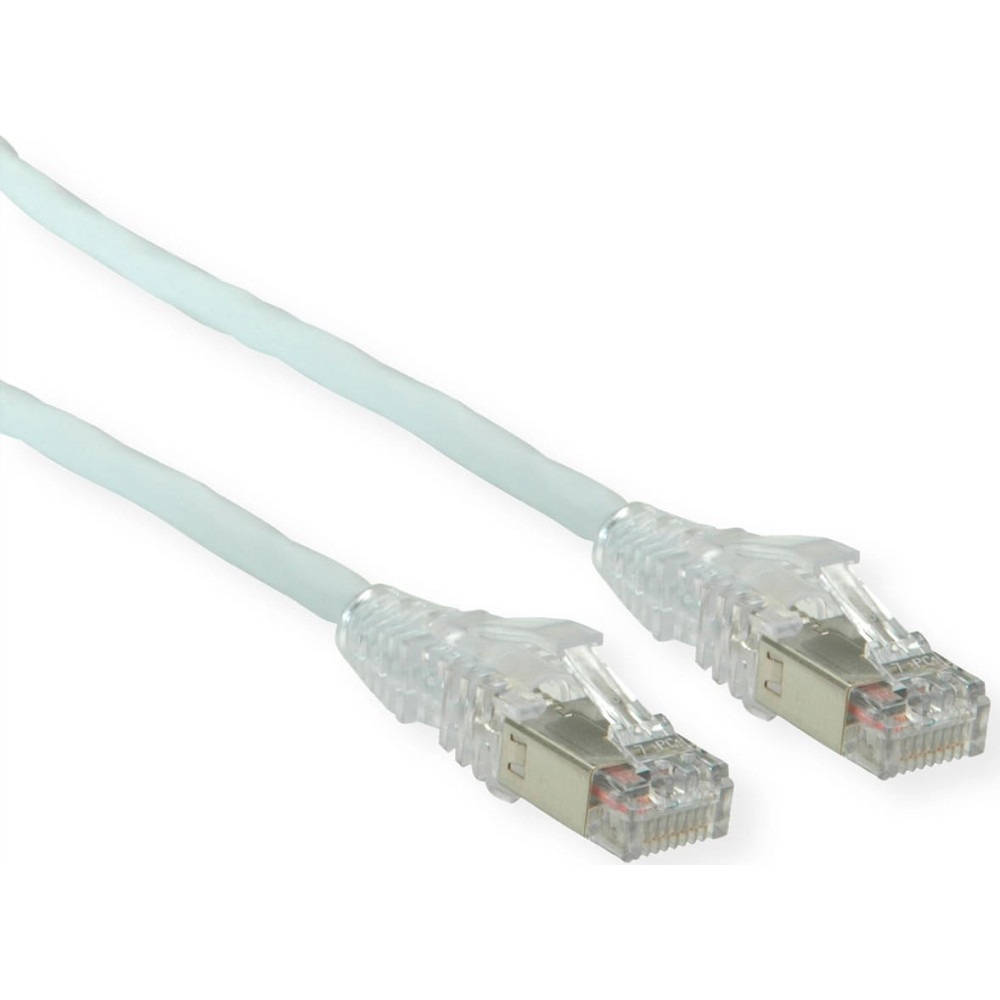

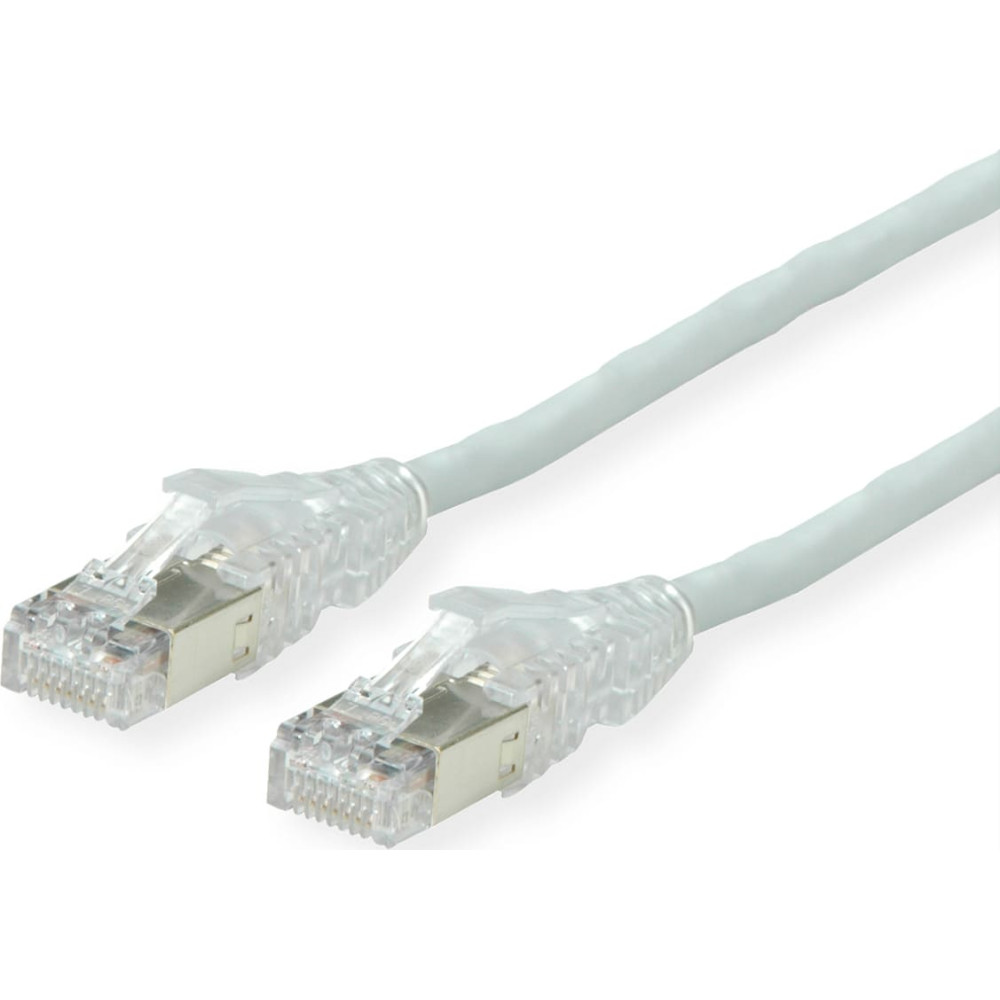

Secomp DÄTWYLER Cat.6A (Class EA) S/FTP patch cable, CU 7702 flex LSOH, AMP v2, crossover, grey, 7.5 m

SECOMP

Secomp DÄTWYLER Cat.6A (Class EA) S/FTP patch cable, CU 7702 flex LSOH, AMP v2, crossover, grey, 7.5 m

Produkta kods: 21.05.0707
Svītrkods: 7611990758159

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
anti-kink sleeve: Put-on
assignment: EIA/TIA 568A
cable lsoh: yes
colour: grey
colour (spout): transparent
conductor cross section (awg): AWG 26
conductor type: Stranded
connector type rj45: AMP v2
crossed: yes
depth of packaging (single piece): 150
external cable diameter: 6,0 mm
garums: 7.5
gross weight: 0.285
height of packaging (single piece): 20
impedance: 100 Ohm
inner conductor material: BC (Bare Copper)
locking lever: yes
manufacturer: SECOMP
package weight (single piece): 0.285
product group: Twisted Pair Cable
product type: S/FTP patch cord (PiMF)
quantity of wires: 8
shield type: S/FTP (PiMF)
side 1 connector gender: Male
side 1 connector type: RJ-45
side 2 connector gender: Male
side 2 connector type: RJ-45
transfer quality: Cat6A / Class EA
width of packaging (single piece): 150
Preces apraksts

DÄTWYLER data cable CU 7702 flex LS0H assembled on both sides with AMP v2 connectors in crossed contact assignment for use in 10 Gigabit Ethernet networks, Cat.6A, 1.2 GHz. Halogen-free, flame-retardant, low-smoke.

  • High-quality flexible patch cable with pair and overall shielding based on DÄTWYLER CU 7702 (Cat.7)
  • Assembled on both sides with Cat.6A connectors (AMP EMT connectors)
  • Kink protection and protective tab for locking pin
  • 8-wire TP copper stranded wire, pair shielding: laminated aluminium foil, overall shielding: tinned copper braid
  • Cable sheath: flame-retardant, low-smoke, halogen-free polyolefin (FRNC/LSOH)
  • Outer diameter 6.0 mm (approximate)
  • Cat.6A Class EA according to ANSI / TIA
  • Pin assignment: crossed according to EIA/TIA 568A
