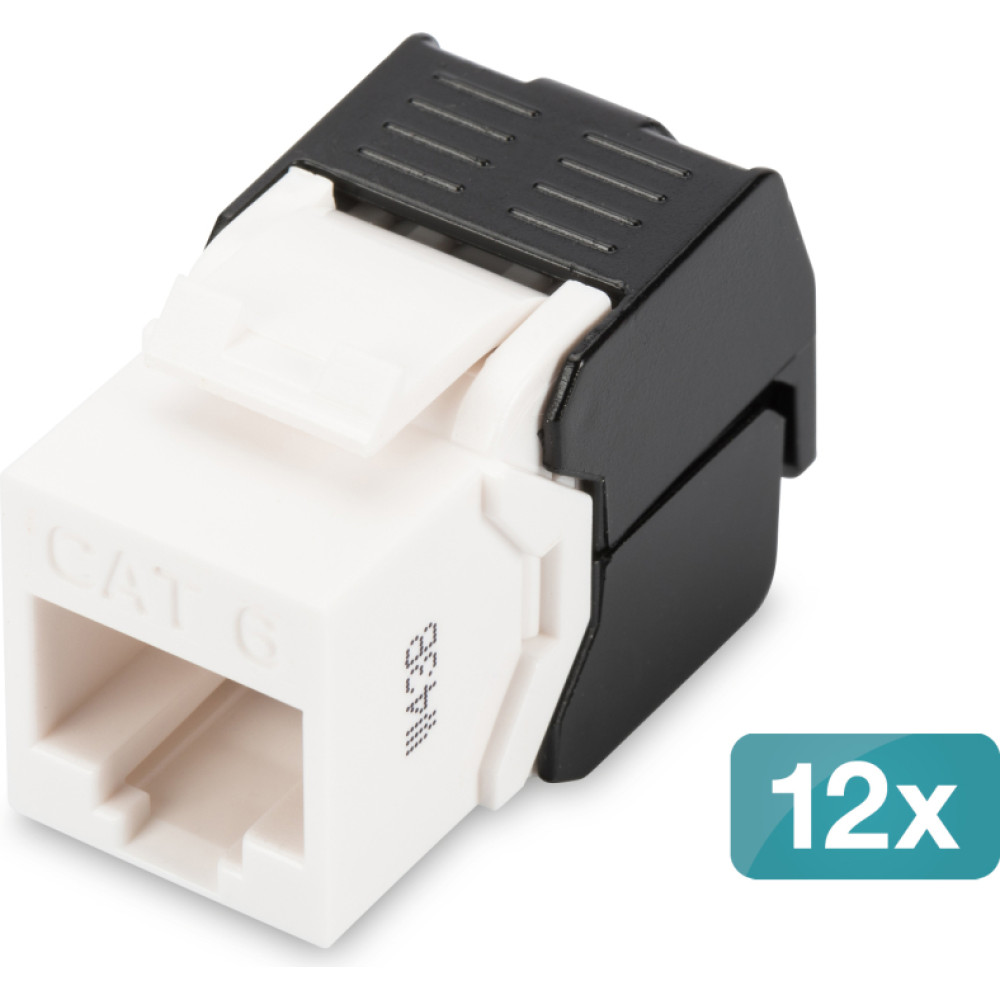

| DIGITUS CAT 6 Keystone Jack, unshielded RJ45 to LSA, Tool Free Connection, in bulk with 12 Future-oriented standards and high-end quality for your network. GHMT certified The article "DN-93603-12" from DIGITUS® is an unshielded keystone module with tool-free mounting connection, which offers you excellent performance and connection quality for your network. Its compact design allows 24 units to be installed in series in 483 mm (19") 1U panels. Category: CAT 6 Transmission property: Category 6 Application areas: Up to 250 MHz, 1GBase-T Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") rack mounting RJ45 sockets, 8P8C Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B Cable fixing by means of quick latches Tool-free mounting connection Technical features: RJ45 socket material: ABS UL 94V-0 LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze Printed circuit board: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Tensile load: 7.7 kg between socket and plug Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 In accordance with IEC 60512-5, IEC 60512-6-5 Core receptacle: 22-26 AWG solid and stranded conductors Insulation resistance: > 500 MOhm Contact resistance: < 20 milliOhms Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) 12 pcs. |
