Specifications

• AV Interface: HDMI®
• Interface Standard: 2.1
• Supported Bandwidth: 40Gbps
• Maximum Resolution: 8K60Hz 4:2:0 10-bit
• Colour Depth: up to 12bit
• HDCP Support: 2.3
• Audio formats: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X, DTS-HD® Master Audio
• Control: Push Button
• Special Features: LCD display, serial communication

Connectors

• Input: HDMI® Type A (Male)
• Output: -
• Other Connections: USB-C (Female) for FW upgrade & serial communication
• Power: USB-C (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 260x48x19mm (10.24x1.89x0.75in)
• Housing Material: Metal
• Net Weight: 0.19kg (0.42lb)
• Operating Temperature: -5°C - 55°C (23°F - 131°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 0% ~ 80% RH (non condensing)
• Power Requirements: 5V 1.5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 292x144x32mm (11.5x5.67x1.26in)
• Gross Weight: 0.37kg (0.82lb)
• Warranty (Years): 3
• Product Compliance: CE, UKCA, FCC, RoHS, REACH, CP65

Package Contents

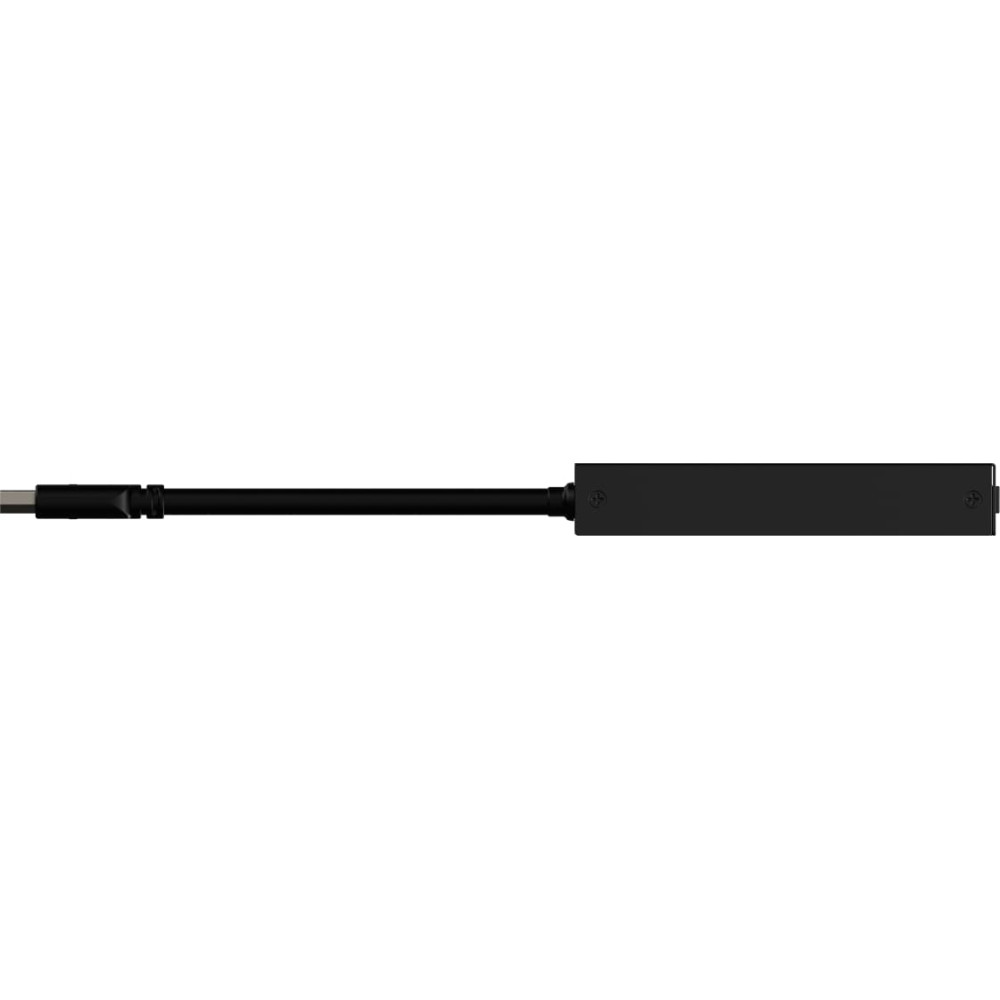

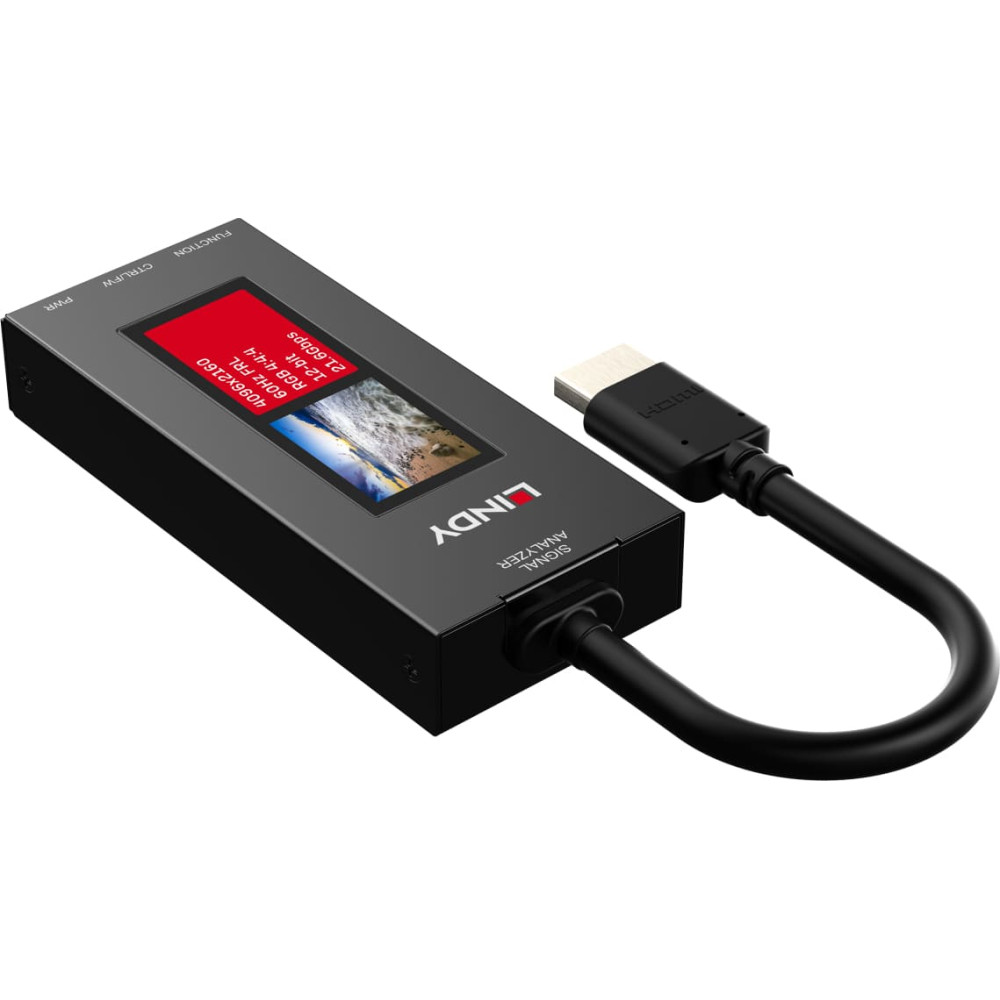

• HDMI® 8K60 Signal Analyser
• 2x USB Type C/A Cable
• Lindy Manual

Purchasing Information

• No.: 32695
• EAN: 4002888326957
