- Sends uncompressed USB-C video and data signals up to 5km over a LC duplex singlemode fibre optic cable, or up to 300m over a LC duplex multimode cable
- Supports resolutions up to 4K@60Hz 4:4:4 with HDR
- USB Type C input and output supporting DisplayPort Alternate mode and USB 2.0
- Additional USB 2.0 device ports and RS-232
- 3 year warranty

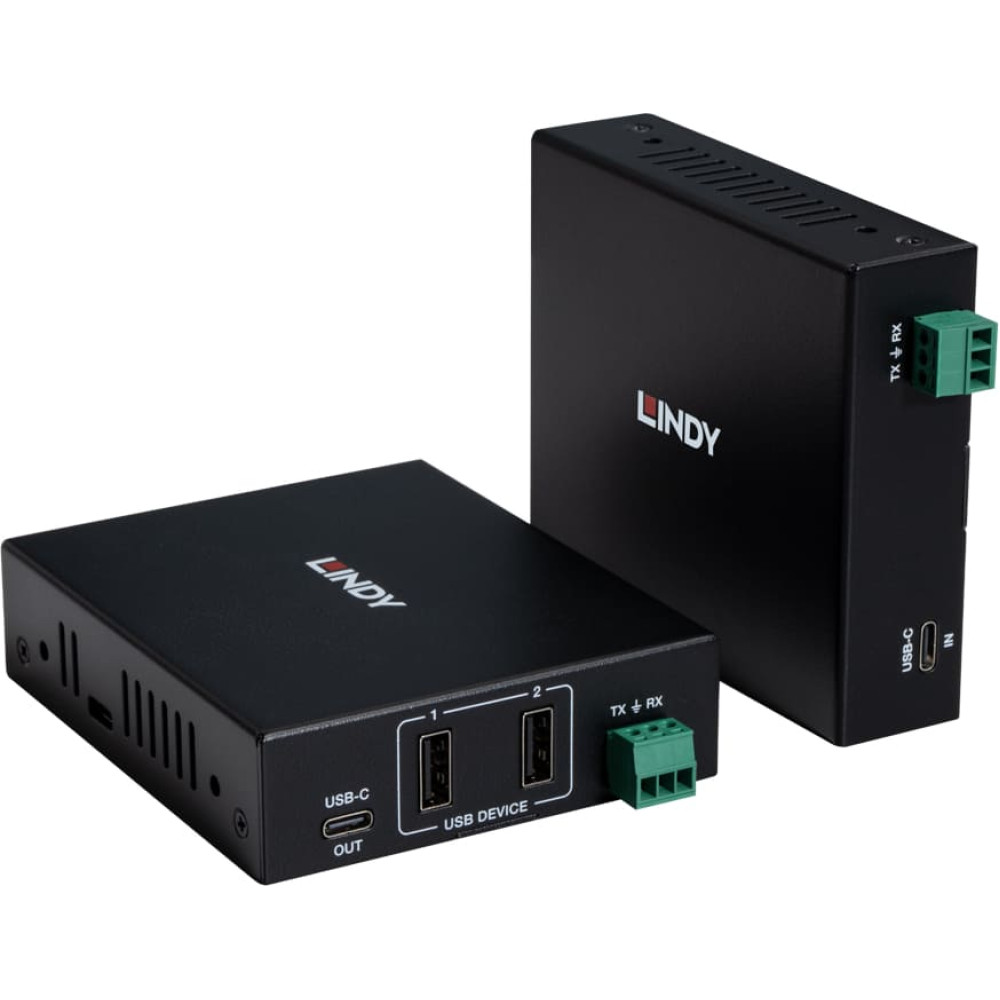

The Lindy fibre optic USB Type C Extender is a high-performance, reliable solution for extending AV and data signals over extra-long distances via fibre optic LC duplex cable.
Supported distance and cable combinations: 5km: LC Duplex OS2 singlemode 9/125um 300m: LC Duplex OM4 multimode 50/125um
Supporting uncompressed resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while HDR (High Dynamic Range) ensures enhanced brightness, greater contrast, and a much wider colour gamut.
This extender provides fully featured USB Type C input and output ports, allowing connection between sources such as a PC or laptop and touchscreens supporting DisplayPort Alternate Mode and USB 2.0 data transfer. Additional USB 2.0 device ports on the receiver, supporting up to 5V 1A each, enable applications such as KVM, collaboration, and meeting room solutions.
HDCP and EDID pass-through ensure maximum compatibility with connected devices, while RS-232 ports allow serial data transmissions to be extended as well.
The extender also supports any USB Type C DP Alt Mode to Video converter, allowing connections to HDMI® or DisplayPort screens via the receiver's output.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specifications - AV Interface: Type C
- Supported Bandwidth: 32.4Gbps
- Maximum Distance: 5km (16404.2ft) / 300m (984.24ft)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID: Pass-Through
- Supported Audio: Pass-through
- Serial Interface: RS-232 Pass-Through
- Transmission Medium: Duplex LC (50/125um or 9/125um)
- Laser Class (only for Fibre): 1
- Wavelength (only for Fibre): 1330nm
- Special Features: DisplayPort Alternate mode
Connectors - Transmitter Input: USB Type C (Female)
- Transmitter Output: Duplex LC
- Receiver Input: Duplex LC
- Receiver Output: USB Type C (Female), 2x USB Type A (Female)
- Control ports: USB Type C (Female), 3-Pin Terminal Block
- Power: 5.5/2.1mm
Physical Properties - Dimensions (approx.) WxDxH: 100x85x25.5mm (3.94x3.35x1in) per unit
- Housing Material: Metal
- Net Weight: 1.04Kg (2.29lb)
- Operating Temperature: 0degC - 40degC (32degF - 104degF)
- Storage Temperature: -20degC - 60degC (-4degF - 140degF)
- Humidity: 10-90% RH (non-condensing)
- Power Requirements: 12VDC 3A
- MTBF: >30000 hours
- Colour: black
Miscellaneous - Packaging Type: Carton box
- Packaging Dimensions: 255x157x77mm (10.04x6.18x3.03in)
- Gross Weight: 1.26Kg (2.78lb)
- Warranty (Years): 3
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Content - Transmitter unit
- Receiver unit
- 2x 3-Pin Terminal Block
- 4x mounting ears with screws
- 2x Multi-Country Power Supply
- Lindy manual
Purchasing Information - No.: 39340
- EAN: 4002888393409
|
