Sākums Kabeļi Tīkla RJ45 Tīkla RJ45 (6a kat) Lindy 2m Cat.6A S/FTP LSZH Cable, Grey 10pcs

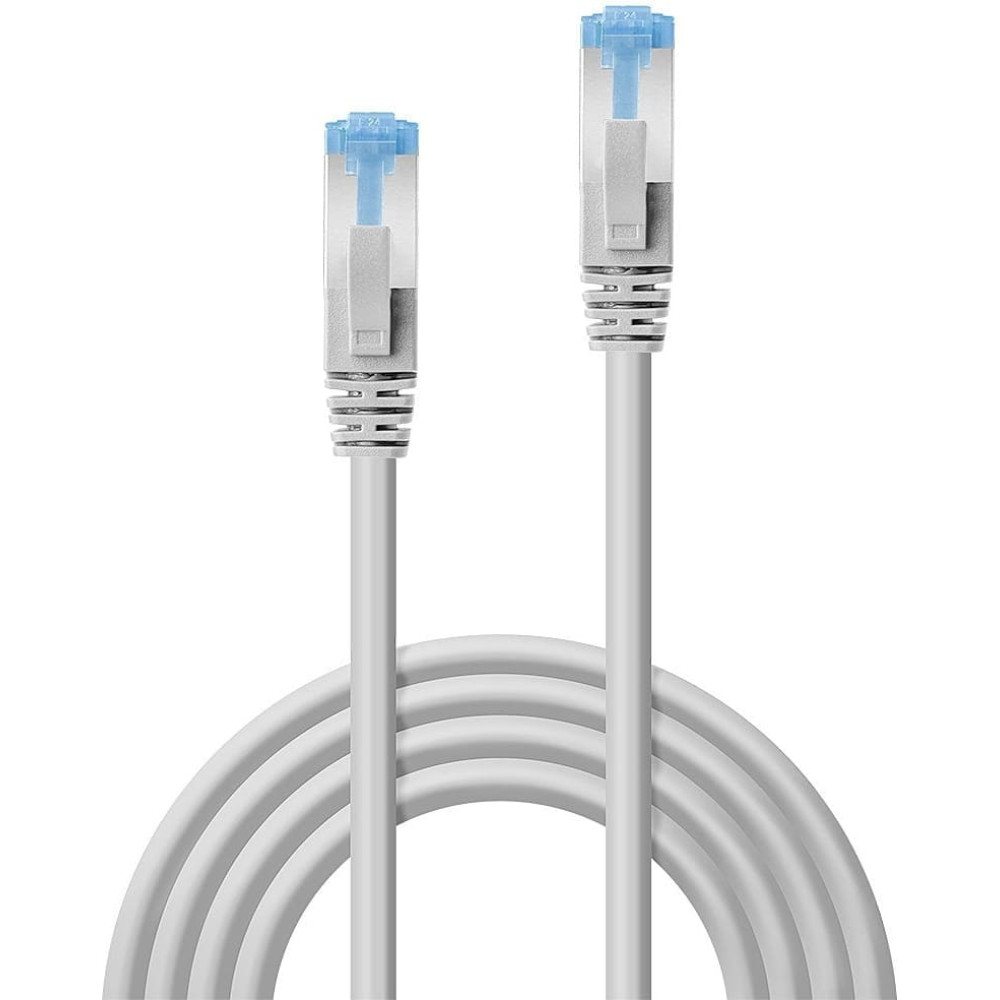

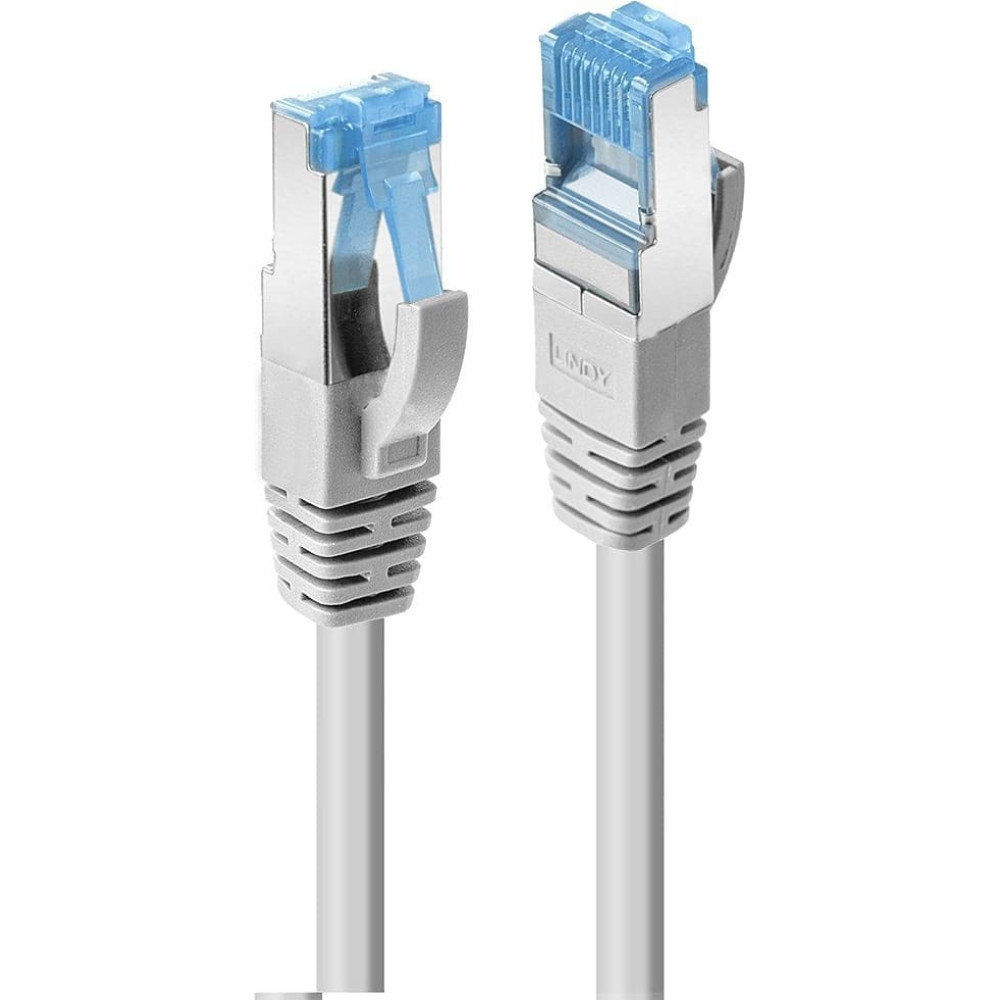

Lindy 2m Cat.6A S/FTP LSZH Cable, Grey 10pcs

LINDY

Lindy 2m Cat.6A S/FTP LSZH Cable, Grey 10pcs

Produkta kods: 47622
Svītrkods: 4002888476225

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
awg wire size: 26
bend radius (min): 6.9 cm
cable length: 2 m
cable shape: Round
cable shielding: S/FTP (S-STP)
cable standard: Cat6a
cabling technology: 10GBase-T
certification: RoHS, REACH, UL, California Proposition 65
compliance certificates: REACH, RoHS, UL
conductor material: Copper
connector 1: RJ-45
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: RJ-45
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Nickel/Gold
connector housing material: Polycarbonate (PC)
connector shield material: Aluminium
connector shielding: Yes
country of origin: CN
depth: 22.8 mm
doesn't contain: Halogen
frequency: 500 MHz
gross weight: 0.90
height: 8.3 mm
jacket material: Low smoke zero halogen (LSZH)
manual: Yes
net weight: 0.79
operating temperature (t-t): -10 - 60 °C
outer diameter: 5.8 mm
package type: Box
packaging height: 19.40
packaging lenght: 17.40
packaging width: 2.00
product colour: Grey
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 75 °C
sustainability compliance: Yes
variation of: 47621
warranty: 10
warranty period: 10 year(s)
width: 11.6 mm
Preces apraksts

Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: -
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)

Cable Construction

  • Length: 2m (6.56ft)
  • Colour: Grey
  • Type: Cat.6A
  • Jacket Diameter: 5.8mm (0.23in)
  • Jacket Material: LSZH
  • Conductor Material: Copper
  • Conductor Gauge: 26AWG
  • Shielding: -

Specifications

  • Supported Bandwidth: 500MHz
  • Nominal Attenuation: 49.3dB/100m @500MHz
  • Minimum Bend Radius: 69mm (2.72in)
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 75°C (-4°F - 167°F)

Miscellaneous

  • Packaging Type: Carton Box
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, UL, California Proposition 65

Purchasing Information

  • No.: 47622
  • EAN: 4002888476225

This product is also available in other lengths

  • 47621 - 1m (3.28ft)
  • 47622 - 2m (6.56ft)
  • 47623 - 3m (9.84ft)
