LINDY

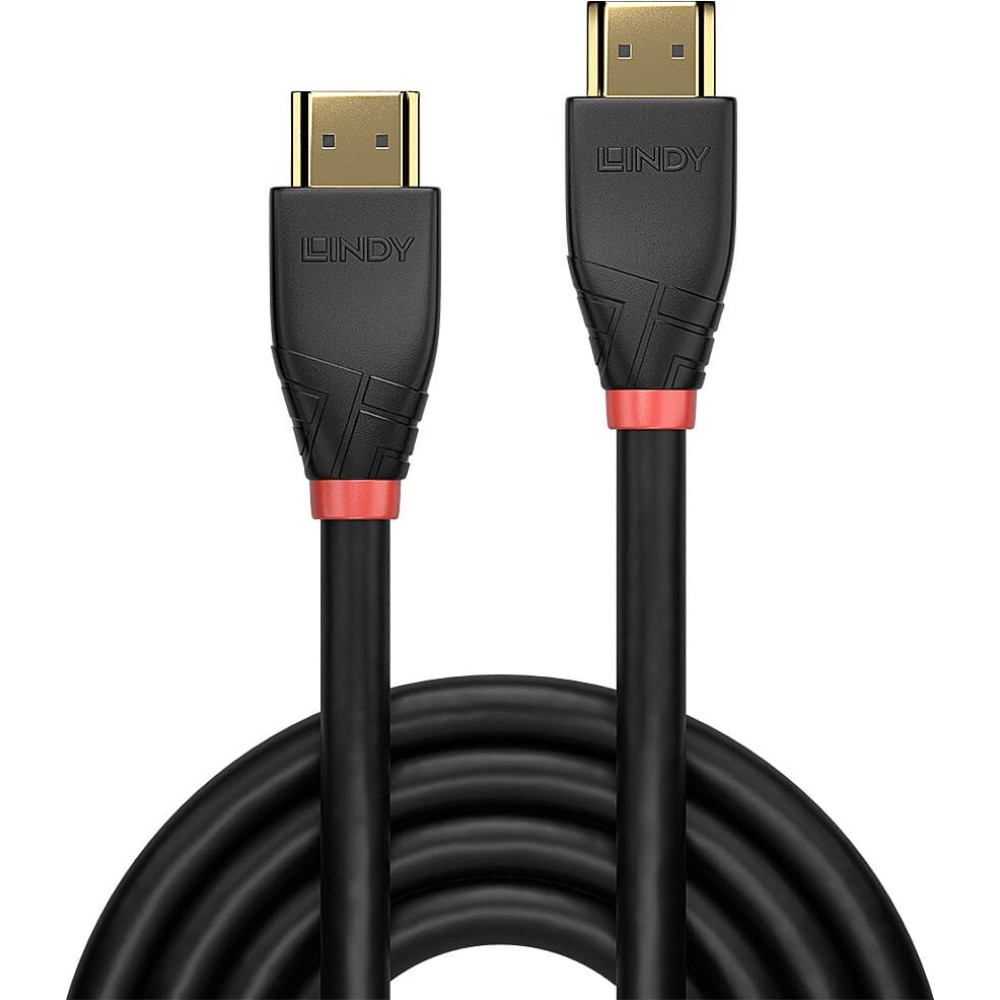

Lindy 7.5m Active HDMI 4K60 Cable

Produkta kods: 41016
Svītrkods: 4002888410168

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
audio return channel (arc): Yes
cable diameter: 8 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 7.5 m
cable material: Copper
cable type: Round cable
compliance certificates: CE, REACH, RoHS
connector 1: HDMI Type A (Standard)
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: HDMI Type A (Standard)
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
country of origin: CN
data transfer rate: 18 Gbit/s
gross weight: 0.60
hdmi ethernet channel: Yes
hdmi version: 2.0
maximum refresh rate: 60 Hz
net weight: 0.80
operating temperature (t-t): -20 - 80 °C
package type: Polybag
packaging height: 38.50
packaging lenght: 37.40
packaging width: 4.50
product colour: Black
quantity per pack: 1 pc(s)
shield material: Aluminium
storage temperature (t-t): -10 - 60 °C
supported graphics resolutions: 4096 x 2160
warranty: 2

Preces apraksts

Connectors

  • Connector A: HDMI® Type A Male
  • Connector B: HDMI® Type A Male
  • Housing Material: ABS
  • Connector Plating:24K Gold Flash
  • Pin Construction: Phosphor Bronze
  • Pin Plating: 24K Gold 3µm
  • Dimensions WxDxH (approx.): 21.68x43x13.22mm (0.85x1.69x0.52in)

Cable Construction

  • Length: 7.5m (24.61ft)
  • Standard: 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 8mm (0.31in)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 26AWG
  • Shielding: Aluminium Foil Mylar, 100% / Aluminium Alloy Braiding, 70%

Specifications

  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
  • Nominal Attenuation:
    • 300KHz~825MHz <5dB
    • 2.475GHz~4.125GHz 12dB-20dB
  • Minimum Bend Radius: 100mm (3.94in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -10°C - 60°C (14°F - 140°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS, REACH & UL

Purchasing Information

  • No: 41016
  • EAN: 4002888410168

This product is also available in other lengths

  • 41071 - 10m (32.81ft)
  • 41072 - 15m (49.21ft)
  • 41073 - 20m (65.62ft)
  • 41074 - 25m (82ft)
  • 41075 - 30m (98.42ft)
