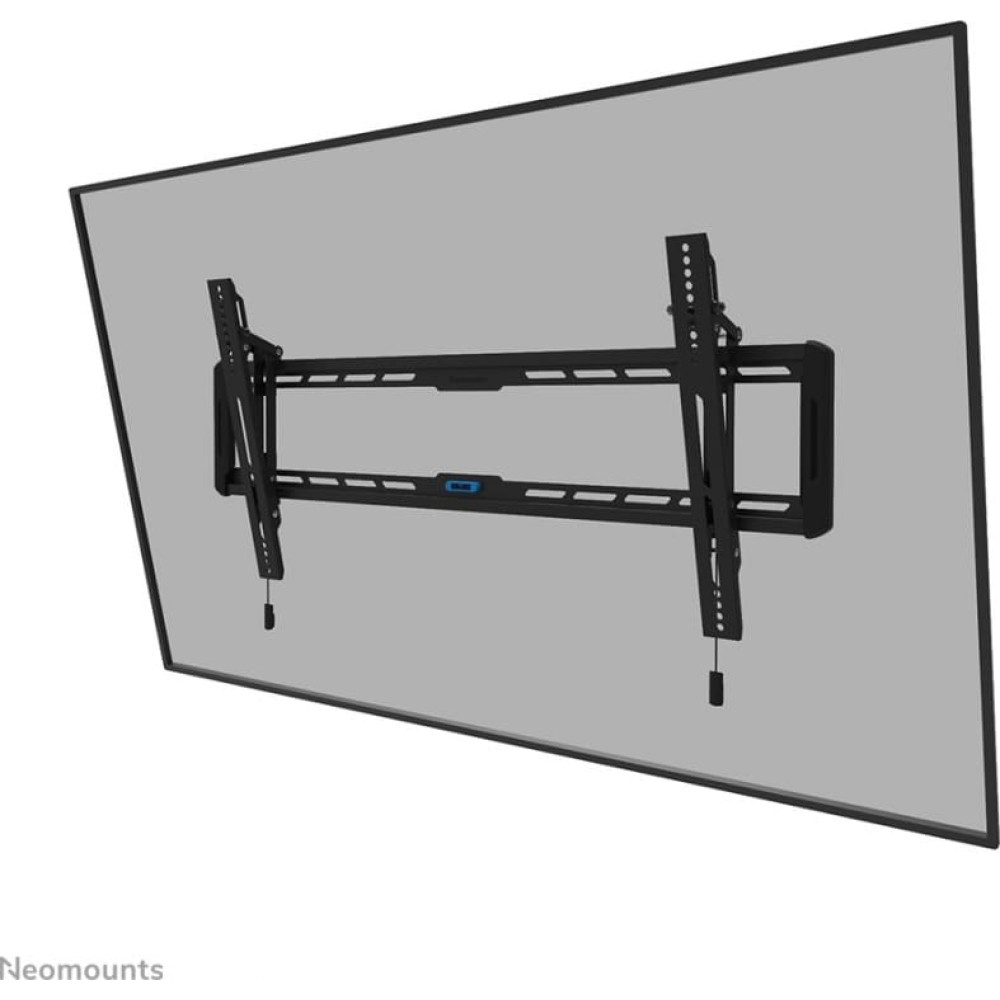

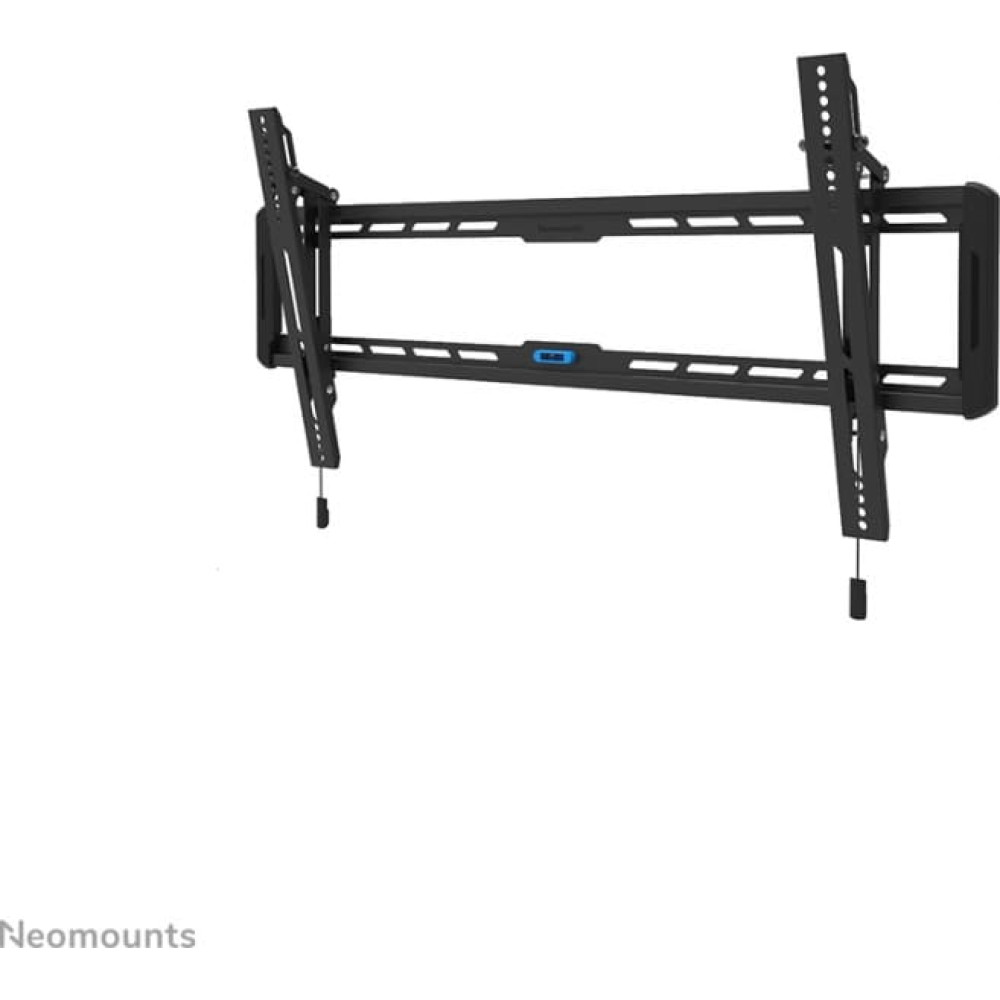

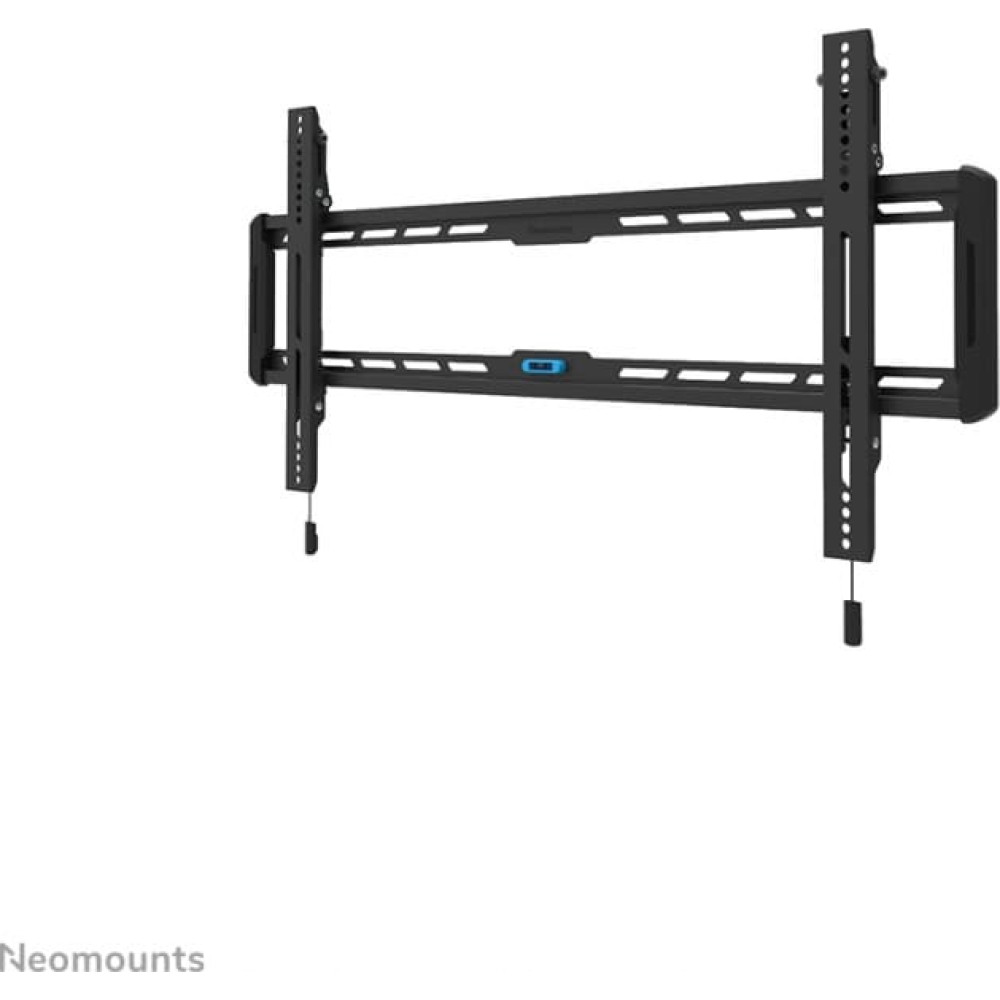

The Neomounts by Newstar WL35-550BL18 is a tiltable wall mount for flat screens up to 86" with a maximum weight capacity of 70 kg. The versatile tilt (12°) technology allows you to create the optimum viewing angle.
The WL35-550BL18 has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400 mm.
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.
| | Maximum weight capacity | 70 kg | | Maximum screen size | 2.18 m (86") | | Mounting type | Wall | | Minimum VESA mount | 100 x 100 mm | | Maximum VESA mount | 800 x 400 mm | | Minimum screen size | 109.2 cm (43") | | Panel mounting interface | 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 300,300 x 100,300 x 200,350 x 350,400 x 200,400 x 400,400 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400 | | Number of displays supported | 1 | | Height adjustment | N | | Tilt angle range | 0 - 12° | | Distance to the wall (max) | 3.3 cm | | Product colour | Black | | Quantity per pack | 1 pc(s) | | Width | 935 mm | | Depth | 36 mm | | Height | 425 mm | | Package width | 958 mm | | Package depth | 208 mm | | Package height | 44 mm | | Master (outer) case width | 973 mm | | Master (outer) case length | 285 mm | | Master (outer) case height | 230 mm | | Master (outer) case net weight | 14 kg | | Products per master (outer) case | 6 pc(s) | | Harmonized System (HS) code | 7326909890 | | Products per pallet (EU) | 84 pc(s) | | Country of origin | China | | Package net weight | 3.2 kg |
|
|
