Sākums Datu slēdži / HUB KVM datu slēdži Lindy 4 Port HDMI 4K60, USB 3.0 & Audio KVM Switch

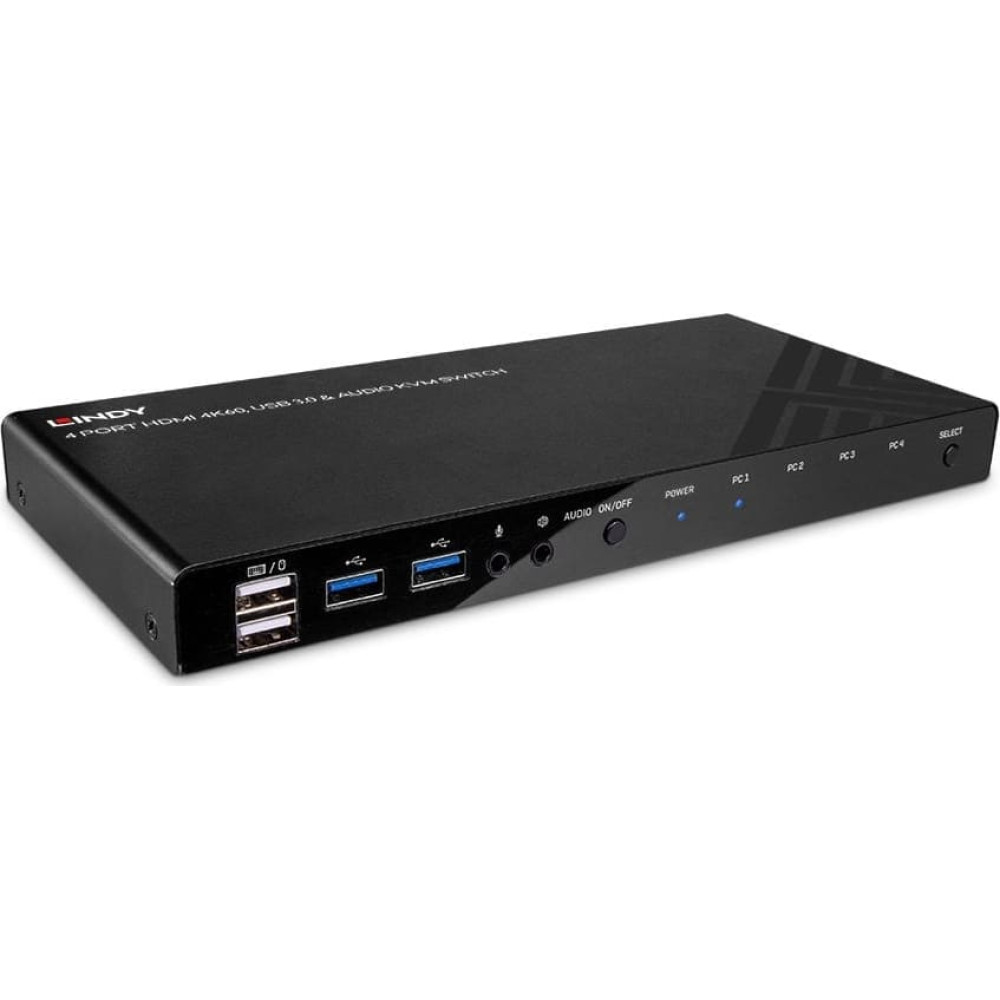

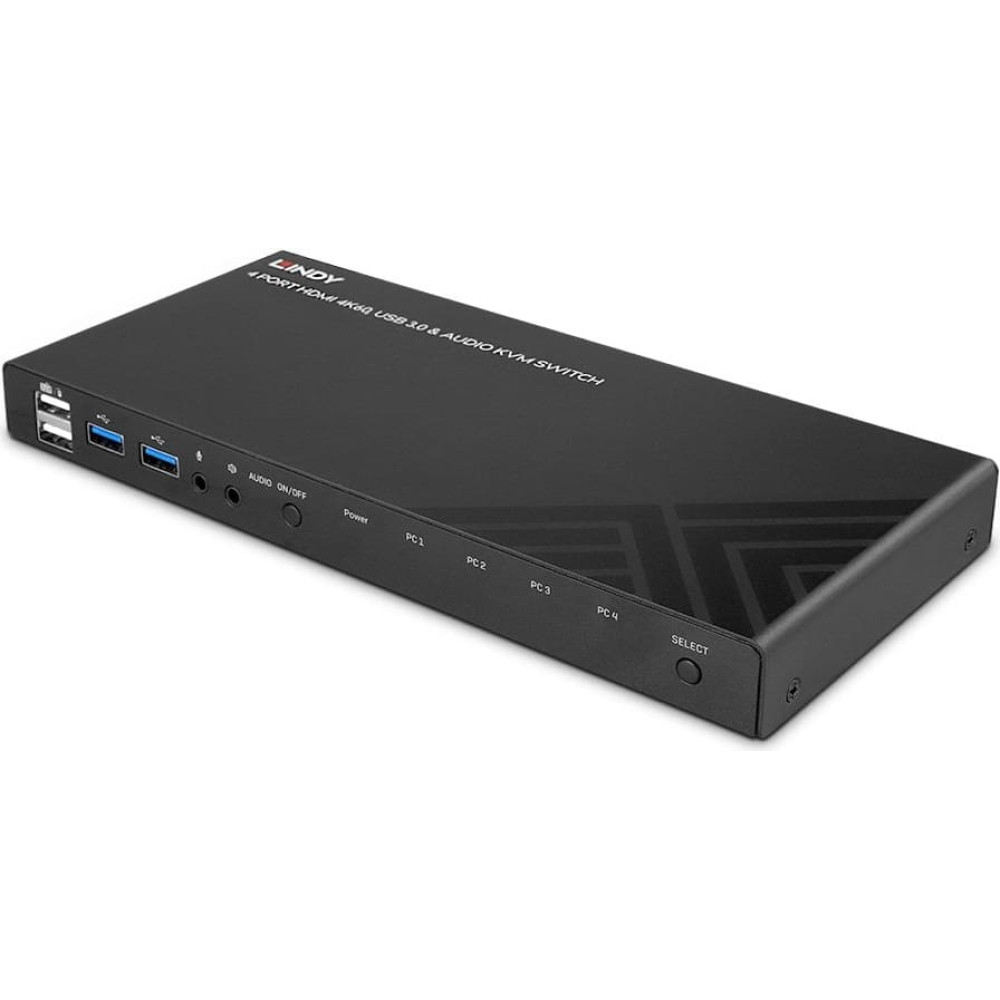

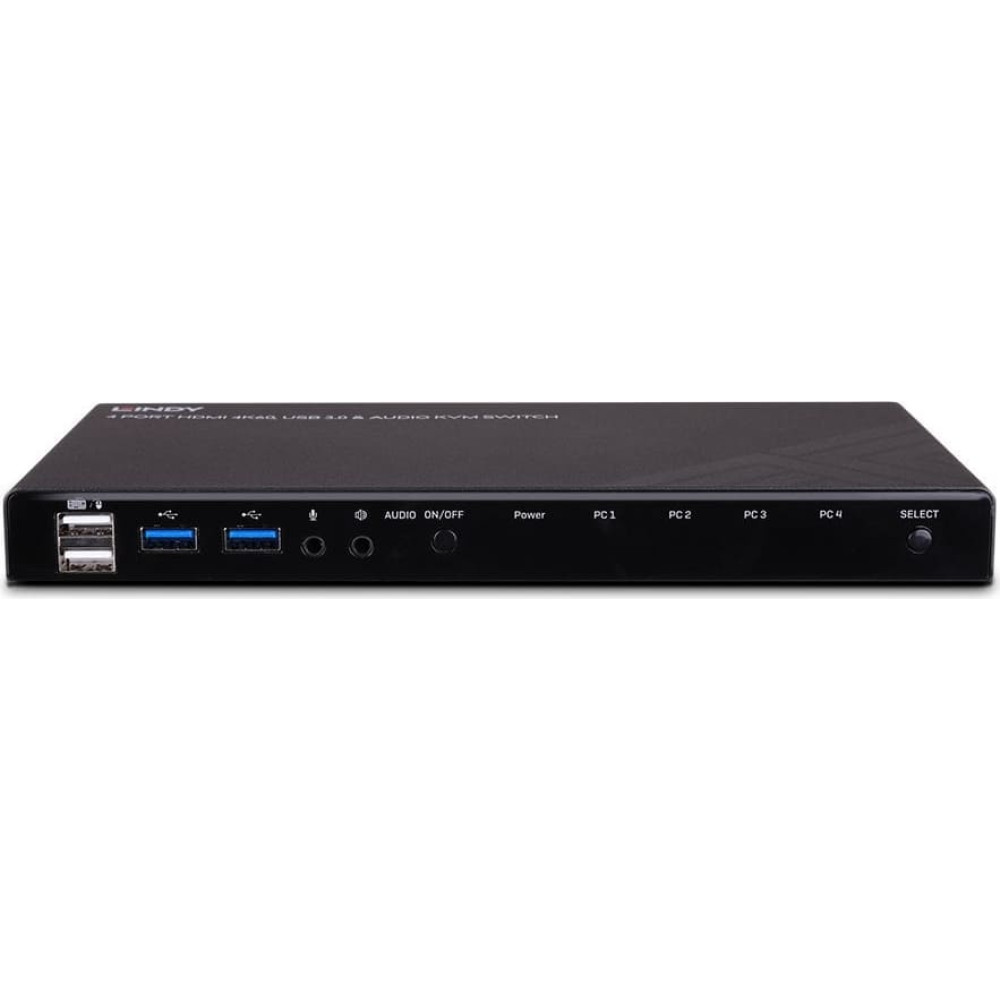

Lindy 4 Port HDMI 4K60, USB 3.0 & Audio KVM Switch

LINDY

Lindy 4 Port HDMI 4K60, USB 3.0 & Audio KVM Switch

Produkta kods: 39313
Svītrkods: 4002888393133

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
ac adapter included: Yes
audio channels: 2.0
audio connections: Yes
built-in display: No
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/58/9e/c7/64/64c79e5806dc2df550b17c34/CE_39313.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/58/9e/c7/64/64c79e5806dc2df550b17c34/CE_39313.pdf
compliance certificates: Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
console hdmi ports quantity: 1
console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
console usb ports quantity: 4
country of origin: CN
dc-in jack: Yes
depth: 108 mm
gross weight: 0.98
hd type: 4K Ultra HD
hdcp: Yes
hdcp version: 2.2
hdmi ports quantity: 5
hdmi version: 2.0
headphone outputs: 1
height: 23 mm
hot keys: Yes
housing material: Metal
input current: 3 A
input voltage: 5 V
keyboard port type: USB
led indicators: Yes
manual: Yes
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/4d/1a/34/63/63341a4dcfa459f713864e11/LINDY_39313_MAN_0922.pdf
maximum resolution: 4096 x 2160 pixels
mouse port type: USB
net weight: 0.71
number of computers controlled: 4
number of microphone inputs: 1
operating relative humidity (h-h): 5 - 80%
operating temperature (t-t): 0 - 50 °C
package depth: 248 mm
package height: 55 mm
package type: Box
package weight: 980 g
package width: 292 mm
packaging height: 5.00
packaging lenght: 29.00
packaging width: 24.00
power source: DC
product colour: Black
push button: Yes
rack mounting: No
storage relative humidity (h-h): 5 - 80%
storage temperature (t-t): -10 - 60 °C
sustainability compliance: Yes
usb 3.2 gen 1 (3.1 gen 1) type-b ports quantity: 4
usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: 2
usb connector type: USB Type-A, USB Type-B
video bandwidth: 60 Hz
video port type: HDMI
warranty: 2
weight: 710 g
width: 231 mm
Preces apraksts
Specifications
  • AV Interface: HDMI®
  • Console Interfaces: USB
  • Interface Standard: HDMI® 2.0, USB 3.0
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8Bit
  • HDCP Support: 2.2
  • Supported Audio: Analogue Stereo
  • Separate Audio Ports: 2 x 3.5mm (Female)
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 4
  • Cascadable: -
  • Switching Method: Push Button, Hotkey Switching
  • 19" Rack Mountable: -
  • Special Features: USB 3.0 device ports, Audio ports with On/Off button, Active LED Indicators
Connectors
  • Console Interfaces: HDMI® Type A (Female), 4 x USB Type A (Female), 2 x 3.5mm (Female)
  • PC/Server Interfaces: 4 x HDMI® Type A (Female), 4 x USB 3.0 Type B (Female)
  • Other Interfaces: -
  • Power: 3.5/1.35mm DC socket
Physical Properties
  • Dimensions (approx.) WxDxH: 231x108x23mm (9.09x4.25x0.91in)
  • Housing Material: Metal
  • Net Weight: 0.71kg (1.57lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -10°C - 60°C (-14°F - 140°F)
  • Humidity: 5 - 80% RH (non-condensing)
  • Power Requirements: 5V 3A
  • Colour: Black
Miscellaneous
  • Packaging Type: Carton Box
  • Packaging Dimensions: 292x238x55mm (11.5x9.37x2.17in)
  • Gross Weight: 0.98kg (2.16lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Content
  • HDMI® KVM Switch
  • Multi-country PSU (UK, EU, US & AUS)
  • Lindy Manual
Purchasing Information
  • No.: 39313
  • EAN: 4002888393133


CE Doc: CE_39313.pdf
Manuals: LINDY_39313_MAN_0922.pdf
