LINDY

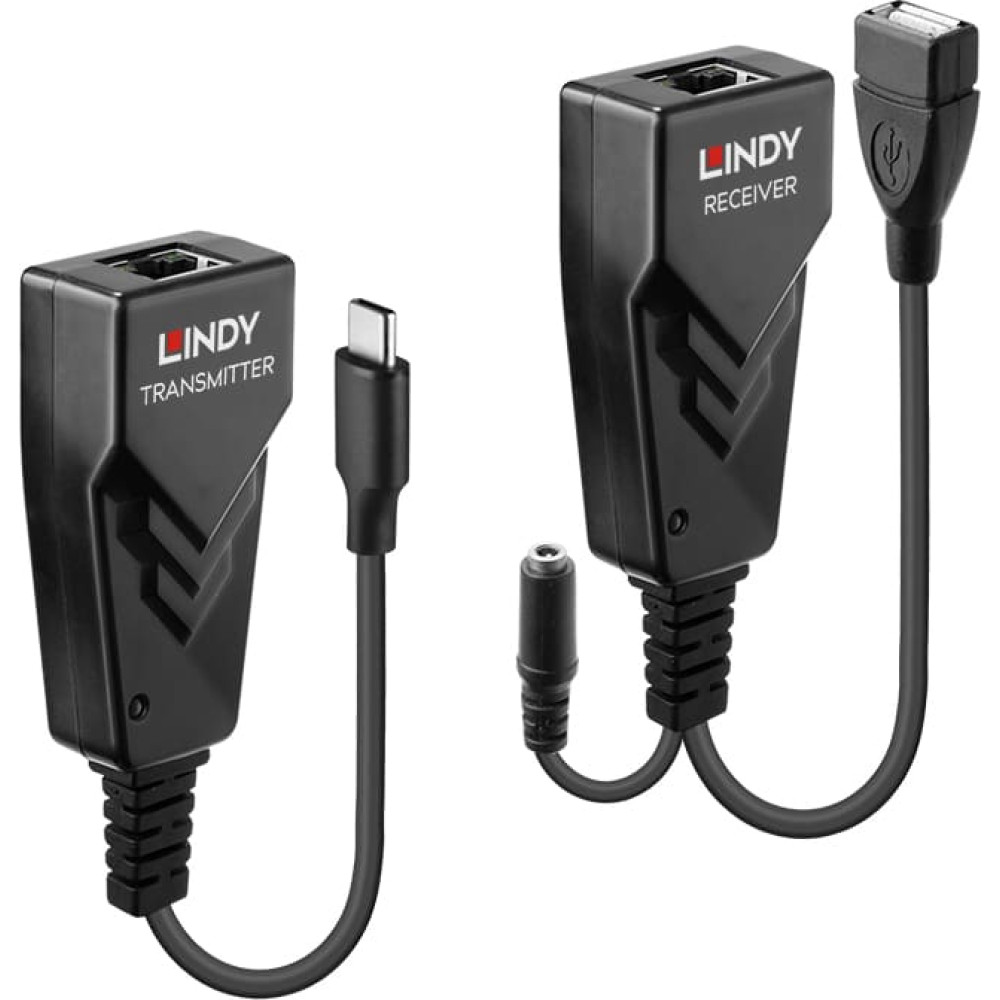

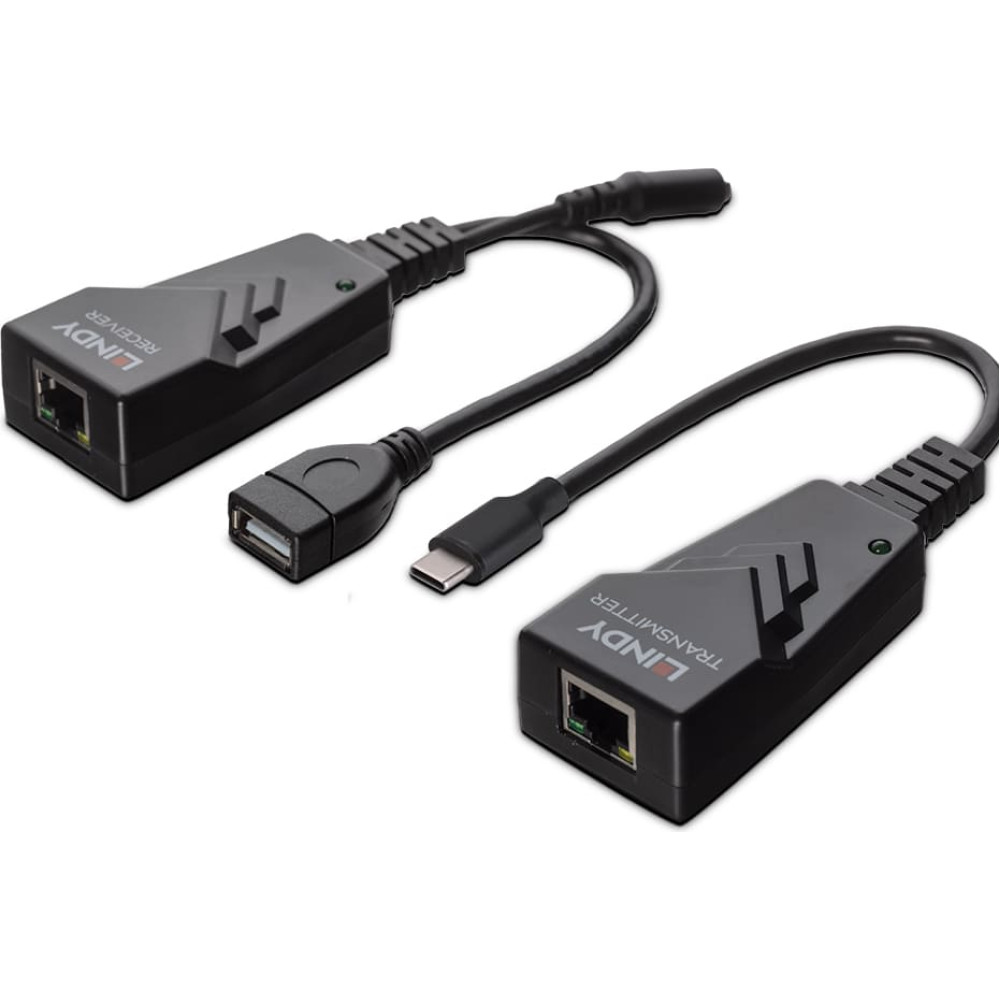

Lindy 100m USB 2.0 Type C Cat.6 Extender

Produkta kods: 43390
Svītrkods: 4002888433907

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
ac adapter included: Yes
cable types supported: Cat5e, Cat6
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/65/81/6d/65/656d8165531b026e33284c7d/CE_43390.pdf
chipset: CH317Q, CH9317, RTL8211E
compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
country of origin: CN
data transfer rate: 480 Mbit/s
dc-in jack: Yes
depth: 36 mm
ethernet lan (rj-45) ports: 2
height: 22 mm
housing material: Plastic
manual: Yes
maximum transfer distance: 100 m
operating relative humidity (h-h): 0 - 80%
operating temperature (t-t): 0 - 40 °C
package depth: 200 mm
package height: 48 mm
package type: Box
package volume: 380 cm³
package width: 200 mm
packaging height: 4.8
packaging lenght: 20.5
packaging width: 20.0
product colour: Black
quantity per pack: 1 pc(s)
rj-45 ports quantity (receiver): 1
rj-45 ports quantity (transmitter): 1
storage relative humidity (h-h): 0 - 80%
storage temperature (t-t): -10 - 60 °C
sustainability compliance: Yes
type: Network transmitter & receiver
usb type-c ports quantity (receiver): 1
usb type-c ports quantity (transmitter): 1
weight: 50 g
width: 69 mm

Preces apraksts

Specifications

  • USB Standard: USB2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Distance: 100m (328.08ft)
  • Transmission Medium: Cat. 5e/6 UTP network cable
  • Chipset: CH317Q, CH9317, RTL8211E
  • Special Features:  Supports isochronous data transfer

Connectors

  • Transmitter Input:  USB Type C (Male)
  • Transmitter Output:  RJ45 (Female)
  • Receiver Input:  RJ45 (Female)
  • Receiver Output: USB Type A (Female)
  • Power: 3.5/1.35mm DC socket

Physical Properties

  • Dimensions WxDxH: 69x36x22mm (2.72x1.42x0.87in)
  • Housing Material: Plastic
  • Net Weight: 0.05kg (0.11lb) per unit
  • Operating Temperature: 0° - 40°C (32°F - 104°F)
  • Storage Temperature: -10°C - 60°C (14°F - 140°F)
  • Humidity: 0 - 80% RH (non-condensing)
  • Power Requirements: 5V DC 2A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 200x200x48mm (7.87x7.87x1.89in)
  • Gross Weight: 0.38kg (0.84lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP65

Package content

  • Transmitter unit
  • Receiver unit
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 43390
  • EAN: 4002888433907
