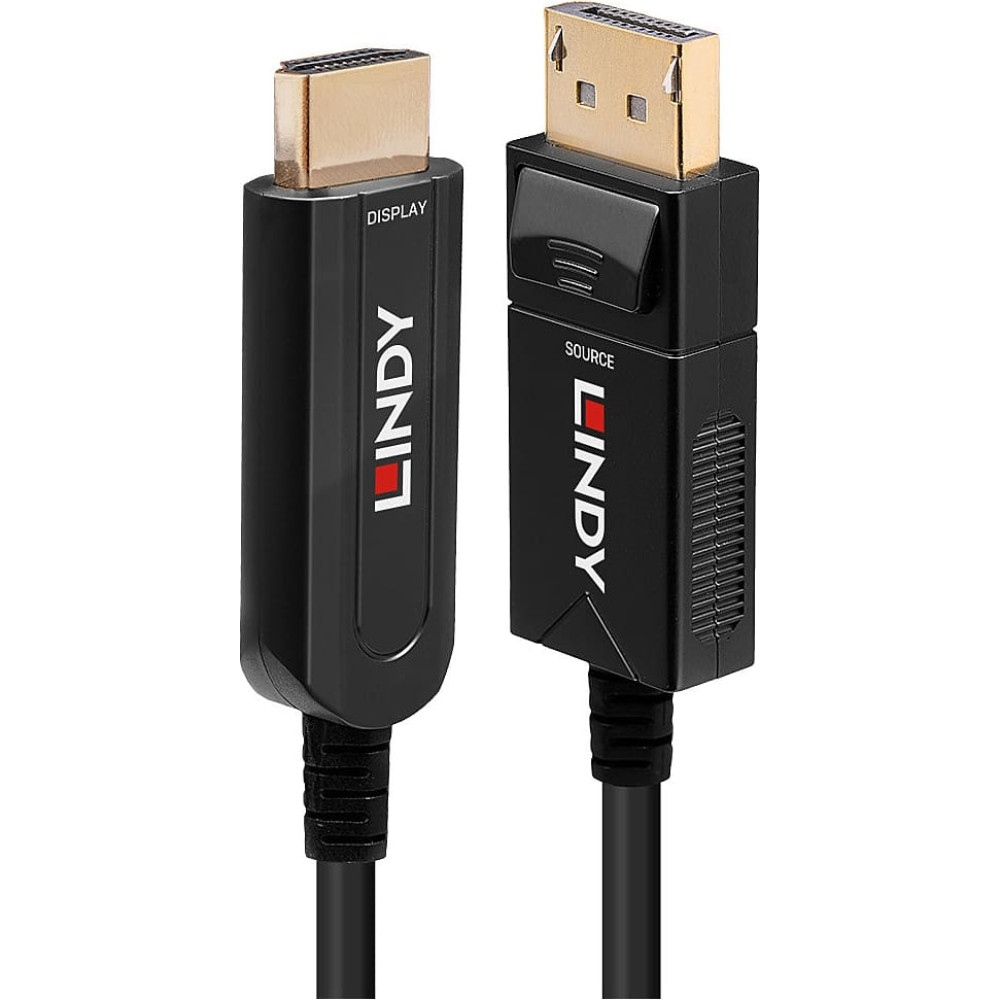

Lindy 50m Fibre Optic Hybrid DisplayPort 1.2 to HDMI 18G Cable

LINDY

Lindy 50m Fibre Optic Hybrid DisplayPort 1.2 to HDMI 18G Cable

Produkta kods: 38494
Svītrkods: 4002888384940

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
cable length: 50 m
compliance certificates: RoHS
connector 1: DisplayPort
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: HDMI Type A (Standard)
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
country of origin: CN
data transfer rate: 21.6 Gbit/s
displayport version: 1.2
gross weight: 2.15
harmonized system (hs) code: 84733080
hdmi version: 2.0
jacket material: Polyvinyl chloride (PVC)
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/91/67/97/62/62976791999c8d635dc13d1d/Lindy_38490-4_Man_0121.pdf
maximum resolution: 3840 x 2160 pixels
net weight: 2.05
operating temperature (t-t): 0 - 50 °C
packaging height: 27.50
packaging lenght: 28.50
packaging width: 7.40
product colour: Black
storage temperature (t-t): -40 - 70 °C
supported graphics resolutions: 3840 x 2160
supported video modes: 2160p
variation of: 38490
warranty: 2
Preces apraksts

Connectors:

  • Connector A: DisplayPort Male
  • Connector B: HDMI® Type A Male
  • Housing Material: Zinc Alloy
  • Connector Plating: Gold Plated
  • Pin Construction: Phosphor Bronze
  • Pin Plating: Gold Plated
  • Dimensions (approx.) WxDxH:

DisplayPort Connector: 42x20x10mm (1.65x0.79x0.39in)

HDMI Connector: 44.5x20x10mm (1.75x0.79x0.39in)


Cable Construction:

  • Length: 50m (164.04ft)
  • Standard: DisplayPort 1.2, HDMI® 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.5mm (0.18in)
  • Jacket Material: PVC
  • Conductor Material: Gold Plated Copper

Specifications:

  • Supported Bandwidth: 21.6Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • Nominal Attenuation: -1dB~-2dB
  • Minimum Bend Radius: 45mm (1.77in)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -40°C - 70°C (-40°F - 158°F)

Miscellaneous:

  • Packaging Type: Carton Box
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65
  • No.: 38494
  • EAN: 4002888384940

This product is also available in other lengths:

  • 38490 - 10m (32.81ft)
  • 38491 - 20m (65.62ft)
  • 38492 - 30m (98.42ft)
  • 38493 - 40m (131.23ft)
  • 38494 - 50m (164.04ft)



Manuals: Lindy_38490-4_Man_0121.pdf
