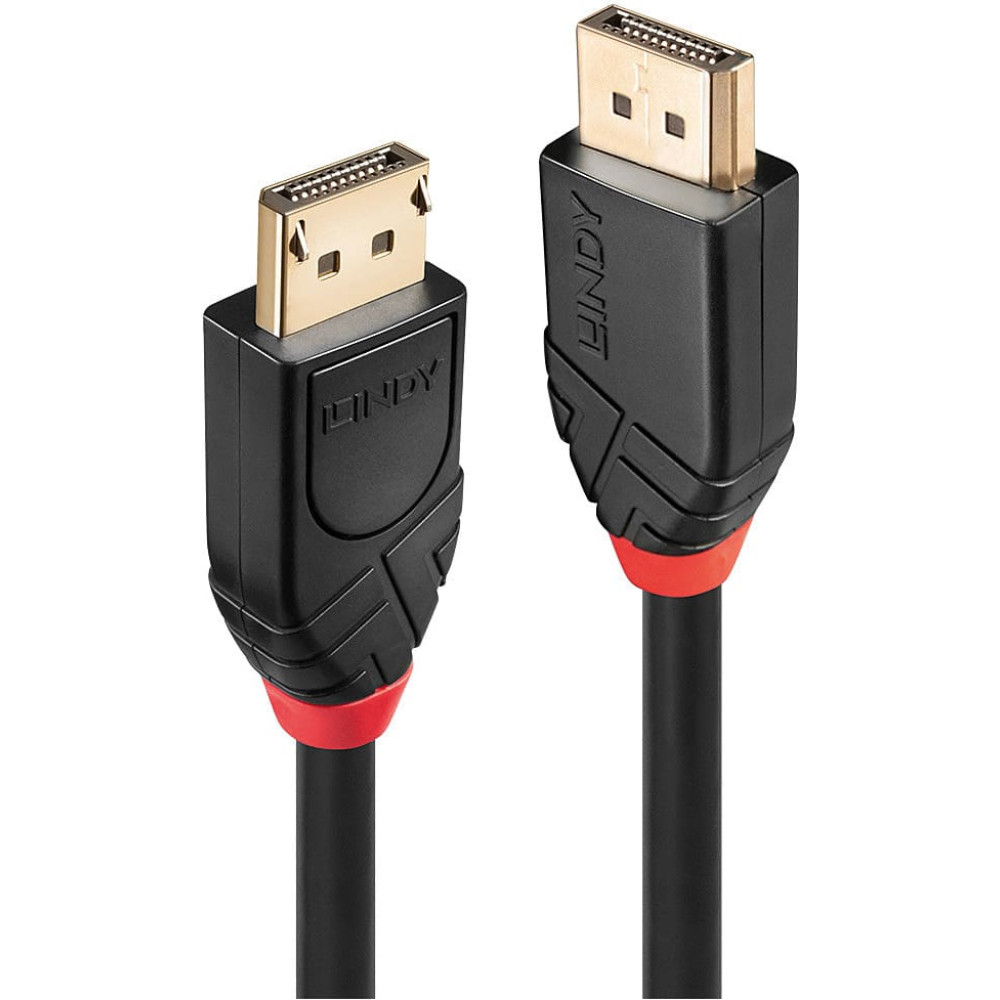

Lindy 15m Active DisplayPort 1.2 Cable

LINDY

Lindy 15m Active DisplayPort 1.2 Cable

Produkta kods: 41079
Svītrkods: 4002888410793

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
awg wire size: 28
cable diameter: 7 mm
cable length: 15 m
cable material: Copper
cable shielding: Aluminum mylar foil
certification: CE,FCC, REACH
compliance certificates: RoHS
connector 1: DisplayPort
connector 1 gender: Male
connector 2: DisplayPort
connector 2 gender: Male
connector contacts plating: Gold
country of origin: CN
data transfer rate: 21.6 Gbit/s
displayport version: 1.2
gross weight: 0.85
harmonized system (hs) code: 84733080
jacket material: Polyvinyl chloride (PVC)
maximum resolution: 3840 x 2160 pixels
net weight: 0.80
operating temperature (t-t): 0 - 70 °C
package type: Polybag
packaging height: 33.50
packaging lenght: 32.40
packaging width: 4.00
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -10 - 45 °C
supported video modes: 2160p
variation of: 41078
warranty: 2
Preces apraksts

Connectors

  • Connector A: DisplayPort (Male)
  • Connector B: DisplayPort (Male)
  • Housing Material: ABS
  • Connector Plating: 24K Gold Plated
  • Pin Construction: Copper
  • Pin Plating: 24K Gold Plated
  • Dimensions (approx.) WxDxH: 19.7x38.9x12mm (0.78x1.53x0.47in)
  • Chipset Housing Dimensions (Length x Outer Diameter): 75x20mm (2.95x0.79in)

Cable Construction

  • Length: 15m (49.21ft)
  • Standard: DP 1.2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7.8mm (0.31in)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 26AWG
  • Shielding: 75% Aluminium Mylar

Specifications

  • Supported Bandwidth: 21.6Gbps
  • Maximum Resolution:
    • 5120x2880@60Hz 4:2:2 8bit
    • 3840x2160@60Hz 4:2:2 10bit
    • 2560x1440@144Hz 4:2:2 10bit
  • Nominal Attenuation: -
  • Minimum Bend Radius: 90mm (3.54in)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -10°C - 45°C (14°F - 113°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Product Compliance: CE,FCC, RoHS & REACH

Purchasing Information

  • No.: 41079
  • EAN: 4002888410793

This product is also available in other lengths

  • 41078 - 10m (32.81ft)
  • 41081 - 20m (65.62ft)
