Sākums Kabeļi HDMI Lindy 1m HDMI to DVI-D Cable, Black Line

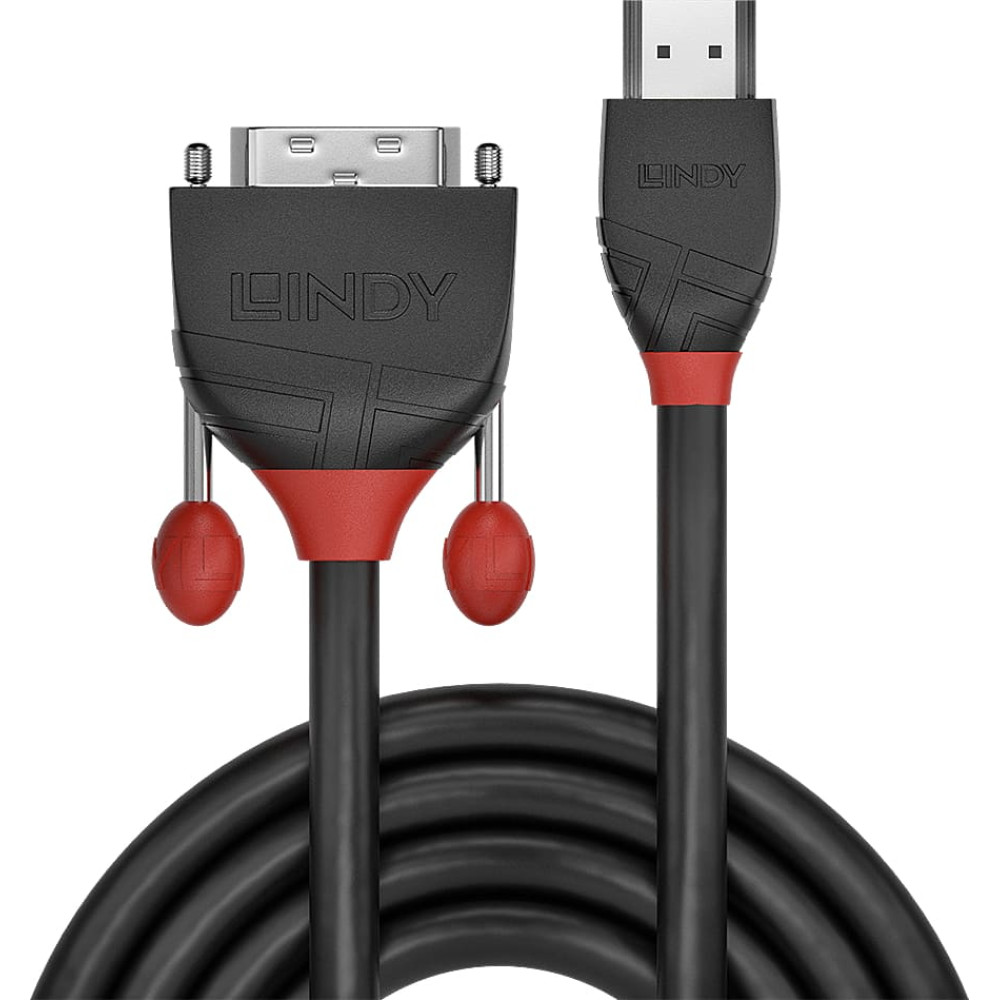

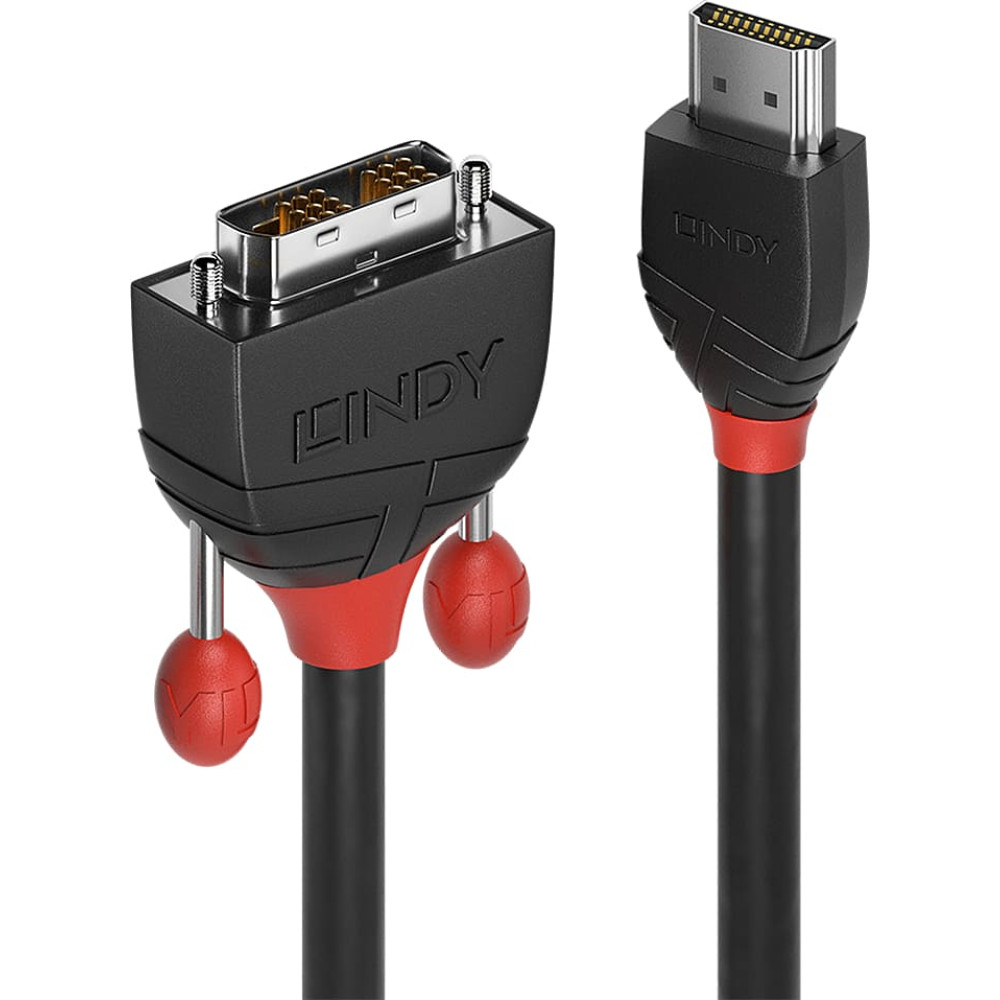

Lindy 1m HDMI to DVI-D Cable, Black Line

LINDY

Lindy 1m HDMI to DVI-D Cable, Black Line

Produkta kods: 36271
Svītrkods: 4002888362719

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
awg wire size: 30
bend radius (min): 5.5 cm
cable diameter: 5.5 mm
cable length: 1 m
cable material: Tinned copper
cable shielding: Aluminium braid
cable type: Round cable
certification: RoHS, REACH, UL
conductor material: Tinned copper
connector 1: HDMI Type A (Standard)
connector 1 dimensions (wxdxh): 21.4 x 34.2 x 12.7 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: DVI-D
connector 2 dimensions (wxdxh): 36.8 x 44.5 x 12.5 mm
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Gold
connector housing material: Polyvinyl chloride (PVC)
connector material: Nickel
contact material: Brass
country of origin: CN
data transfer rate: 4.95 Gbit/s
gross weight: 0.10
harmonized system (hs) code: 84733080
jacket material: Polyvinyl chloride (PVC)
maximum resolution: 1920 x 1200 pixels
net weight: 0.08
nominal attenuation: 1 €“ 825Mhz 12db
operating temperature (t-t): -20 - 80 °C
package type: Polybag
packaging height: 19.40
packaging lenght: 17.40
packaging width: 2.00
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -25 - 85 °C
supported graphics resolutions: 1920 x 1200 (WUXGA)
variation of: 36270
warranty: 10
Preces apraksts

Connectors

  • Connector A: HDMI® Type A Male
  • Connector B: DVI-D Male (Single Link)
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: 24K Gold 1?m
  • Dimensions (approx.) WxDxH:
    • HDMI®: 2x34.2x12.7mm (0.84x1.35x0.5in)
    • DVI: 36.8x44.5x12.5mm (5x1.75x0.49in)

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: DVI-D Single Link
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.5mm (0.22in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 30AWG
  • Shielding: Aluminium/Magnesium Braid 85%

Specifications

  • Supported Bandwidth: 4.95 Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation: 1 - 825Mhz < 12db
  • Minimum Bend Radius: 55mm (2.17in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, UL

Purchasing Information

  • No. 36271
  • EAN: 4002888362719

This product is also available in other lengths

  • 36270 - 0.5m (1.64ft)
  • 36272 - 2m (6.56ft)
  • 36273 - 3m (9.84ft)
  • 36274 - 5m (16.40ft)
  • 36275 - 10m (32.81ft)
