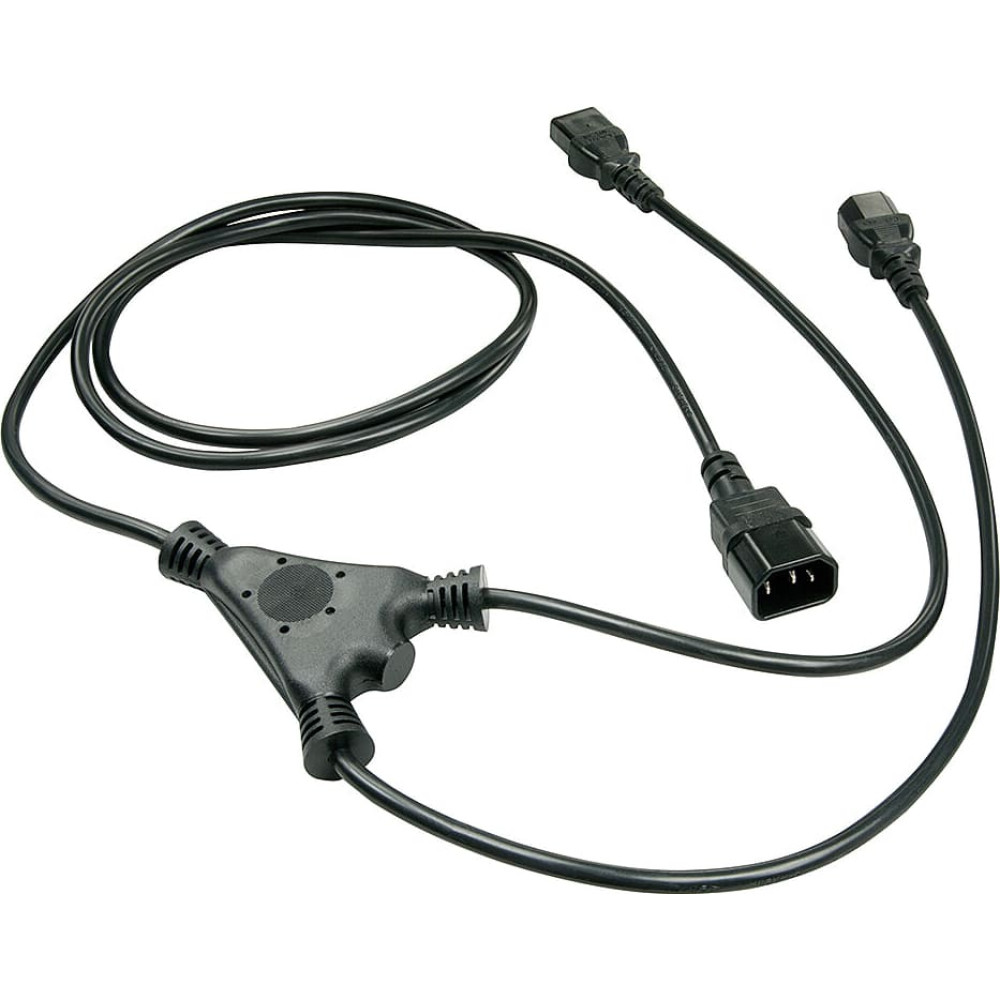

Lindy 1m C14 to 2x C13 Mains Extension Cable

LINDY

Lindy 1m C14 to 2x C13 Mains Extension Cable

Produkta kods: 30363
Svītrkods: 4002888303637

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
cable length: 1 m
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/1f/26/47/66/6647261ffaeed4c1dad92825/CE_30039, 30120 – 30125, 30314, 30320, 30321, 30331, 30332, 30333, 30361, 30363, 30364, 30470 – 3047.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/27/42/09/65/65094227d2af90551efb198c/CE_DoC_DE_30363_30364.pdf
connector 1: C14 coupler
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: 2 x C13 coupler
connector 2 form factor: Straight
connector 2 gender: Female
country of origin: CN
gross weight: 0.26
harmonized system (hs) code: 84733080
net weight: 0.23
packaging height: 25.90
packaging lenght: 23.60
packaging width: 3.00
product colour: Black
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/73/4b/08/65/65084b73a9c39587cf352ad7/30363_TDS_V1.pdf
variations: 30039
warranty: 10
Preces apraksts

Connectors

  • Connector A: IEC C14
  • Connector B: 2x IEC C13
  • Housing Material:
    • A: PVC & PBT
    • B: PVC
  • Pin Construction:
    • A: Brass
    • B: Phosphor Bronze
  • Pin Plating: Nickel
  • Dimensions (approx.) WxDxH:
    • A: 28.5x64x21mm (1.12x2.52x0.83in)
    • B: 25.6x65x16.5mm (1.01x2.56x0.65in)

Cable Construction

  • Length: 1m (3.28ft) (Y segments 0.5m)
  • Colour: Black
  • Conductor Material: Copper
  • Cable Material: H05VV-F 3G 0.75mm²
  • Number of Wires: 3
  • Wire Gauge: 0.75mm²
  • Jacket Diameter: 6.4mm (0.25in)
  • Jacket Material: PVC

Specifications

  • Rated Voltage and Current: 10A/250V
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 30363
  • EAN: 4002888303637

This product is also available in other lengths

  • 30363 - 1m (3.28ft)
  • 30039 - 2m (6.56ft)



CE Doc: CE_DoC_DE_30363_30364.pdf
Tech Data Sheets: 30363_TDS_V1.pdf
