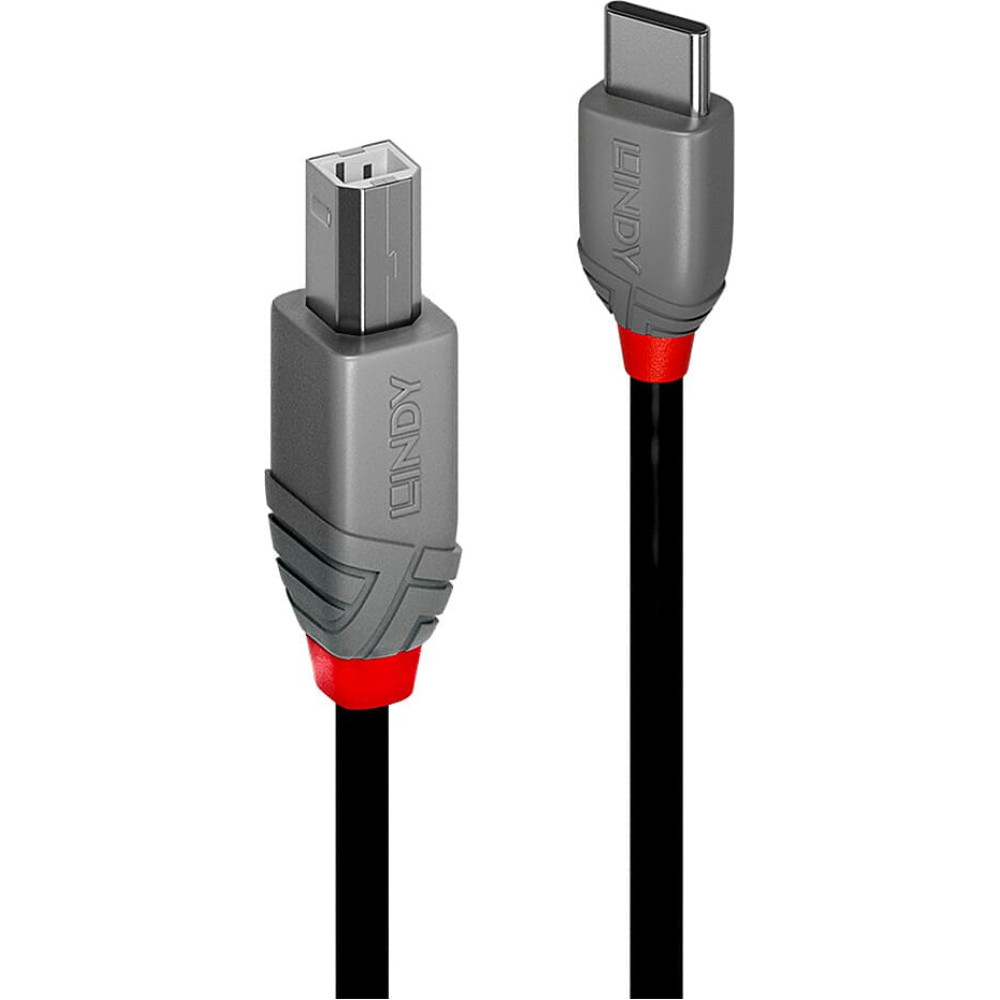

Lindy 1m USB 2.0 Type C to B Cable, Anthra Line

LINDY

Lindy 1m USB 2.0 Type C to B Cable, Anthra Line

Produkta kods: 36941
Svītrkods: 4002888369411

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
awg wire size: 26/28
bend radius (min): 2.5 cm
cable diameter: 4.4 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 1 m
cable type: Round cable
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f6e/CE_DoC_DE_36940_36943.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f6e/CE_DoC_DE_36940_36943.pdf
compliance certificates: REACH, RoHS
conductor material: Tinned copper
connector 1: USB C
connector 1 dimensions (wxdxh): 10.9 x 28.3 x 7.2 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB B
connector 2 dimensions (wxdxh): 11.8 x 47 x 10.2 mm
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Nickel
connector shielding: Yes
contact material: Brass
country of origin: CN
gross weight: 0.03
harmonized system (hs) code: 84733080
maximum data transfer rate: 0.48 Gbit/s
net weight: 0.03
nominal attenuation: 1-400MHz < 5.8dB
operating temperature (t-t): 0 - 40 °C
package type: Polybag
packaging height: 14.40
packaging lenght: 13.30
packaging width: 1.00
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): 0 - 70 °C
usb version: USB 2.0
variation of: 36940
warranty: 10
Preces apraksts

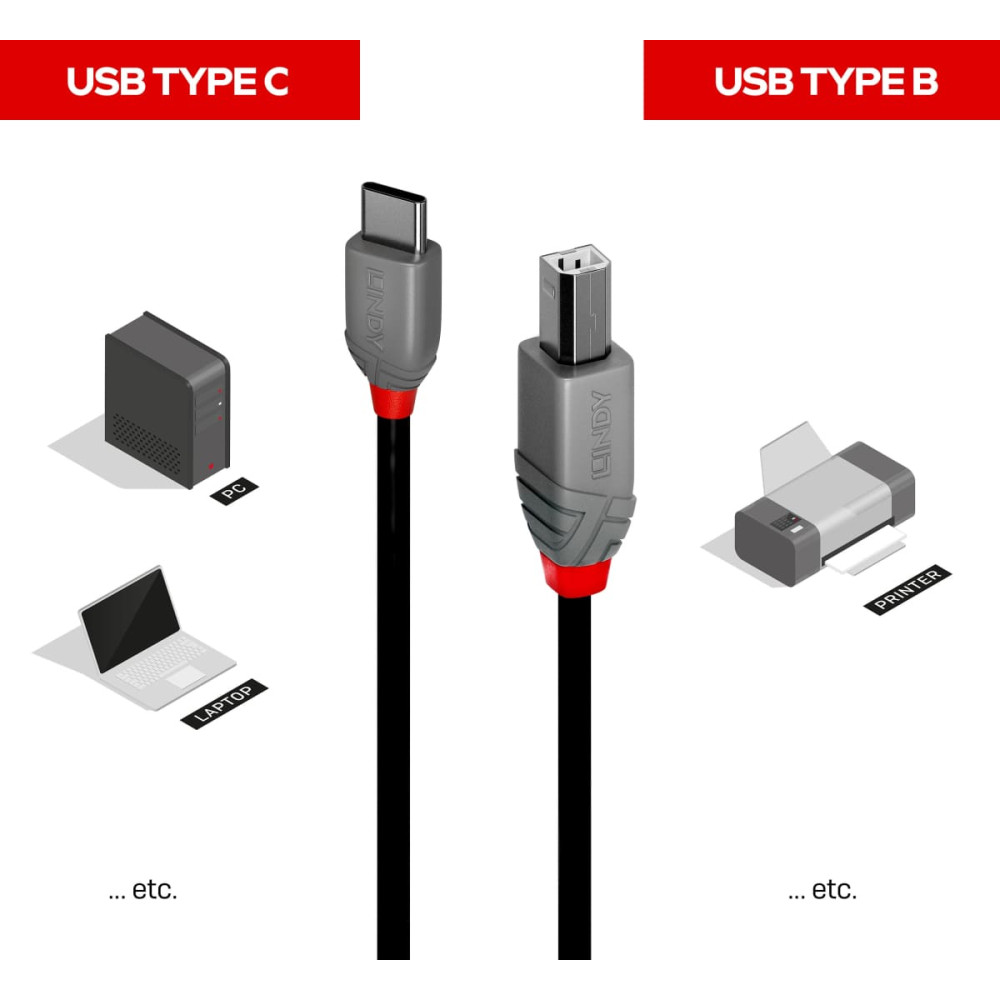

Connectors

  • Connector A: USB 2.0 Type C Male
  • Connector B: USB 2.0 Type B Male
  • Housing Material: PVC
  • Shielding in head shell: Copper foil
  • Connector Plating: Nickel
  • Pin Construction:
    • C: High conductivity copper
    • B: Brass
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH:
    • C: 10.9x28.3x7.2mm (0.43x1.11x0.28in)
    • B: 11.8x47x10.2mm (0.46x1.85x0.4in)

Cable Construction

  • Jacket Diameter: 4.4mm (0.17in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge Power: 26AWG
  • Conductor Gauge Data: 28AWG
  • Shielding: Aluminium Magnesium Braid 65%

Specifications

  • Length: 1m (3.28ft)
  • Colour: Black
  • Type: Round
  • Standard: USB 2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Power: 2.5W (5V 0.5A)
  • E-Mark: No
  • Maximum Resolution: -
  • Supported Protocols: USB 2.0
  • Nominal Attenuation: 1 - 400MHz < 5.8dB
  • Minimum Bend Radius: 25mm (0.98in)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable)

Purchasing Information

  • No.: 36941
  • EAN: 4002888369411

This product is also available in other lengths

  • 36940 - 0.5m (1.64ft)
  • 36941 - 1m (3.28ft)
  • 36942 - 2m (6.56ft)
  • 36943 - 3m (9.84ft)



CE Doc: CE_DoC_DE_36940_36943.pdf
