Lindy 15m USB 3.0 Active Extension Pro

LINDY

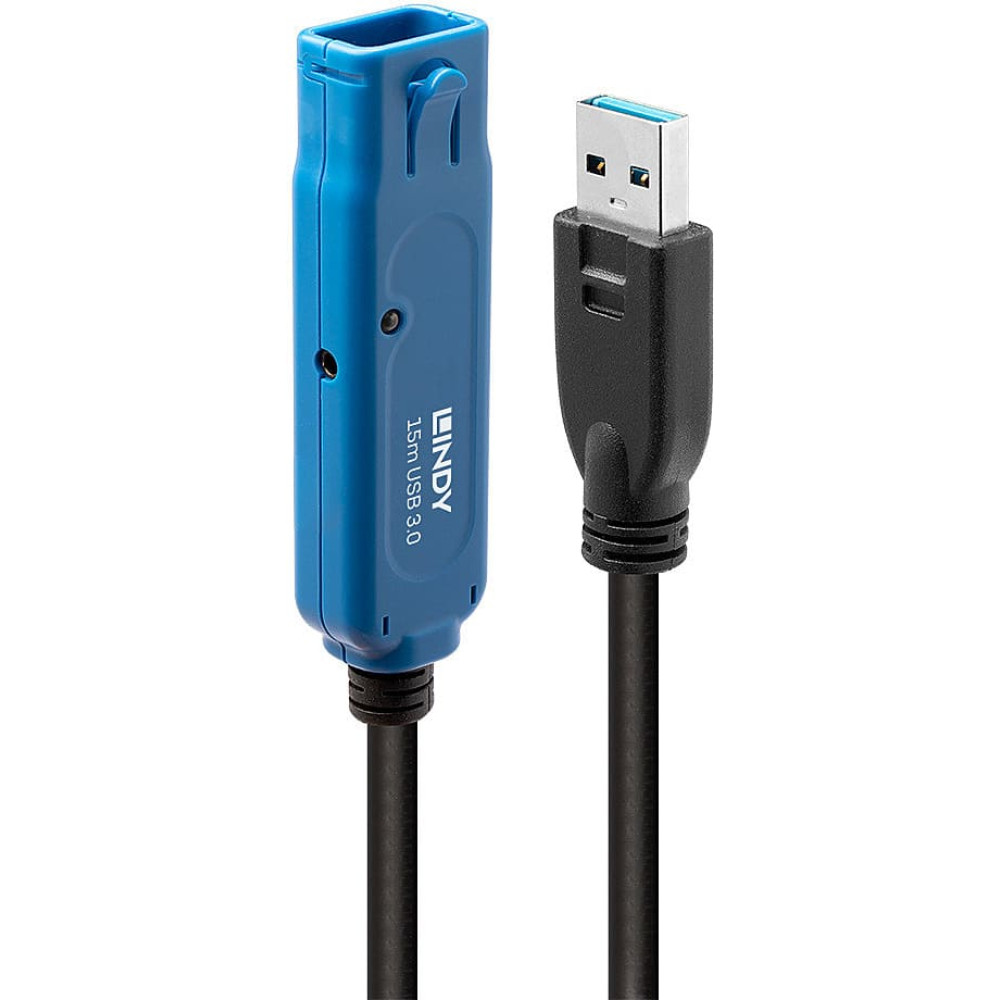

Lindy 15m USB 3.0 Active Extension Pro

Produkta kods: 43229
Svītrkods: 4002888432290

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
awg wire size: 24/24/20
bend radius (min): 3.6 cm
cable diameter: 7 mm
cable jacket material: Polyvinyl chloride (PVC)
cable length: 15 m
cable type: Round cable
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6e/55/97/62/6297556ea7fecca6d5a65ee1/CE_DoC_DE_43229.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6e/55/97/62/6297556ea7fecca6d5a65ee1/CE_DoC_DE_43229.pdf
certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65
conductor material: Tinned copper
connector 1: USB A
connector 1 dimensions (wxdxh): 15 x 49 x 8 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB A
connector 2 dimensions (wxdxh): 20 x 80 x 13 mm
connector 2 form factor: Straight
connector 2 gender: Female
connector contacts plating: Gold
connector housing material: Plastic
connector material: Nickel
contact material: Brass
country of origin: TW
gross weight: 1.35
harmonized system (hs) code: 84733080
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/90/67/97/62/62976790999c8d635dc13cdd/Lindy_43157_8_9_43229_MAN_0222.pdf
maximum data transfer rate: 5 Gbit/s
net weight: 1.00
nominal attenuation: 0.064MHz - 0.08dB .256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
operating temperature (t-t): 0 - 50 °C
package depth: 180 mm
package height: 10 mm
package type: Box
package weight: 1.35 kg
package width: 280 mm
packaging height: 11.50
packaging lenght: 32.50
packaging width: 20.00
power note: 2.5/0.7mm DC Connector
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 60 °C
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f3/67/97/62/629767f3d0ebe20d37a65eec/43229_TDS_v2.pdf
transmission medium: Twisted pair
usb version: USB 3.2 Gen 1 (3.1 Gen 1)
variation of: 43158
warranty: 2
weight: 1 kg

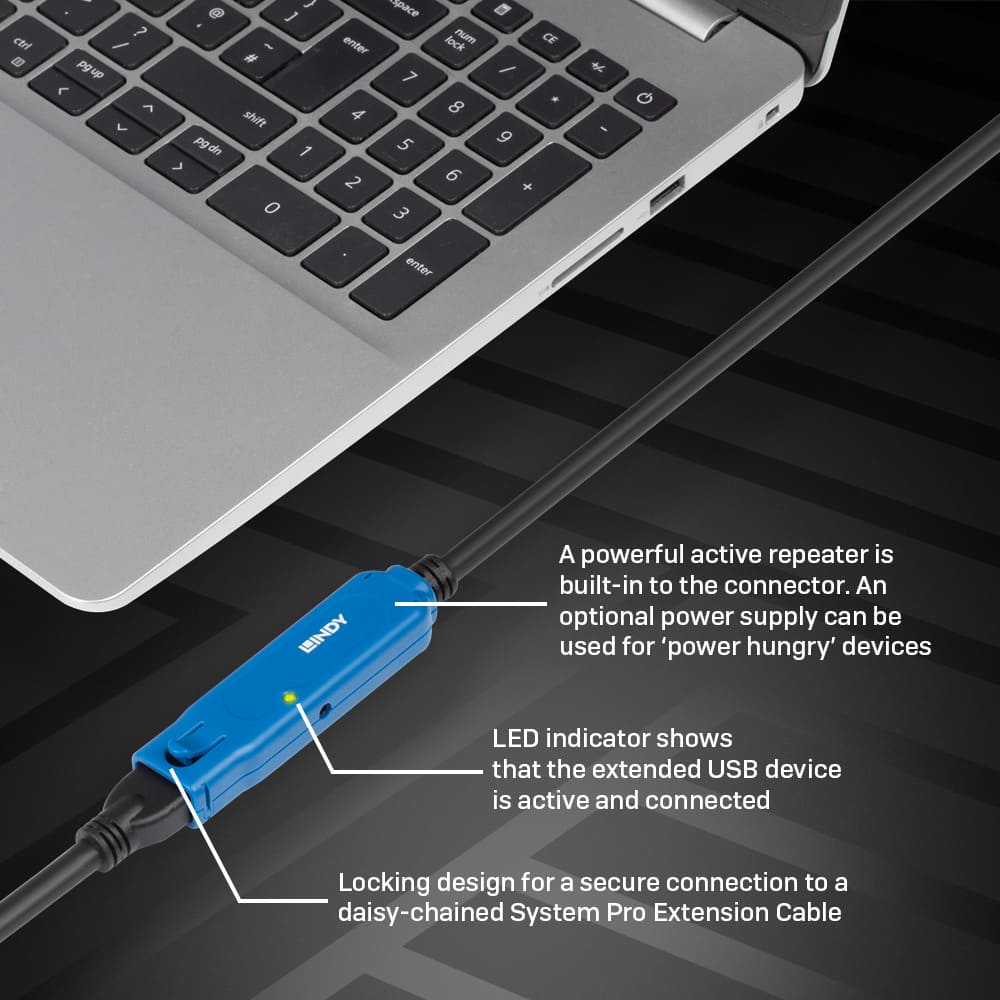

Preces apraksts

Connectors

  • Connector A: USB Type A Male
  • Connector B: USB Type A Female
  • Power: 2.5/0.7mm DC Connector
  • Housing Material: Plastic
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold Flash
  • Dimensions (approx.) WxDxH:
    • USB A Male: 15x49x8mm (0.59x1.93x0.31in)
    • USB A Female: 20x80x13mm (0.79x3.15x0.51in)
    • Repeater (1x): 84.5x15.5mm (3.33x0.61in)

Cable Construction

  • Length: 15m (49.21ft)
  • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
  • Jacket Material: Half matt PVC low toxic
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 24/24/20AWG
  • Shielding: AL Mylar and braid

Specifications

  • Supported Bandwidth: 5 Gbps
  • Nominal Attenuation:
    • 0.064MHz - <0.08dB
    • .256MHz - <0.11dB
    • 0.512MHz - <0.13dB
    • 0.772MHz - <0.15dB
    • 1.0MHz - <0.20dB
    • 4MHz - <0.39dB
    • 8MHz - <0.57dB
    • 12MHz - <0.67dB
    • 24MHz - <0.95dB
    • 48MHz - <1.35dB
    • 96MHz - <1.90dB
    • 200MHz - <3.20dB
    • 400MHz - <5.80dB
  • Minimum Bend Radius: 36mm (1.42in)
  • Maximum Tensile Load: -
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Transmission Medium: Twisted Pair
  • Transmission Technology: USB 3.1 Gen 1 /  3.0

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 325x200x115mm (12.8x7.87x4.43in)
  • Net Weight: 1kg (2.2lb)
  • Gross Weight: 1.351kg (2.98lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65, TAA

Packaging Content

  • USB 3.0 Active Extension Pro 15m
  • Power Adapter Cable Nr. 70265
  • Lindy Manual

Purchasing Information

  • No.: 43229
  • EAN: 4002888432290

This product is also available in other lengths

  • 43158 - 8m (26.25ft)
  • 43157 - 10m (32.81ft)
  • 43159 - 10m (32.81ft) with Hub
  • 43361 - 20m (65.62ft)
  • 43362 - 30m (98.42ft)



CE Doc: CE_DoC_DE_43229.pdf
Tech Data Sheets: 43229_TDS_v2.pdf
Manuals: Lindy_43157_8_9_43229_MAN_0222.pdf
