Sākums Multimēdija / Perifērija Raidītāji / Pastiprinātāji Lindy 96W 10 Port USB Charging Station
Lindy 96W 10 Port USB Charging Station

LINDY

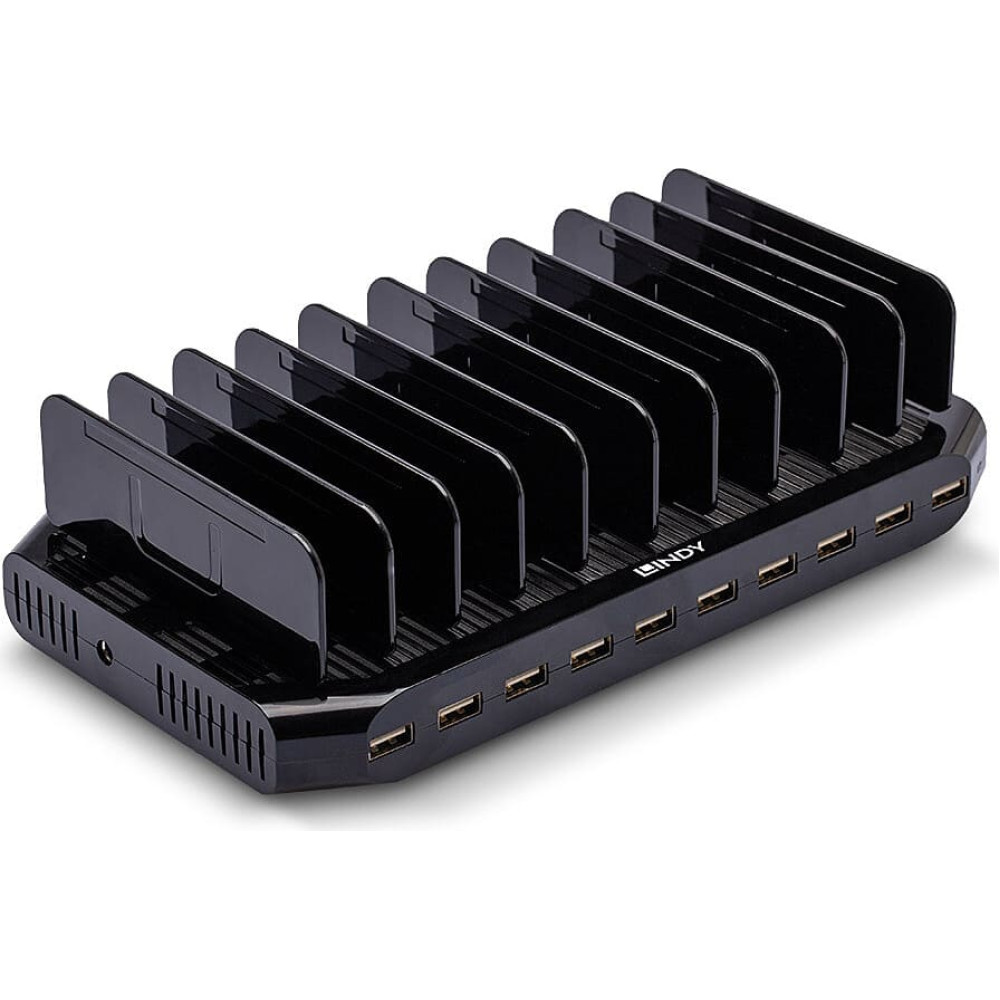

Lindy 96W 10 Port USB Charging Station

Produkta kods: 73309
Svītrkods: 4002888733090

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6b/55/97/62/6297556ba7fecca6d5a65e93/CE_DoC_DE_73309.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6b/55/97/62/6297556ba7fecca6d5a65e93/CE_DoC_DE_73309.pdf
certification: CE, UKCA, FCC, LVD, RoHS, REACH
compatibility: With all USB Type A devices
country of origin: CN
depth: 134 mm
gross weight: 1.49
height: 25 mm
input current: 8 A
input voltage: 12 V
led indicators: Power
manual: Yes
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c3/f4/56/66/6656f4c3b1ca1ffec81791d6/73309_MAN_0524.pdf
master (outer) case gtin (ean/upc): 4002888733090
material: Plastic
maximum output voltage: 5 V
net weight: 0.80
number of compartments: 10
number of devices supported: 10
operating principle: Contact
operating relative humidity (h-h): 20 - 80%
operating temperature (t-t): 5 - 35 °C
output current: 18 A
over voltage protection: Yes
package depth: 160 mm
package height: 80 mm
package type: Box
package weight: 1.49 kg
package width: 270 mm
packaging content: USB Charging Station 11 plastic separators 12V 8A PSU with 5.5/3.5mm DC connector and 4 country specific power cables (EU/US/UK/AUS to IEC C5)
packaging height: 9.00
packaging lenght: 27.00
packaging width: 16.00
product colour: Black
quantity per pack: 1 pc(s)
special features: BC 1.2, Smart Charging, Apple Charging Protocol
storage temperature (t-t): -20 - 50 °C
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f0/67/97/62/629767f0d0ebe20d37a65e9c/73309_TDS_v1.pdf
type: Freestanding
usb type-a output ports: 10
warranty: 2
weight: 800 g
width: 238 mm
Preces apraksts

Specifications

  • Interface: USB
  • Compatibility: 10x USB Type A ports for USB devices
  • Power Requirements: 20V 4.8A
  • Output Power: 5V 18A
  • Power Delivery: -
  • Special Features: BC 1.2, Smart Charging, Apple Charging Protocol

Connectors

  • Output: 10 x USB Type A (Female)

Physical Properties

  • Dimensions (approx.) WxDxH: 238x134x25mm (9.37x5.28x0.98in)
  • Connector Material: -
  • Housing Material: Plastic
  • Net Weight: 0.8kg (1.76lb)
  • Operating Temperature: 5°C - 35°C (41°F - 95°F)
  • Storage Temperature: -20°C - 50°C (-4°F - 122°F)
  • Humidity: 20% - 80% RH (non-Condensing)
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 270x160x80mm (10.63x6.3x3.15in)
  • Gross Weight: 1.489kg (3.28lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, LVD, RoHS, REACH

Package Contents

  • USB Charging Station
  • 11 plastic separators
  • 20V 4.8A PSU with 5.5/2.5mm DC connector and 4 country specific power cables (EU/US/UK/AUS to IEC C5)
  • LINDY User Manual

Purchasing Information

  • No.: 73309
  • EAN: 4002888733090


CE Doc: CE_DoC_DE_73309.pdf
Tech Data Sheets: 73309_TDS_v1.pdf
Manuals: 73309_MAN_0524.pdf
