Specifikācija
colour: various
colour (design profile): Aluminium
connection cable: 3ph Zuleitung 3,0m CEE 16A
current catalog edition: 24.1
current catalog page: 10.16
depth: 47 mm
depth of packaging (single piece): 1100 mm
function: 19" socket strip
garums: 3 m
gross weight: 2.72
height: 44 mm
height of packaging (single piece): 120 mm
manufacturer: BACHMANN
material (casing): Aluminium
max. capacitance: 3x3600W
max. voltage: 400V AC
mounting form: Vertikal
number of socket pots: 18
on/off switch: no
output alignment: 24 x C13 3 x C19
package weight (single piece): 2.72 kg
product group: Power Bars
product type: Vertikal IT PDU
quantity of outputs/angles: 18
regional use: Without restriction
socket type: IEC320 C13, 10A
weight: 2.32 kg
width: 821 mm
width of packaging (single piece): 130 mm
Preces apraksts

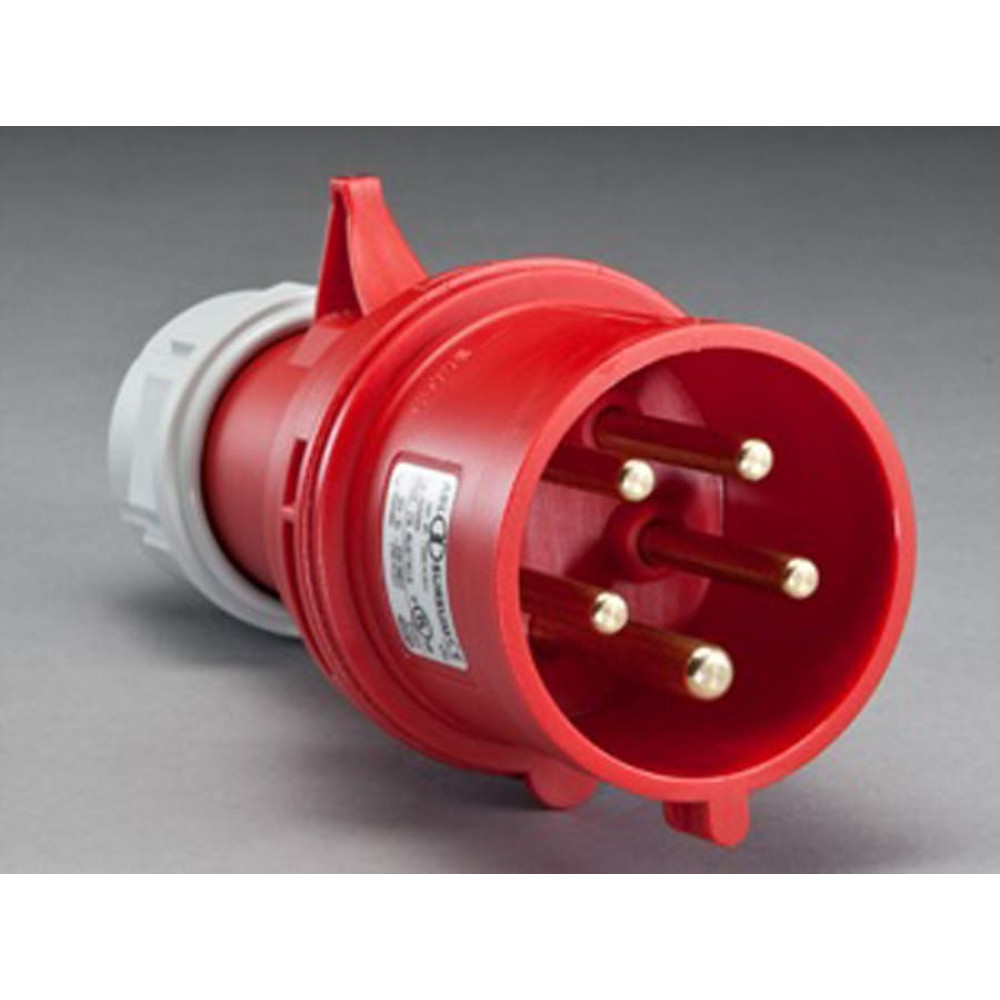

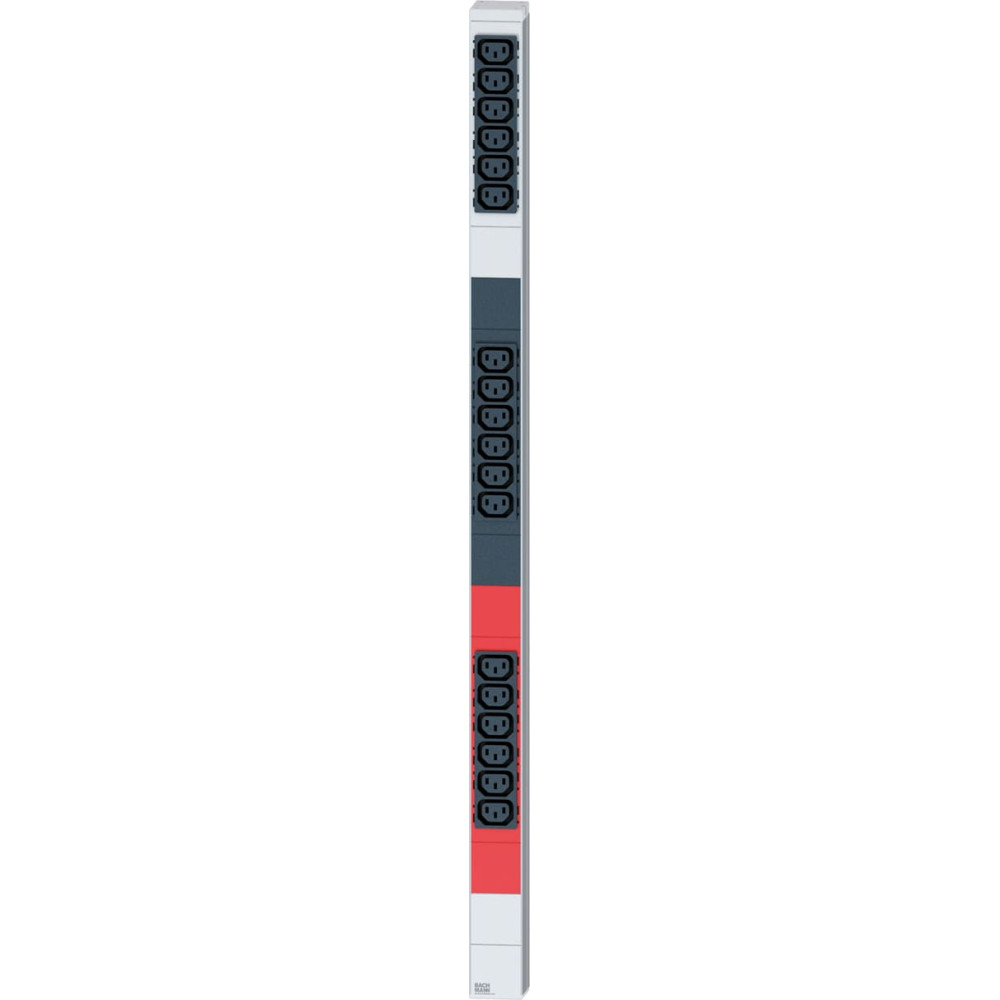

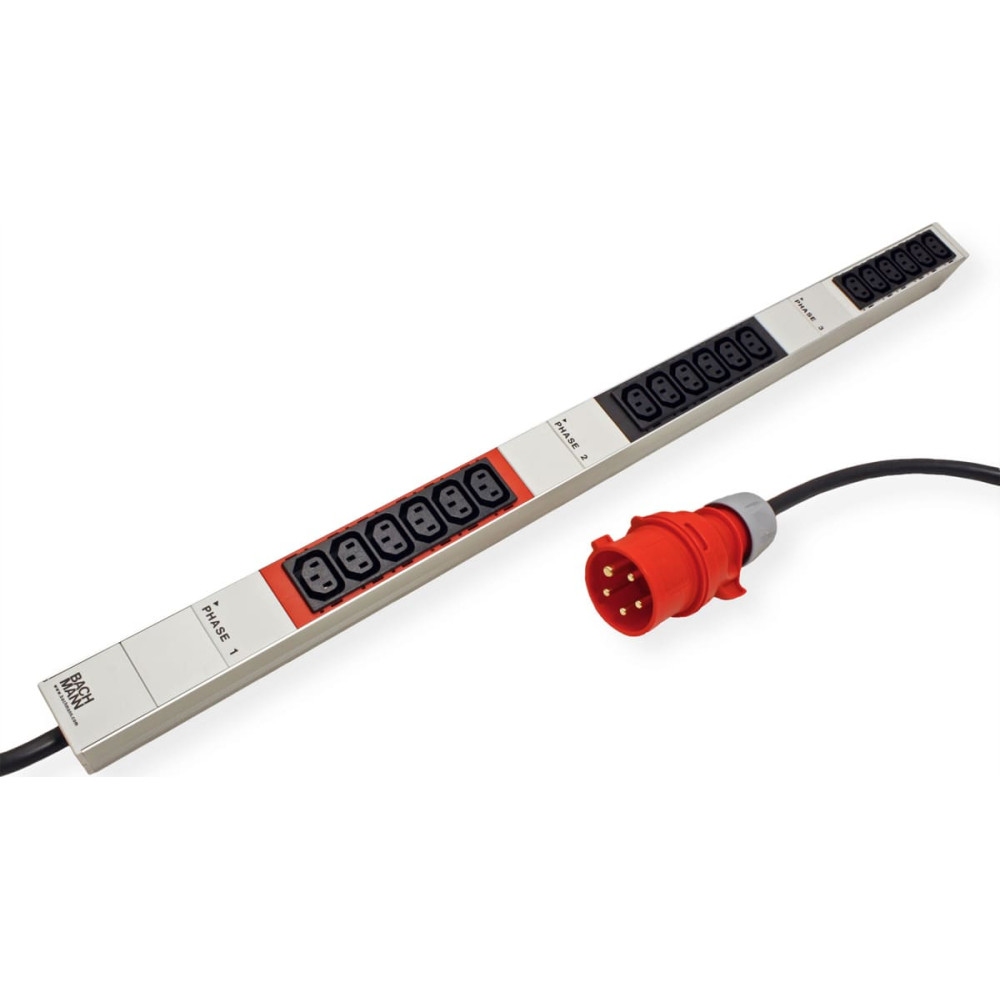

Vertical IT PDU for space-saving and modularly expandable integration into the server rackFor future-oriented, highly effi cient power distribution in data centres, server racks and network racks. - The dimensions of the high-quality and very sturdy aluminium profile are a compact 44 x 47 mm. - The space-saving design therefore offers space for data cabling and air routing for air conditioning the server rack. - Space-saving and modularly expandable integration of the PDU into the server rack - High-quality and very stable aluminium profile - Extremely compact dimensions at 44 x 47 mm. - Locking of the plugs using PVC clip or IEC lock - Colour coding of the phases - Installation height in the cabinet 821mm - 18x C13 cold appliance sockets, lockable - Supply cable: 3.0m H05VV-F 3G2.5mm² - Plug CEE 3L+N+PE 16A, red, 3-phase - Dimensions: 44 x 821 x 47 mm - Including mounting bracket, packed in cardboard box |
