Specifikācija
auto mdi/mdi-x: Yes
auto-negotiation: Yes
certification: - ISO9001
- FCC Part 15, Class A
- EN61000-6-3
- EN55022
- EN61000-3-2
- EN61000-3-3
- EN61000-6-2
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- IEC60068-2-6 Fc
- IEC60068-2-27 Ea
- FED STD 101C Method 5007.1
connectivity technology: Wired
converter input interface: 10Base-T, 100Base-TX, 1000Base-TX
converter output interface: 1000Base-LX, 1000Base-SX
country of origin: Taiwan
depth: 110 mm
din rail mounting: Yes
duplex system: Full, Half
ethernet interface type: Gigabit Ethernet
ethernet lan (rj-45) ports: 1
ethernet lan data rates: 10,100,1000 Mbit/s
fiber optic connector: SFP
fiber ports quantity: 1
harmonized system (hs) code: 85176990
height: 135 mm
housing material: Aluminium
input voltage: 12 - 48 V
internal: No
international protection (ip) code: IP30
led indicators: Activity, Link, Power, Status
maximum data transfer rate: 1000 Mbit/s
mean time between failures (mtbf): 665760 h
networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
operating relative humidity (h-h): 5 - 95%
operating temperature (t-t): -40 - 75 °C
output current (48v): 0.16 A
package depth: 92 mm
package height: 236 mm
package type: Box
package weight: 1 kg
package width: 198 mm
packet forwarding rate (1 gbps): 1488100 pps
power consumption (max): 7.68 W
product colour: Black
quick installation guide: Yes
safety: UL508
storage temperature (t-t): -40 - 85 °C
weight: 800 g
width: 50 mm
Preces apraksts

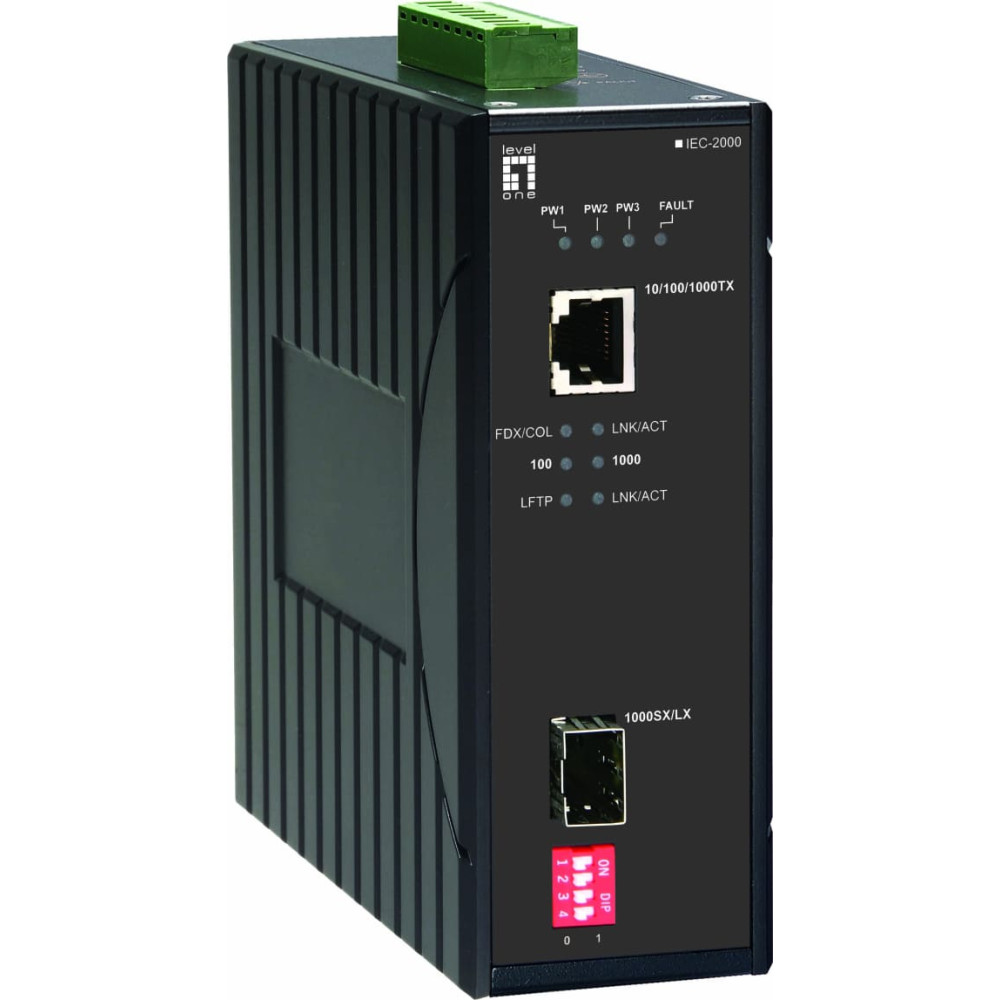

| LevelOne IEC-2000. Maksimālais datu pārraides ātrums: 1000 Mbit/s, Konvertora ievades interfeiss: 10Base-T, 100Base-TX, 1000Base-TX, Konvertora izvades interfeiss: 1000Base-LX, 1000Base-SX. Vidējais laiks starp kļūmēm (MTBF): 665760 h. LED indikatori: Aktivitāte, Link, Jauda, Status, Produkta krāsa: Melns, Apvalka materiāls: Alumīnijs. Optiskās šķiedras konektors: SFP, Savienojamības tehnoloģija: Vadu. Ieejas spriegums: 12 - 48 V, Izejas strāva (48V): 0,16 A, Strāvas patēriņš (maks): 7,68 W |
