LINDY

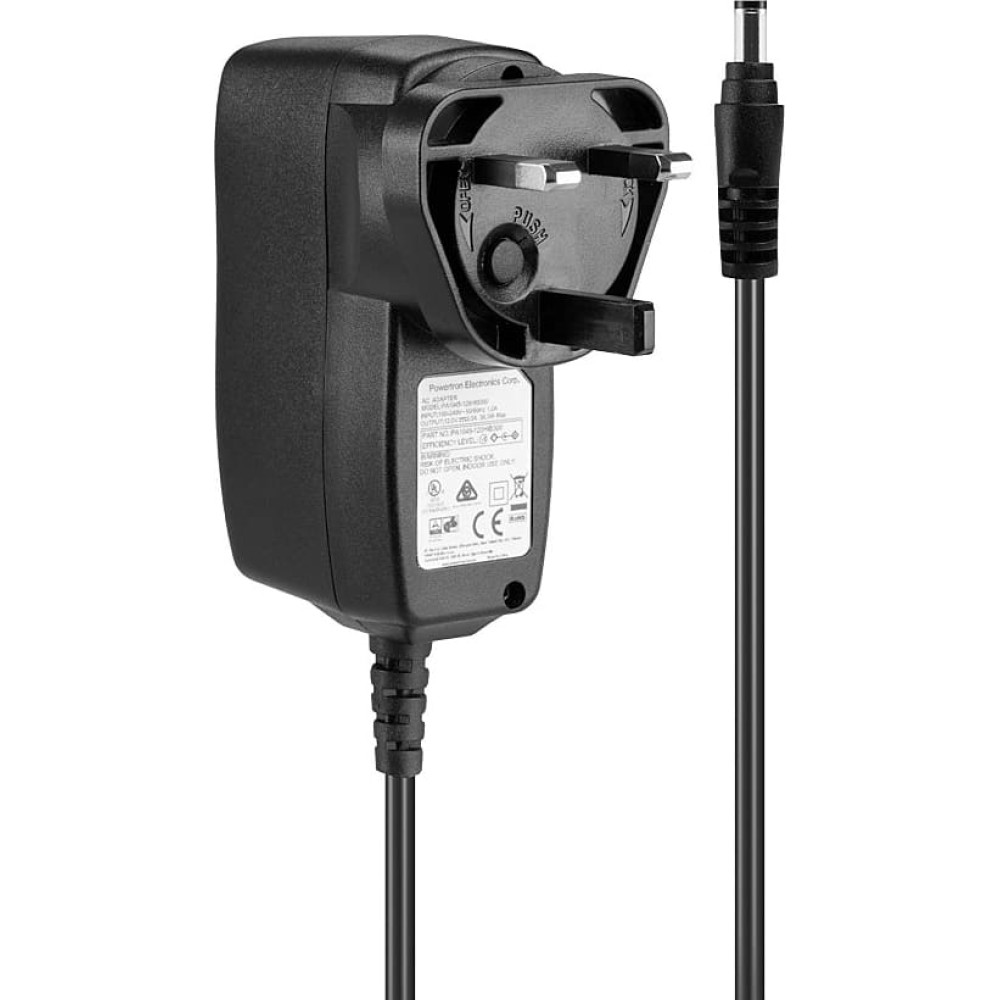

Lindy 12VDC 3A Multi-country Power Supply, 5.5/2.5mm

Produkta kods: 73809
Svītrkods: 4002888738095

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
cable length: 1.2 m
certification: LVD, ErP, UL, CCC, RCM, PSE
compliance certificates: REACH, RoHS
country of origin: CN
depth: 60 mm
efficiency: 0.87%
gross weight: 0.31
harmonized system (hs) code: 85044095
height: 93 mm
housing material: Plastic
input frequency: 50/60 Hz
input voltage: 100-240 V
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/95/67/97/62/62976795999c8d635dc13df1/LINDY_73809_11_17_26_MAN_1121.pdf
net weight: 0.21
operating relative humidity (h-h): 0 - 75%
operating temperature (t-t): 0 - 40 °C
output current: 3 A
output power: 36 W
output voltage: 12 V
package depth: 60 mm
package height: 120 mm
package weight: 265 g
package width: 155 mm
packaging height: 12.00
packaging lenght: 15.00
packaging width: 5.50
power supply type: Indoor
product colour: Black
storage relative humidity (h-h): 0 - 95%
storage temperature (t-t): -20 - 70 °C
warranty: 2
weight: 210 g
width: 43.5 mm

Preces apraksts

Specifications

  • Input Voltage: 100…240VAC
  • Input AC Frequency: 50…60Hz
  • Output Voltage: 12V
  • Output Voltage Accuracy: ±5%
  • Output Current (max.): 3A
  • Output Power: 36W
  • Average active efficiency: 0.874
  • Efficiency at low load (10%): 0.783
  • No-load Power Consumption: 0.1W

Physical Properties

  • Dimensions (approx.) WxDxH: 43.5x93x60mm (1.71x3.66x2.36in)
  • DC Cable Length: 1.2m (3.94ft)
  • DC Connector Size: 5.5/2.5mm
  • Housing Material: Plastic
  • Net Weight: 0.21kg (0.46lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Operating Humidity: 0 - 75% RH (Non-condensing)
  • Storage Humidity: 0 - 95% RH (Non-condensing)
  • Colour: Black

Miscellaneous

  • Manufacturer Name: Powertron
  • Commercial Registration No. : 12649262
  • Manufacturer Address: 6F, No.115, Lide St., Zhonghe Dist., New Taipei City 23556,Taiwan
  • Manufacturer Model No.: PA1045-120HIB300
  • Packaging Type: Carton Box
  • Packaging Dimensions: 155x60x120mm (6.1x2.36x4.72in)
  • Gross Weight: 0.265kg (0.58lb)
  • Warranty (Years): 2
  • Product Compliance: EMC, LVD, ErP, UL, CCC ,RCM, PSE, RoHS, REACH, California Proposition 65

Package Content

  • Multi-country Power Supply
  • UK, EU, US & AUS Adapters
  • Lindy Manual

Purchasing Information

  • No.: 73809
  • EAN: 4002888738095



Manuals: LINDY_73809_11_17_26_MAN_1121.pdf
