Home Cables Displayport Delock Cable mini Displayport 1.2 male with screw DVI male 4K Active black 1 m

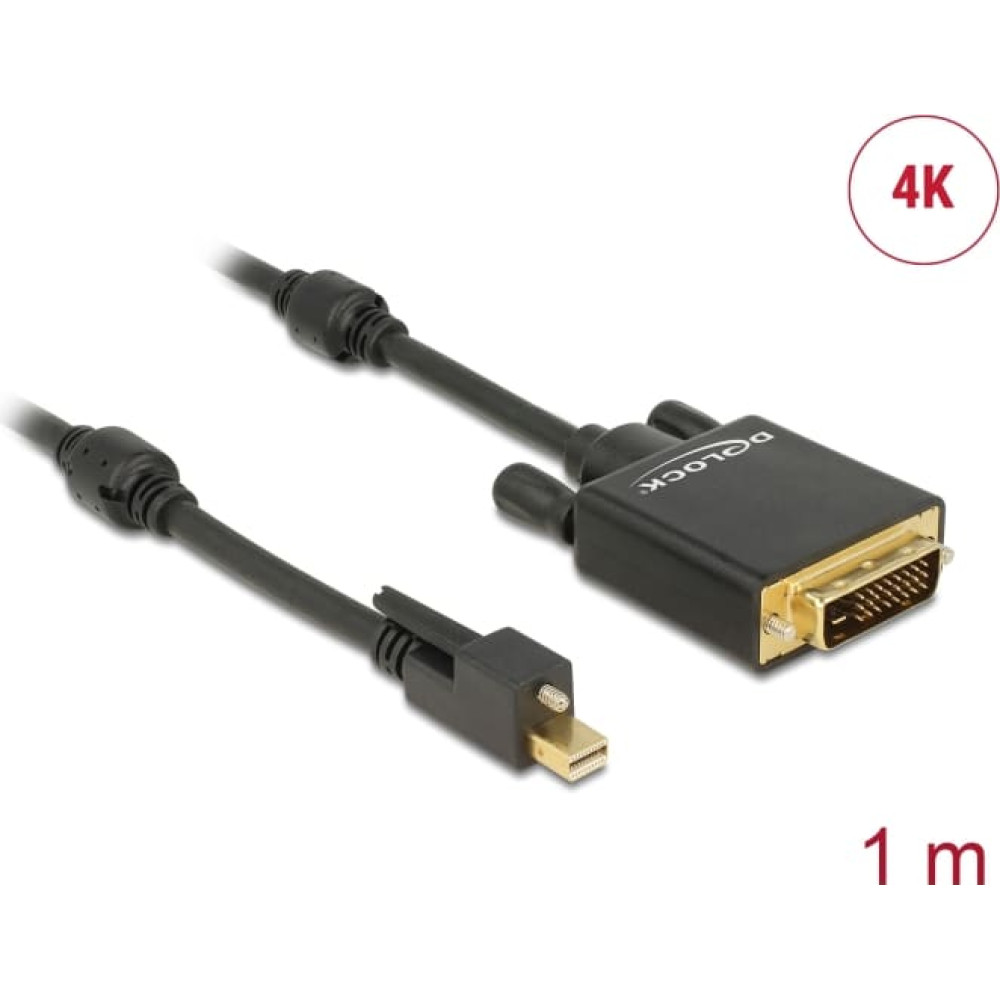

Delock Cable mini Displayport 1.2 male with screw DVI male 4K Active black 1 m

Product Code: 83725

Barcode 4043619837250

To purchase this product you must be registered in our system.

Description

Related products

Description

This cable enables you to connect a DVI monitor through a free mini DisplayPort interface. The cable supports a resolution up to Ultra HD (4K) and is backward compatible to Full-HD 1080p. The screw of the mini DisplayPort connector secures the connection and prevents accidental unplugging of the cable.

System requirements:
• A free mini DisplayPort female port

Specification:
• Connector:
mini DisplayPort 20 pin male with screw >
DVI-D (Dual Link) 24+1 male
• Input = mini DisplayPort; Output = DVI
• Screw type: #4-40, thread type UNC, thread class 3A, American Standard Screw
• Chipset: Parade PS171
• DisplayPort 1.2 specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Gold-plated connector
• Active cable, for graphics cards with DP and DP++ output
• Supports a resolution up to 4K (4096 x 2160 pixel @ 24 Hz or 3840 x 2160 pixel @ 30
Hz) - depending on the system and the connected hardware
• Supports HDCP 1.3
• Supports Eyefinity
• 2 x ferrite core
• Cable length: ca. 1 m (incl. connector)
• Colour: black
• OS independent, no driver installation necessary

Package content:
• Cable mini DisplayPort to DVI

Data sheet:
http://www.delock.de/produkt/83725/pdf.html?sprache=en
