Home Multimedia / Peripherals Transmitters / Amplifiers Roline HDMI over IP Extender, 4K30Hz, 120m, W/IR
Roline HDMI over IP Extender, 4K30Hz, 120m, W/IR

ROLINE

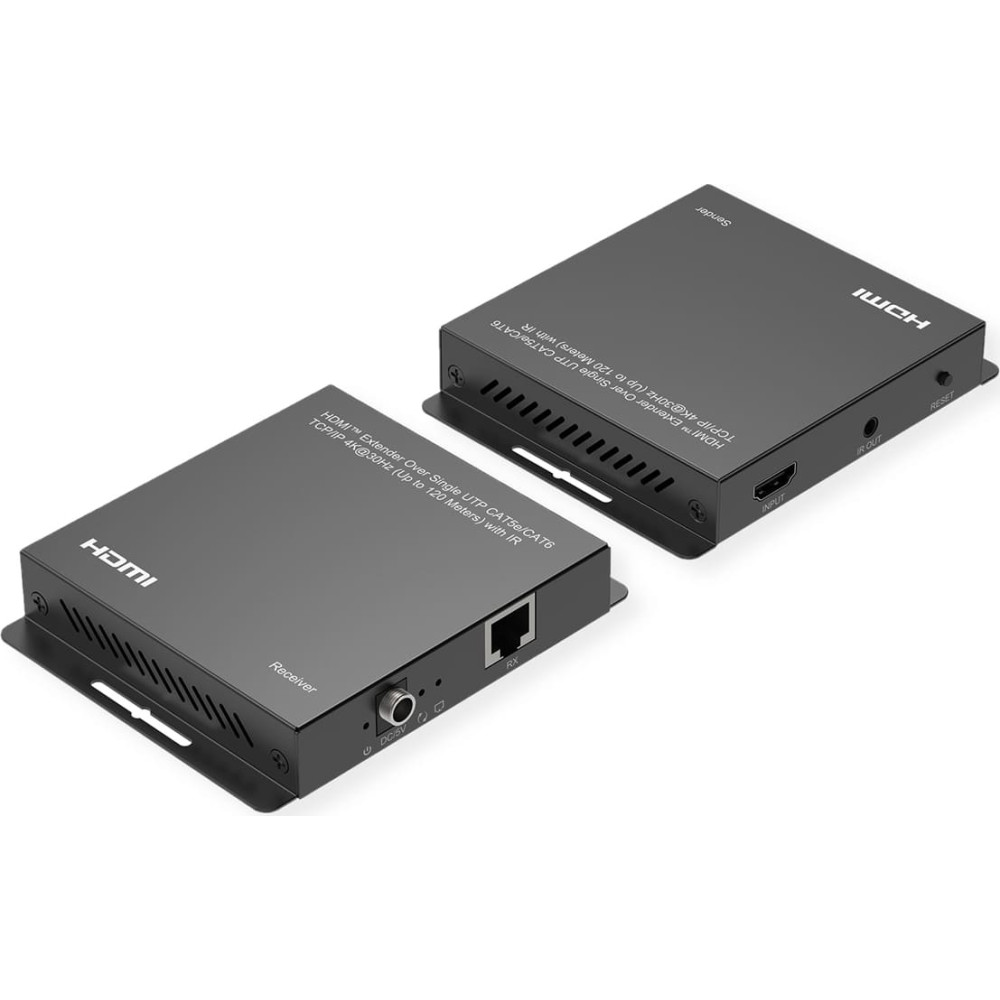

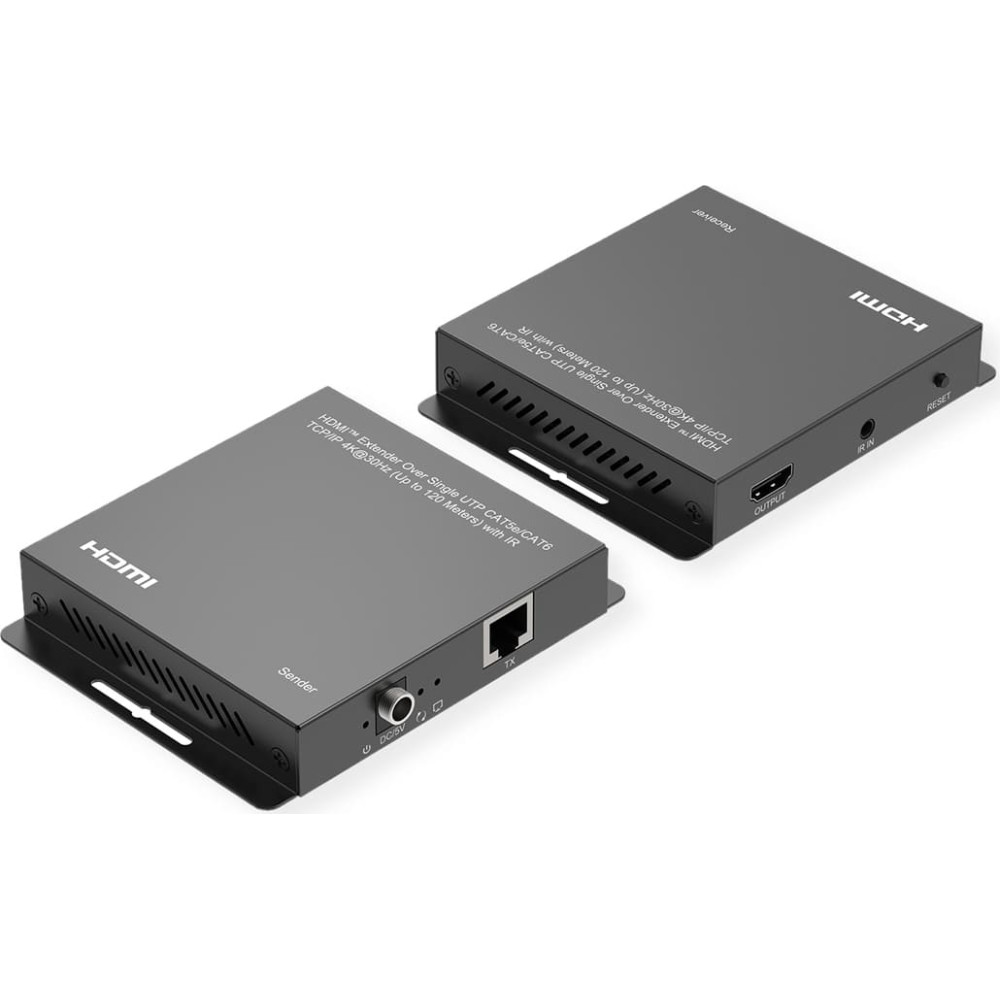

Roline HDMI over IP Extender, 4K30Hz, 120m, W/IR

Product Code: 14.01.3642
Barcode 7630049673397

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
audio: HDMI
audio input: HDMI
audio output: HDMI
colour: black
current catalog edition: C25-06.14
depth: 120 mm
depth of packaging (single piece): 300 mm
dimensions (hxwxd): TX: 24 x 94 x 120 mm, RX: 24 x 94 x 120 mm
gross weight: 1
height: 24 mm
height of packaging (single piece): 60 mm
inputs: 1
interface: HDMI
manufacturer: ROLINE
max. distance: 120 m
max. resolution: 3840 x 2160 @30Hz (4K, Full HD)
max. resolution (nom.): 3840 x 2160 @30Hz
operating temperature max.: 50 °C
operating temperature min.: 0 °C
outputs: 1
package weight (single piece): 1 kg
power supply output: DC 5V 1A
power supply unit: 2x
product group: Splitters and selectors
product type: HDMI Extender
scope of delivery: 1x Transmitter, 1x Receiver, 2x Power Supply (TX: 1x 5 VD...
technical particularity: Extends the signal up to 120m
video band width: 10.2 Gbps
video input: HDMI
video output: HDMI
weight: 428 g
width: 94 mm
width of packaging (single piece): 230 mm
Description

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with 4K@30Hz via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.

Suitable for advertising, studios, multimedia classrooms, etc.

  • Following TCP/IP standard
  • Supports resolutions up to 4K@30Hz
  • Max. distance is 120m
  • Supports max video bandwidth of 3.4Gbps/340MHz per channel (10.2 Gbps all channels)
  • Cat5e/6 cable needs to follow the standard of IEEE-568B
  • Features IR return, which enables you to control the video source from your video destination
  • Features 2 extension modes: simple mode (1:1) and allocation mode (1:N)
  • Stable metal casing
  • Dimensions: TX/RX: 24 x 94 x 120 mm
  • Weight: TX/RX: 214 g

  • Contents: 1x Transmitter, 1x Receiver, 2x Power Supply (TX: 1x 5 VDC 1A, RX: 1x 5VDC 1A), User Manual
