Specifications

• AV Interface: HDMI
• Interface Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance: 300m (984.24ft)
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: Pass-through
• Supported Audio: Pass-through
• Transmission Medium: 1 x Duplex LC (50/125µm)
• Laser Class (only for Fibre): 1
• Wavelength (only for Fibre): 850nm
• Special Features: Auto Laser Disabling Function

Connectors

• Transmitter Input: HDMI Type A (Male)
• Transmitter Output: Duplex LC

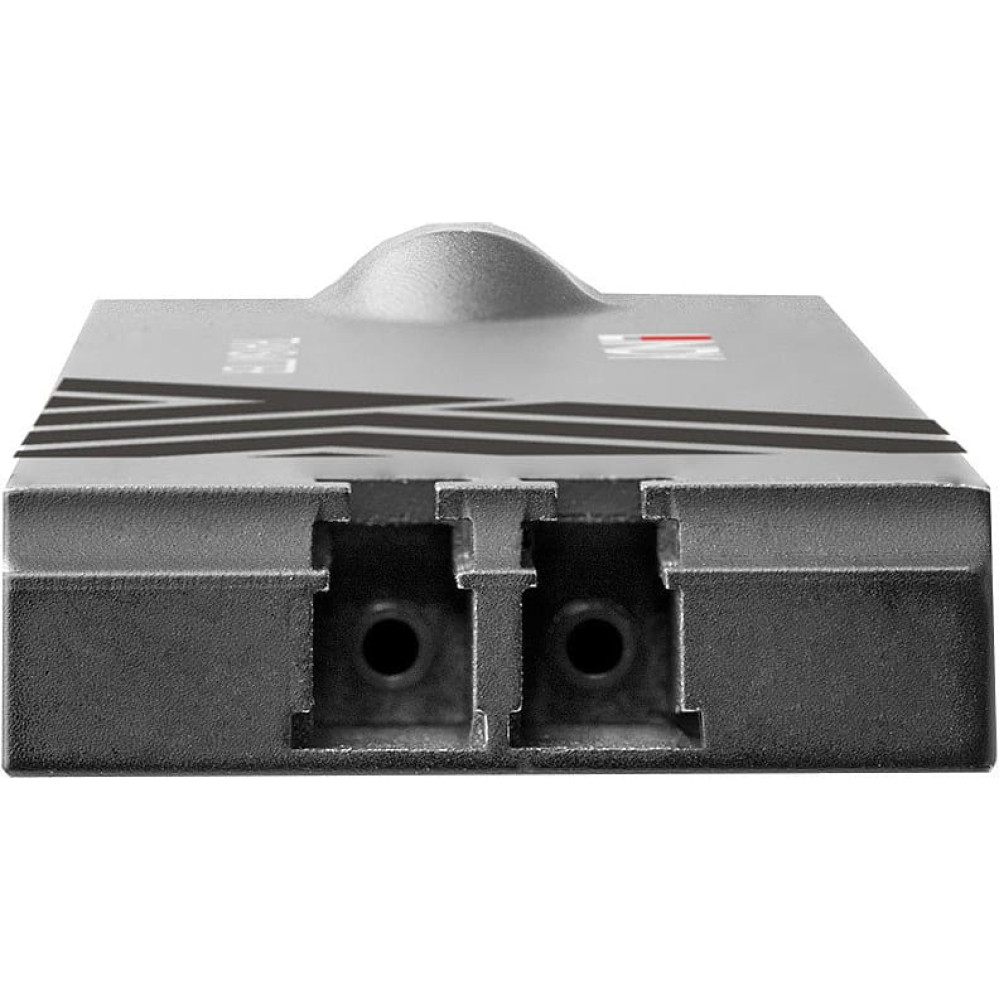

• Receiver Input: Duplex LC
• Receiver Ouput: HDMI Type A (Male)
• Power: USB Micro-B

Physical Properties

• Dimensions (approx.) WxDxH: 30x124.5x11.3mm (1.18x4.9x0.44in) per unit
• Housing Material: Metal
• Net Weight: 0.145kg (0.32lb) per unit
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: 10°C - 70°C (14°F - 158°F)
• Humidity: 0-85% RH (non-condensing)
• Power Requirements: 5V DC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 220x50x160mm (8.66x1.97x6.3in)
• Gross Weight: 0.56kg (1.23lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Content

• Transmitter unit
• Receiver unit
• 2 x USB A/Micro-B cable, 1m
• Lindy manual

Purchasing Information

• No.: 38179
• EAN: 4002888381796
