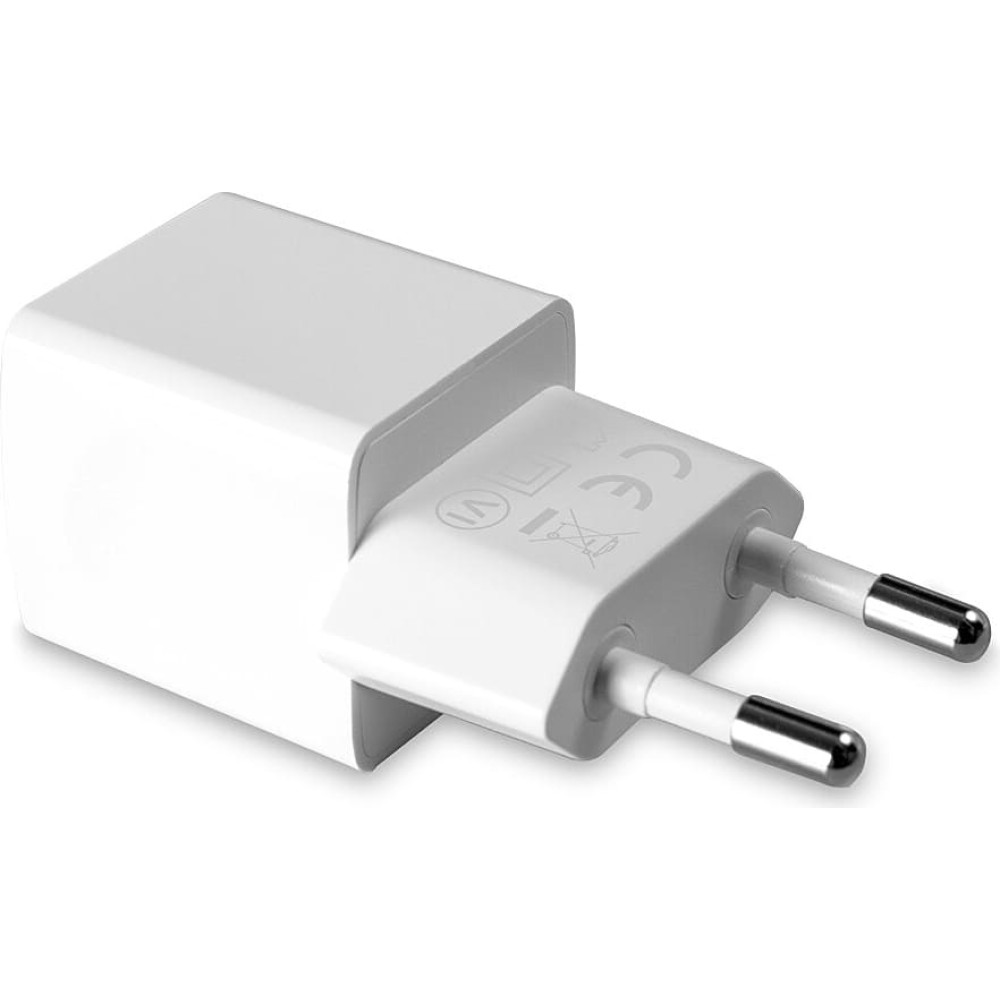

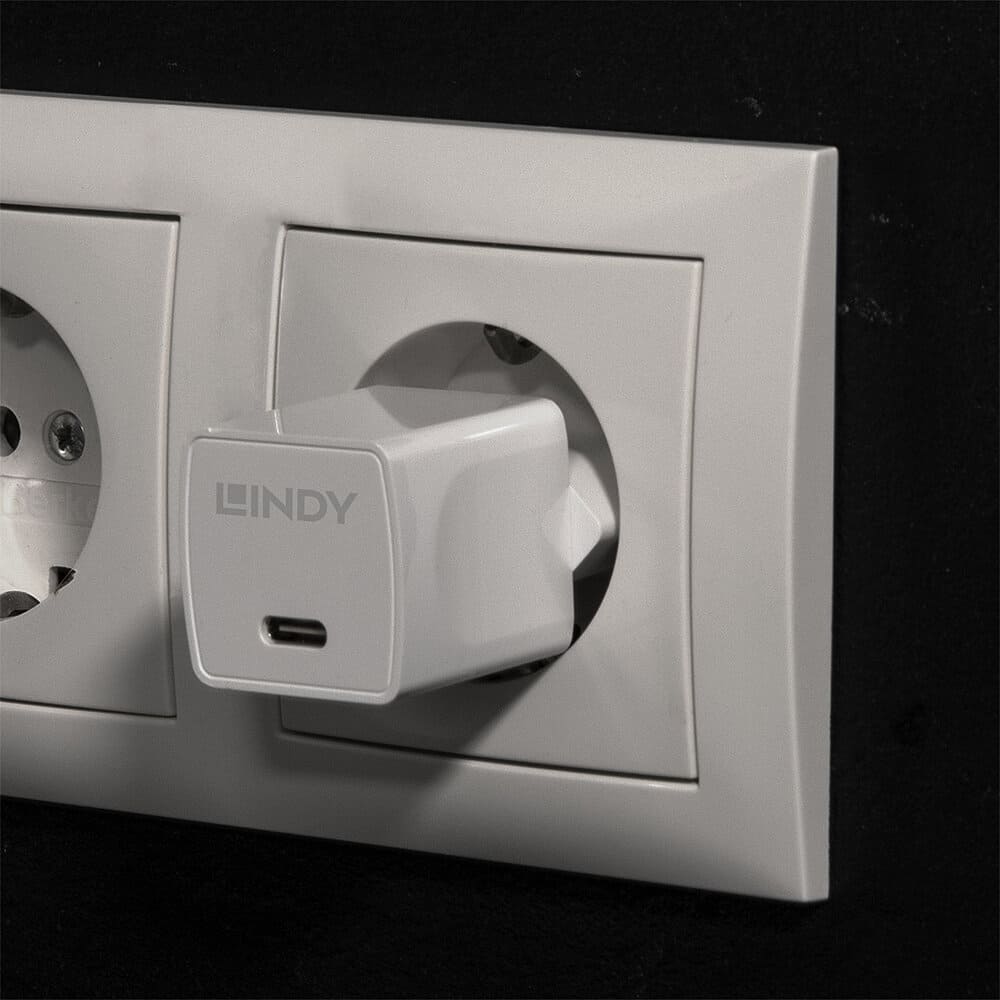

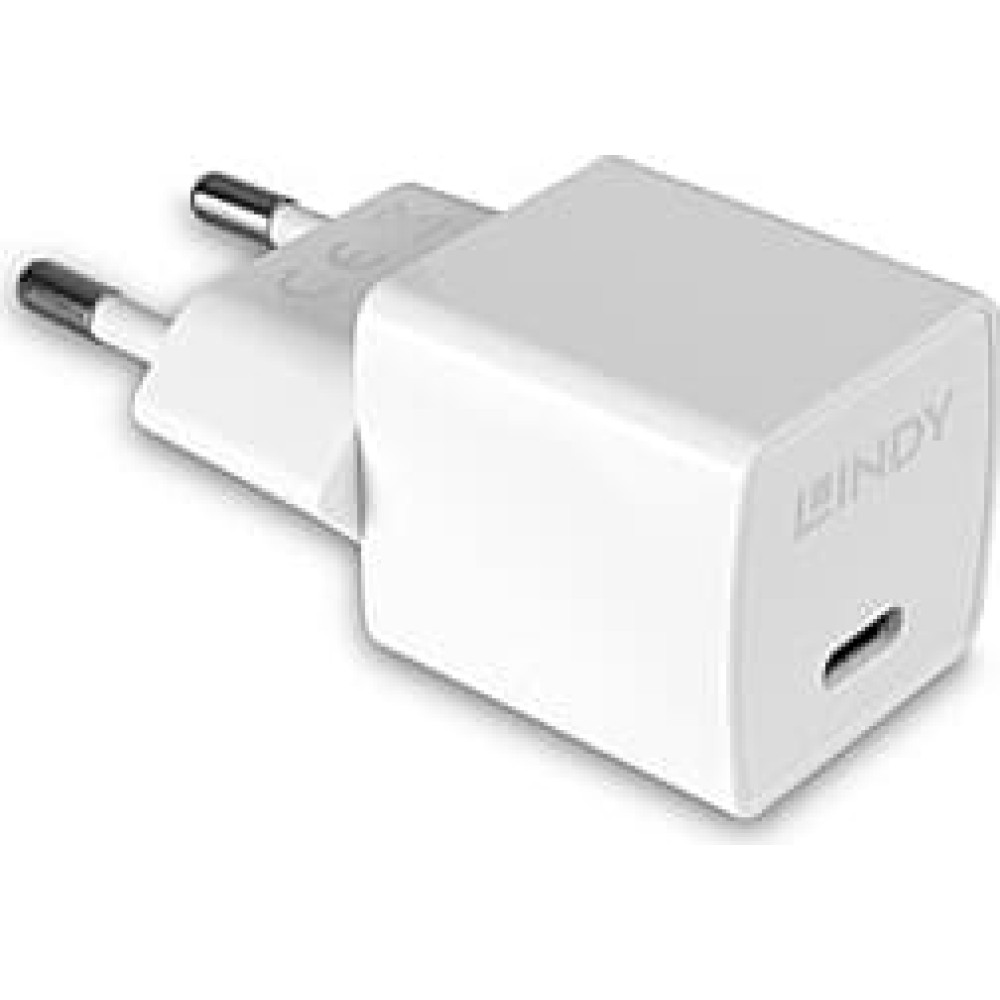

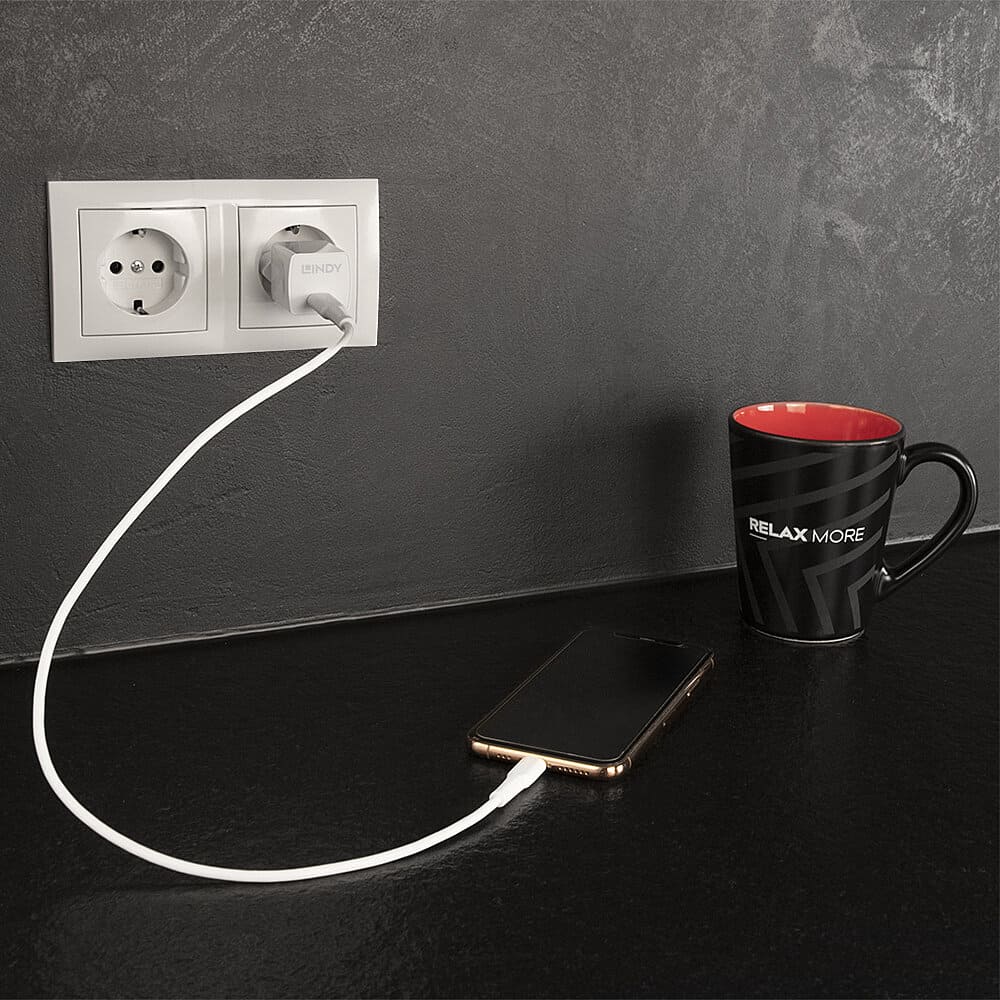

Lindy USB Typ C PD Charger 20W

Product Code: 73410

Barcode 4002888734103

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

ac adapter included: Yes

ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/af/d8/9b/65/659bd8afdbeea84b838f5545/CE_73410_V2.pdf

charger compatibility: Smartphone

charger type: Indoor

compliance certificates: CE, REACH, RoHS

connector material: Copper

country of origin: CN

depth: 28 mm

gallium nitride (gan) transistors: Yes

height: 29.6 mm

housing material: Plastic

input current: 0.6 A

input frequency: 50/60 Hz

input voltage: 100 - 240 V

manual: Yes

number of outputs: 1 outputs

number of simultaneously connected devices (max): 1

operating relative humidity (h-h): 0 - 90%

operating temperature (t-t): 0 - 25 °C

output current (12v): 1.67 A

output current (5v): 3 A

output current (9v): 2.22 A

output voltage accuracy (±): 5%

package depth: 80 mm

package height: 45 mm

package weight: 60 g

package width: 100 mm

packaging height: 45.0

packaging lenght: 100.0

packaging width: 80.0

plug and play: Yes

power consumption (no load): 0.075 W

power protection features: Over current, Over voltage, Overheating, Short circuit

power source type: AC

product colour: White

quantity per pack: 1 pc(s)

storage temperature (t-t): -20 - 80 °C

sustainability certificates: ErP

sustainability compliance: Yes

tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/2b/76/0c/63/630c762b87a534d7a871170b/73410_TDS_v1.pdf

usb power delivery (usb pd): Yes

usb power delivery revision: 3.0

usb power delivery up to: 20 W

usb type-c ports quantity: 1

variations: 73411

warranty: 2.0

warranty period: 2 year(s)

weight: 40 g

width: 31 mm

Description

Connectors

Input: Euro Plug
Output: USB Type C Female

Specifications

Power Input : 100-240VAC, 50/60Hz 0.6A
Power Output: 5V/3A, 9V/2.22A, 12V/1.67A
USB Power Delivery: PD 3.0
Max. Total Power: 20W
Output Voltage Accuracy: ± 5%
Average active efficiency: 5V 83.37%, 9V 87.32%,12V 86.40%
Efficiency at low load (10%): 80.06%
No-load Power Consumption: ≤ 0.075 W
Additional Features: Overcurrent, overvoltage, overtemperature and short circuit protection

Physical Properties

Dimensions (approx.) WxDxH: 28x31x29.6mm (1.1x1.22x1.17in)
Connector Material: Copper
Housing Material: PVC
Net Weight: 0.04kg (0.09lb)
Operating Temperature: 0°C - 25°C (32°F - 77°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
Humidity: 0 – 90% RH (non-condensing)
Colour: White

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 80x100x45mm (3.15x5.12x1.77in)
Gross Weight: 0.06kg (0.13lb)
Warranty (Years): 2
Certification: CE, RoHS, REACH, ErP

Package Contents

20W USB Type C PD Charger
Lindy Manual

Purchasing Information

No.: 73410
EAN: 4002888734103
