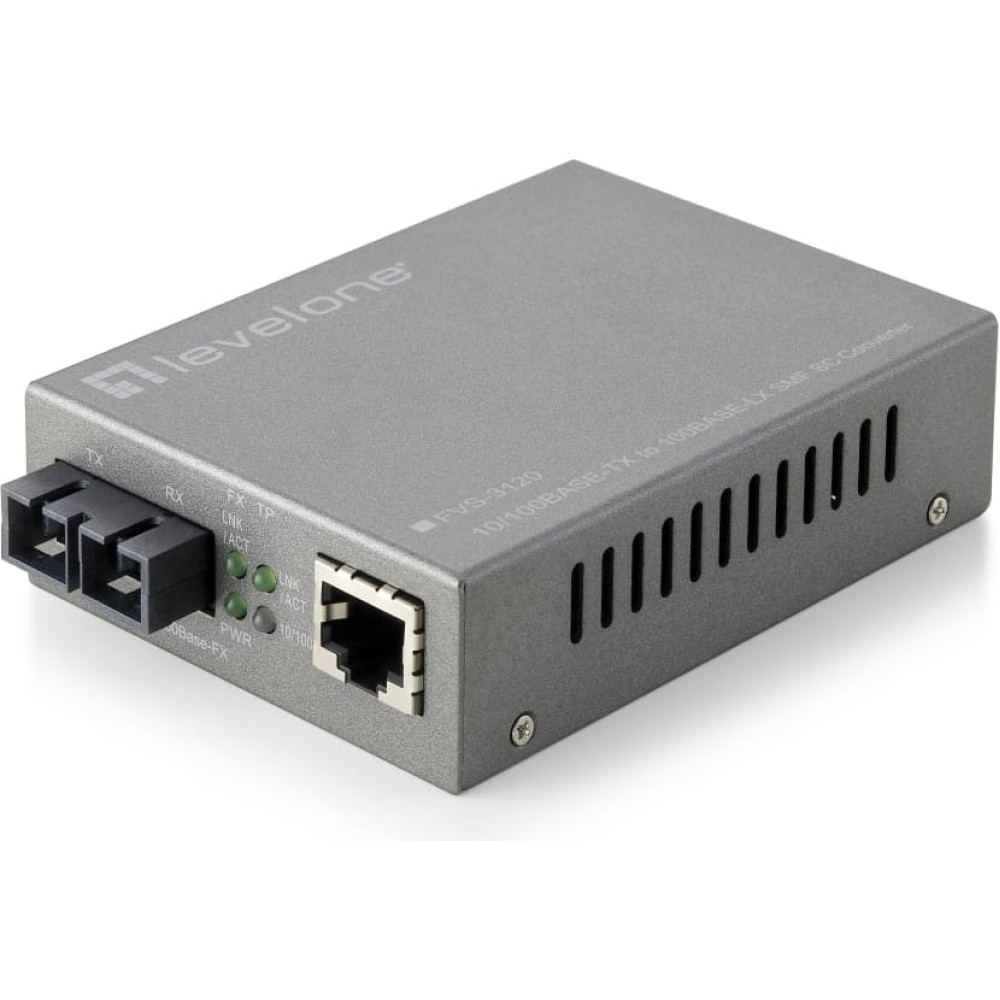

Level One LevelOne Konverter FVS-3120 10/100TX>100LX SC SM
To purchase this product you must be registered in our system.
Specification
certification: FCC Part 15 Class A, CE
connectivity technology: Wired
converter input interface: 10Base-T, 100Base-TX
converter output interface: 100Base-LX
country of origin: Taiwan
dc-in jack: Yes
depth: 94 mm
ethernet interface type: Fast Ethernet
ethernet lan (rj-45) ports: 1
ethernet lan data rates: 10,100 Mbit/s
external power adapter: Yes
fiber cable diameters supported (core/cladding): 3/125,8.7/125,9/125,10/125 µm
fiber mode structure: Single-mode
fiber optic connector: SC
fiber ports quantity: 1
flow control support: Yes
height: 26.2 mm
input current: 1 A
input voltage: 5 V
internal: No
jumbo frames support: Yes
manual: Yes
maximum data transfer rate: 100 Mbit/s
maximum transfer distance: 20000 m
networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
operating relative humidity (h-h): 5 - 90%
operating temperature (t-t): 0 - 50 °C
package depth: 220 mm
package height: 60 mm
package weight: 460 g
package width: 160 mm
power consumption (typical): 1.5 W
product colour: Grey
width: 70.3 mm
Description
| The LevelOne Web Smart Media Converter FVS-3120 is designed to make conversion between 10/100BASE-TX and 100BASE-LX SMF SC Ethernet. With web-based management, the network administrator can logon to the converter remotely to monitor, configure and control the status of each unit. The overall network reliability is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications. - HTTP Management with remote firmware upgrade supported - ICMP and ARP protocols supported - DHCP Client for easy IP address setup - LLR (Link Loss Return) supported - IEEE 802.1Q VLAN and Double VLAN (Q-in-Q) supported - Support 802.3x Flow Control to prevent lost data by controlling the device flow loading |
