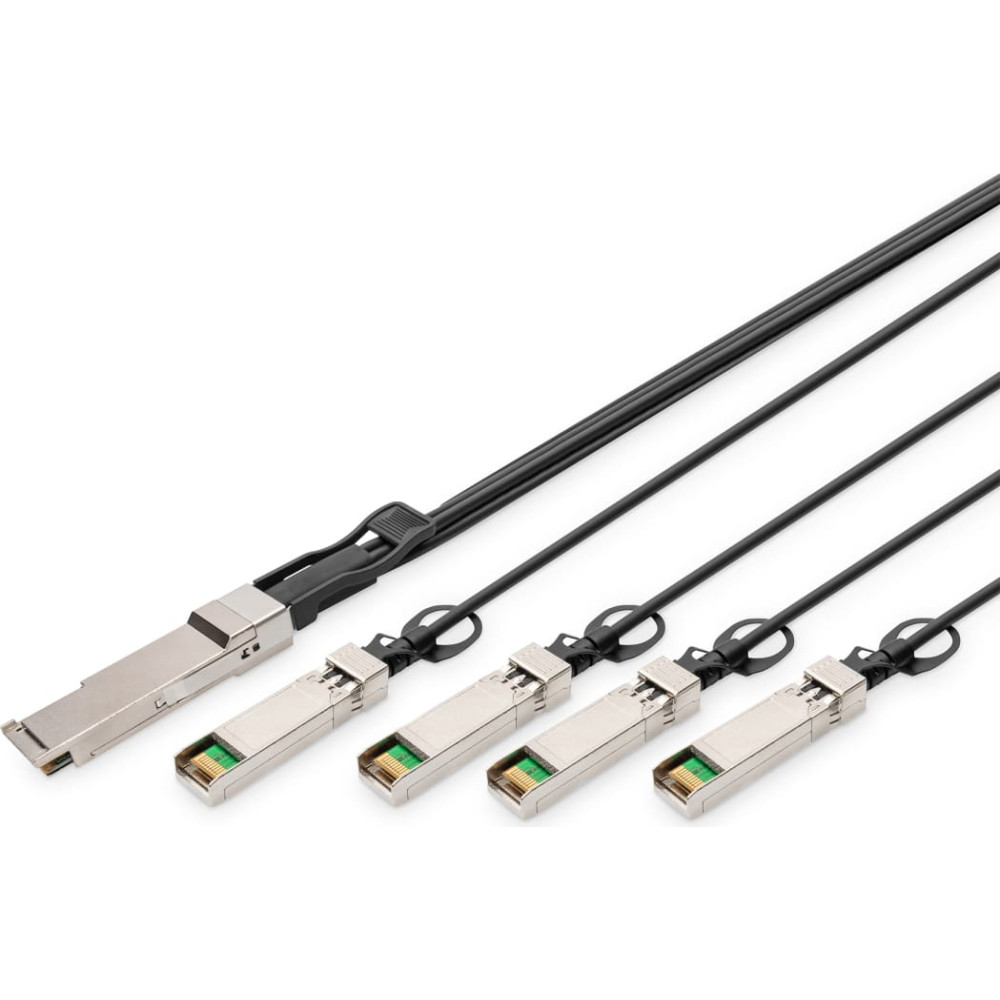

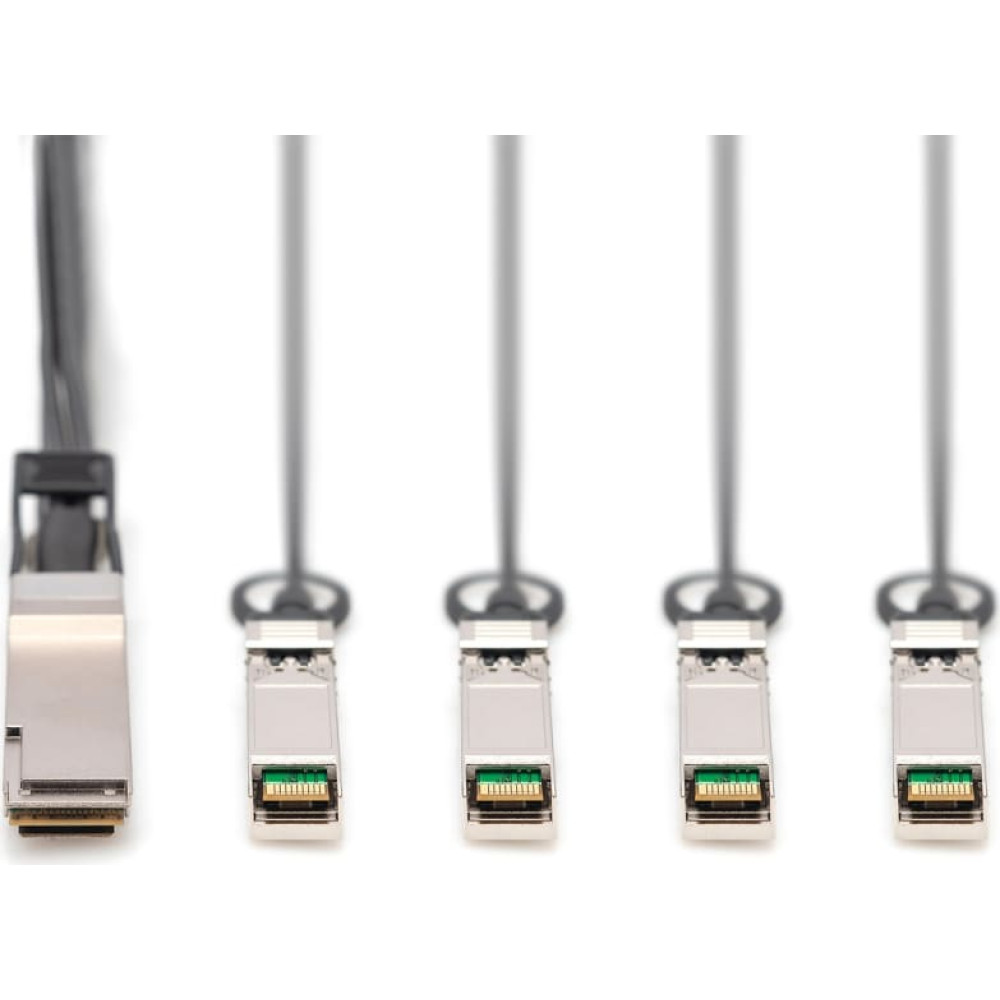

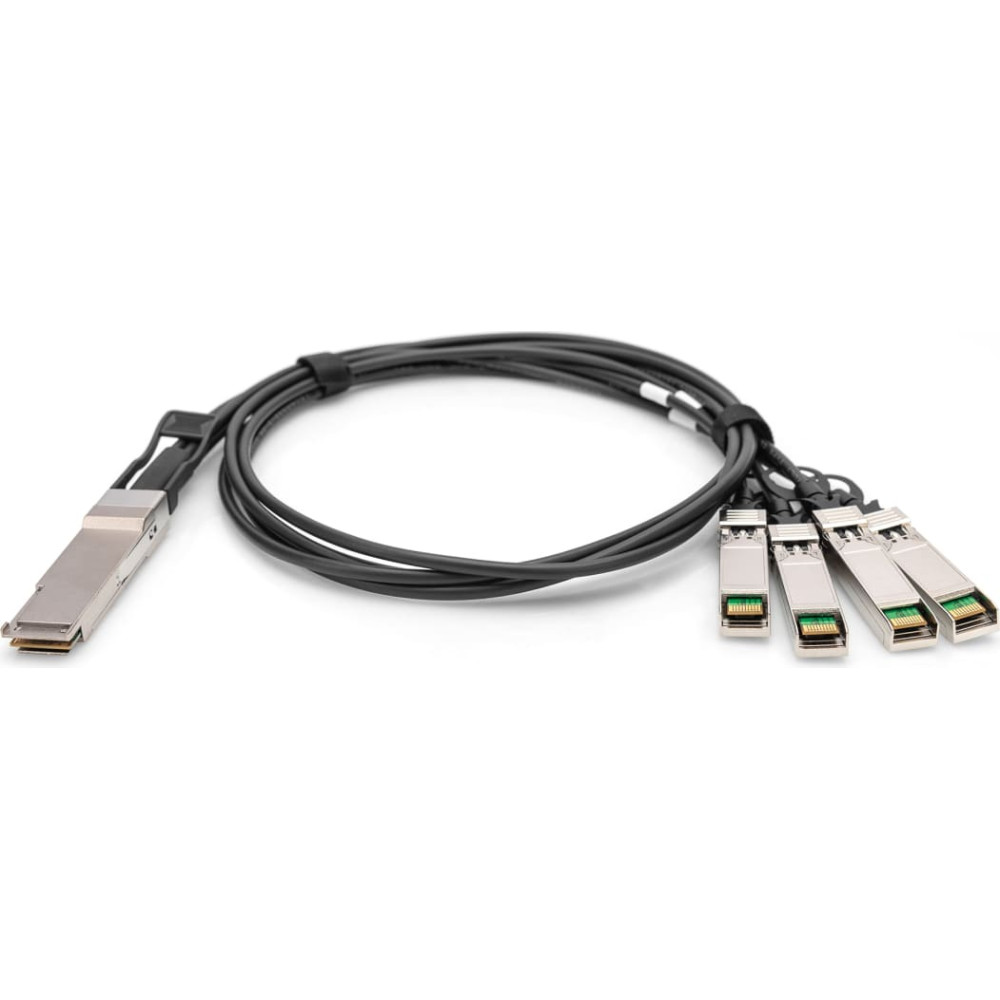

Digitus 40G QSFP+ to 4XSFP+ Direct Attach Cable 5m

Product Code: DN-81325

Barcode 4016032485018

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

depth: 0.300

height: 0.050

height(cm): 3

length(cm): 26

volume(cm3): 2028

weight(kg): 0.214286

width: 0.290

width(cm): 26

Description

DAC Breakout cabel 5 m 1x 40G to 4x 10G 1x 40G to 4x 10 G

Up to 10. 3125Gbps data rate per channel, Up to 5m transmission, Operating temperature: 0°C~70°C, Single +3.3V power supply

Up to 10. 3125Gbps data rate per channel
Operating temperature: 0°C~70°C
Single +3.3V power supply
40G Ethernet
Compliant with SFF- 8436,
SFF-8431, SFF-8432,SFF-8472
Supports 40G to 4x 10G Ethernet interoperability
Cable length: 5m

The DN- 81325 Breakout DAC cables QSFP+ to 4xSFP+ is optimized to be used in Datacenter. They meet the ever increasing demand for higher channel density with high-level signal integrity in high performance computing, core switches and NAS Systems.

DDM Support: false
Channel Data Rate 10.3125 Gbps
Operating Temperature 0 to + 70°C
Storage Temperature -40 to + 85°C
Supply Voltage 3.3 V nominal
Electrical Interface 38 pins edge connector(QSFP+)
20 pins edge connector(SFP+)
Management Interface Serial, I2C
Cable length: 5m
Compatible with the following manufacturers: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL

Package content:
40G QSFP+ to 4XSFP+ Direct Attach Cable 5m
