Level One LevelOne SFP Transceiver 1.25G Single-Mode 10km 1310nm
To purchase this product you must be registered in our system.
Specification
certification: CE, FCC
compliance certificates: RoHS
copper ethernet cabling technology: 1000BASE
country of origin: China
depth: 57 mm
digital diagnostics monitoring (ddm): Yes
duplex system: Full
fiber cable diameters supported (core/cladding): 9/125 µm
fiber optic connector: LC
harmonized system (hs) code: 85369010
height: 12 mm
hot-swap: Yes
interface type: SFP
master (outer) case gross weight: 6.67 kg
master (outer) case height: 268 mm
master (outer) case length: 375 mm
master (outer) case width: 310 mm
maximum current: 0.3 A
maximum data transfer rate: 1250 Mbit/s
maximum transfer distance: 10000 m
maximum voltage: 3.47 V
multi-mode fiber (mmf) supported: No
networking standards: IEEE 802.3z
operating relative humidity (h-h): 0 - 85%
operating temperature (t-t): 0 - 70 °C
package depth: 106 mm
package height: 20 mm
package type: Box
package weight: 39 g
package width: 65 mm
pallet gross length: 80 cm
pallet gross width: 120 cm
pallet height (air): 166.9 cm
power consumption (typical): 0.8 W
product colour: Silver
products per master (outer) case: 150 pc(s)
products per pallet: 35 pc(s)
quantity per pack: 1 pc(s)
rx power (max): 2 dBmW
rx power (min): -25 dBmW
sfp transceiver type: Fiber optic
single-mode fiber (smf) supported: Yes
storage temperature (t-t): -40 - 85 °C
tx power (max): -3 dBmW
tx power (min): -9.5 dBmW
user guide: Yes
wavelength: 1310 nm
weight: 20 g
width: 14 mm
Description

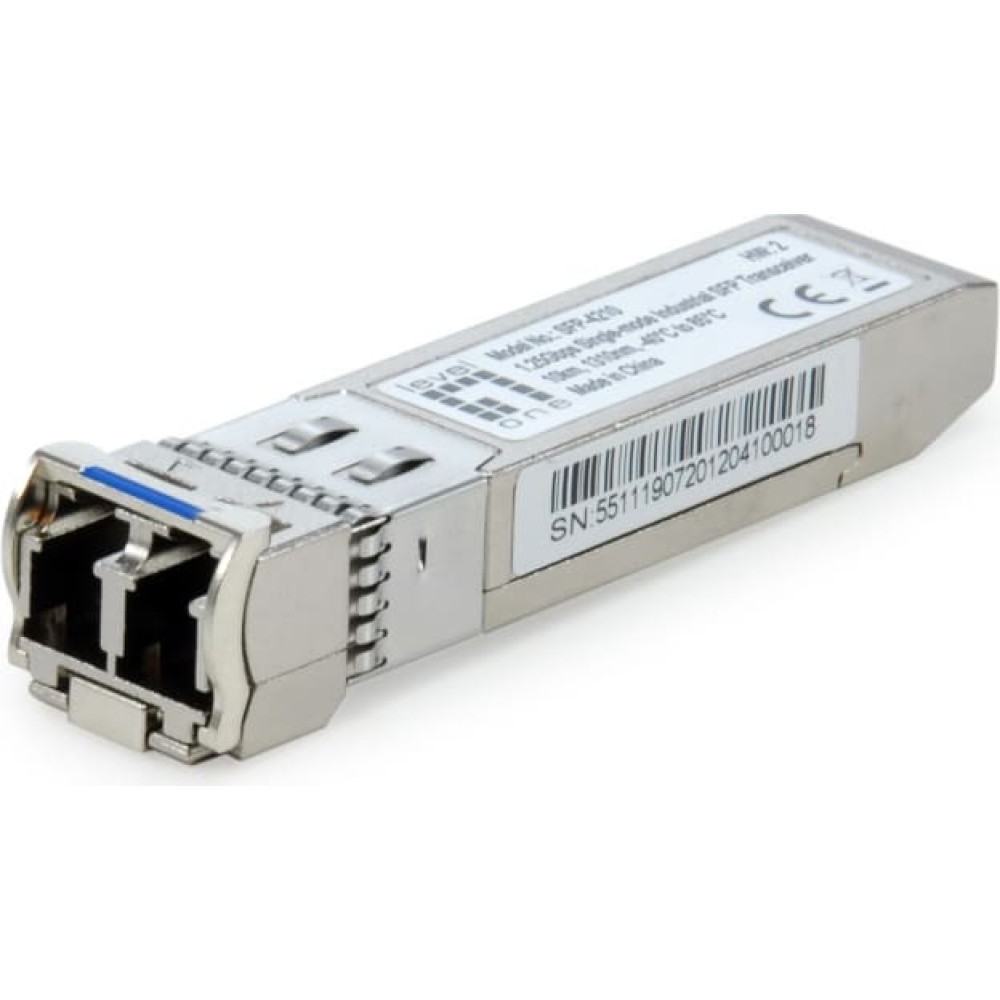

| LevelOne SFP-4210 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 10km. The SFP-4210 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has an LC port. This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation. |
Level One LevelOne SFP-4310 tīkla raiduztvērēja modulis Optiskā škiedra 1250 Mbit/s
Product Code: SFP-4310
