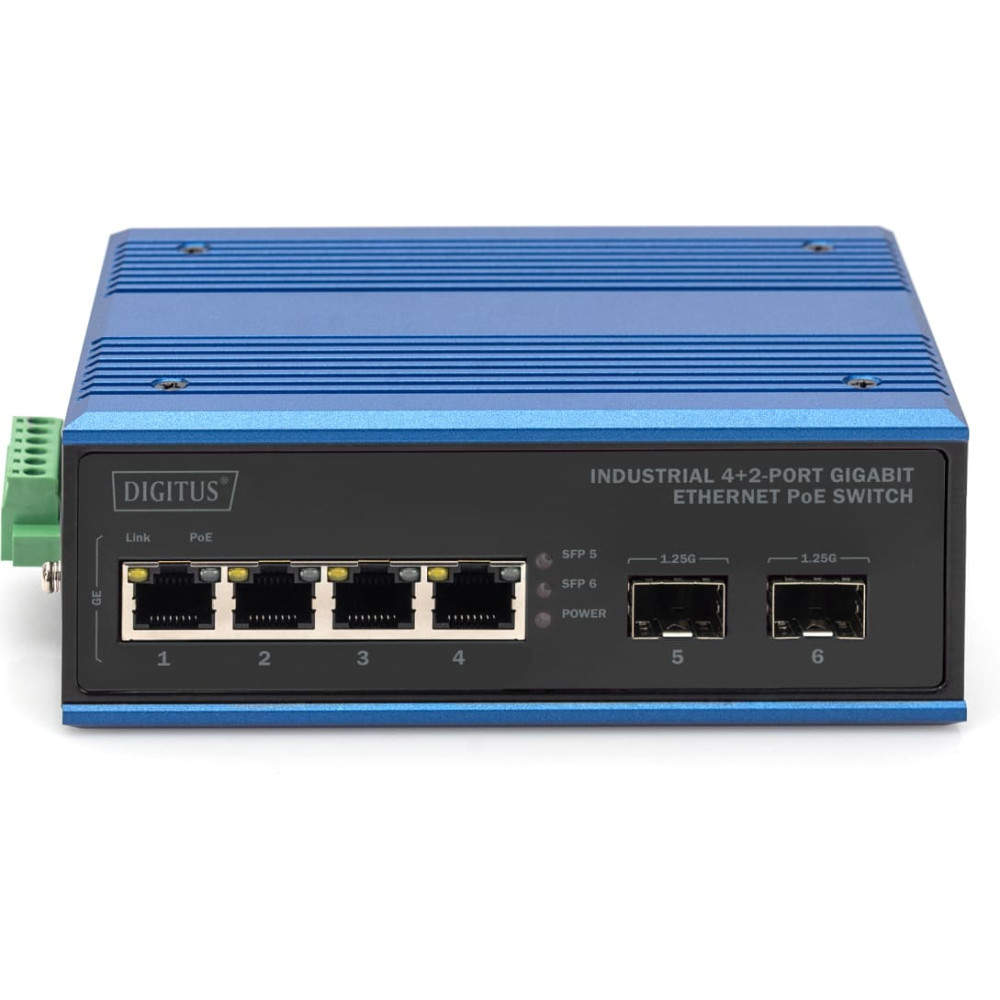

Digitus Industrial 4+2 port Gigabit Ethernet PoE switch
To purchase this product you must be registered in our system.
Specification
country of origin: CN
depth: 0.220
height: 0.070
height(cm): 21.3
length(cm): 6.6
volume(cm3): 2221.16
weight(kg): 0.857143
width: 0.160
width(cm): 15.8
Description

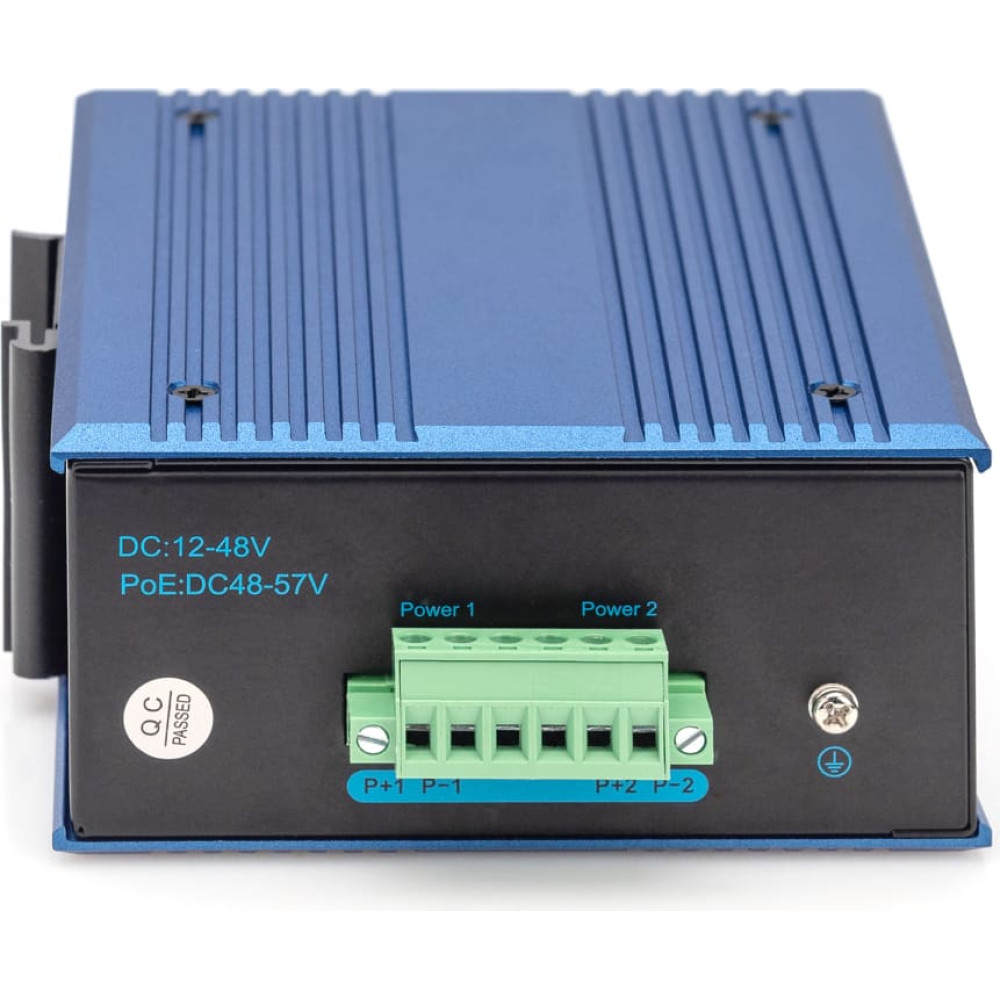

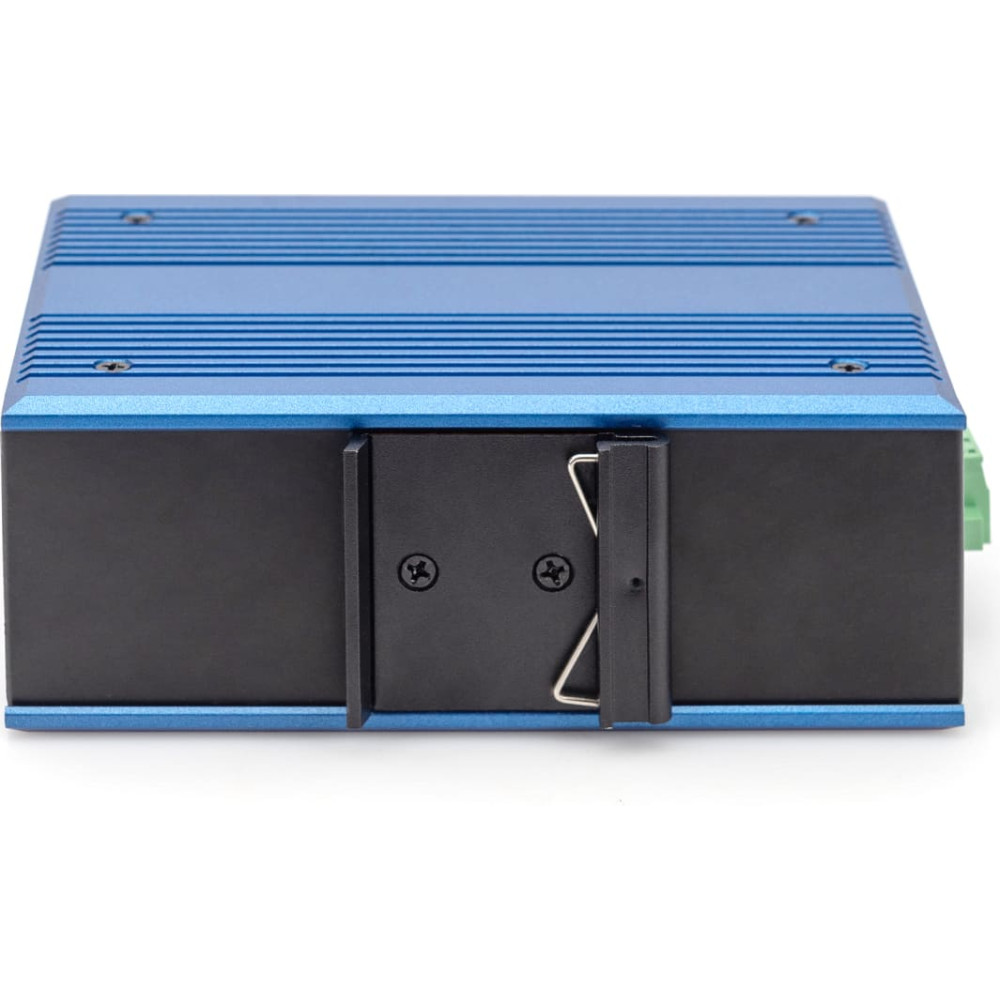

| Industrial 4+2-Port Gigabit Ethernet PoE Switch 4 Port GE PoE RJ45, 2 GE SFP Port 4 x PoE 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40°C to 80°C. Number of network connections: 4 GE ports, 2 SFP GE ports Transmission speed of the RJ45 network ports: 4 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at) Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP) Redundant power supply 48-57 V (DC) Metal housing to IP40 standard Simple mounting on a top-hat rail Operating temperature from - 40° up to 80° C Simple plug & play installation ESD & EFT protection up to 6 kV (DC) Ideal for connecting camera systems The DN-651149 is a robust 4+2 port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 4x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 2x 1000 Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40°C to 80°C. Number of ports: 4 PoE Power budget: 100 W PoE standard: IEEE802.3af (PoE) Ethernet speed: Gigabit Industrial usage: true Managed: false Number of ports (Uplink): 2 Outdoorsuitable: false PoE (Power over Ethernet): true Protection against vanadlism: false Uplink port connection: RJ45/SFP VLAN: false Supports IEEE802.3x flow control, and backpressure Supports store-and-forward technology for optimized data transmission Automatic speed and half/full duplex detection/adjustment 4 port PoE with up to 30 W Bandwidth: 14 Gbps Packet buffer: 1.2 Mbit Packet forwarding size: 10.5 Mbps Size of the MAC address table: 2K Jumbo frame rate: 9000 byte ESD protection: 6 kV (DC) EFT protection: 6 kV (DC) Metal housing, IP40 4 kV lightning protection and surge protection Suitable for mounting on DIN rail (top-hat rail) Redundant power supply with reverse polarity protection function Power supply: 48 to 57 V Power consumption: <5 W V-LAN: no Removable terminal connection Protection class: IP40 Dimensions: 142.5 x 107.1 x 53.5 mm Weight: 0.54 kg Operating temperature: -40 to 80 ° C Storage temperature: -40 to 80 ° C Humidity: 5% to 95% (non-condensing) MTBF: 300,000 Maximum power / connection (W): 100 W Package content: 1x Industrial Gigabit Ethernet PoE Switch 1x user manual |
