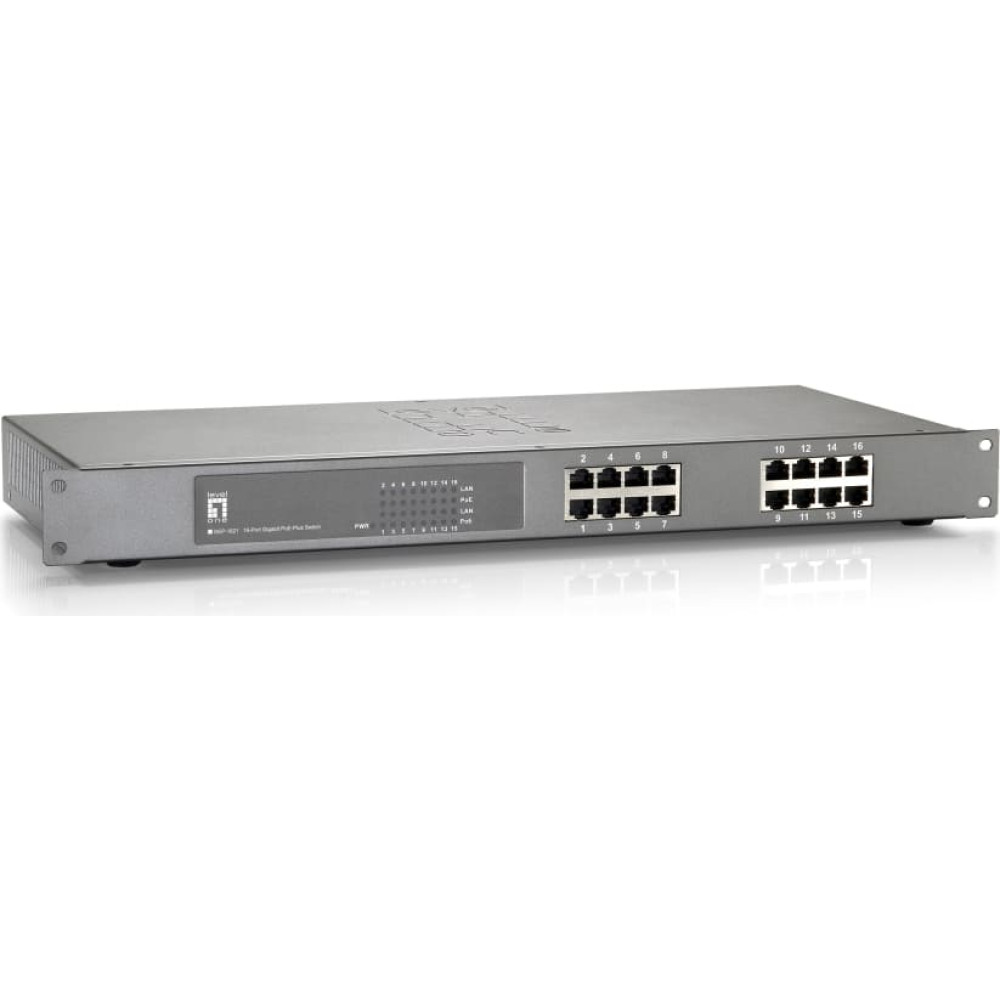

Level One LevelOne Switch 16x GE GEP-1621 19" 250W 16xPoE+
To purchase this product you must be registered in our system.
Specification
10g support: No
ac input frequency: 50 - 60 Hz
ac input voltage: 100 - 240 V
basic switching rj-45 ethernet ports quantity: 16
basic switching rj-45 ethernet ports type: Gigabit Ethernet (10/100/1000)
buffer size: 256 KB
cables included: AC
certification: FCC Part 15 Class A, CE, RoHS
copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
country of origin: Taiwan
depth: 200 mm
full duplex: Yes
harmonized system (hs) code: 85176990
height: 44 mm
jumbo frames: 9000
jumbo frames support: Yes
led indicators: Activity, Link, PoE, Power
mac address table: 8192 entries
networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
operating relative humidity (h-h): 5 - 90%
operating temperature (t-t): 0 - 50 °C
package depth: 96 mm
package height: 540 mm
package type: Box
package weight: 3.8 kg
package width: 260 mm
packet forwarding rate (1 gbps): 1488000 pps
packet forwarding rate (10 mbps): 14880 pps
packet forwarding rate (100 mbps): 148000 pps
power consumption (typical): 250 W
power over ethernet (poe): Yes
power over ethernet plus (poe+) ports quantity: 16
product colour: Grey
quick start guide: Yes
rack mounting: Yes
stackable: No
storage relative humidity (h-h): 5 - 90%
storage temperature (t-t): -40 - 70 °C
store-and-forward: Yes
switch type: Unmanaged
switching capacity: 32 Gbit/s
total power over ethernet (poe) budget: 240 W
weight: 2.9 kg
width: 480 mm
Description

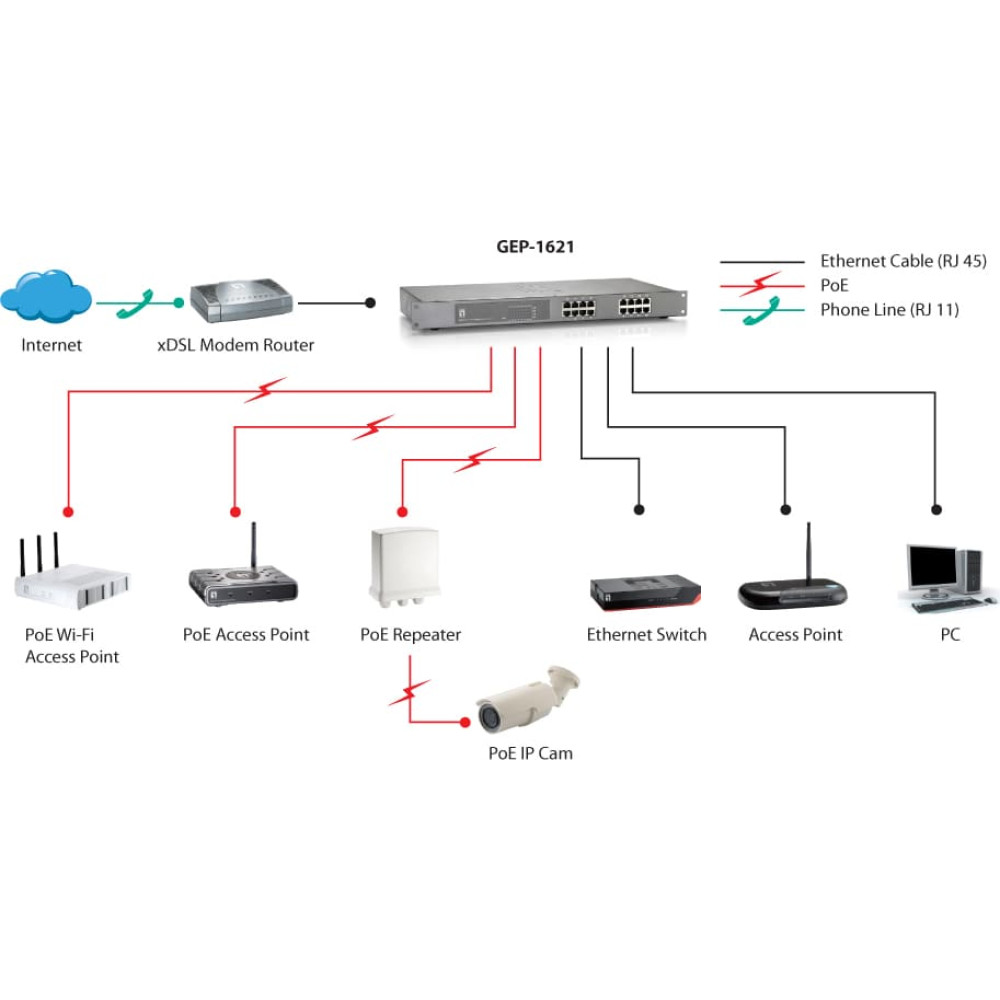

| The LevelOne GEP-1621 is a Gigabit PoE-Plus Switch with 16 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 240W, up to 30W per port. Ideal for desktops, it is also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-1621 is designed for small-to-median businesses that prefers an affordable solution for PoE deploying infrastructure. - 16 PoE-Plus Gigabit Ethernet ports - 10/100/1000Mbps wire speed transmission and reception - IEEE 802.3af/at PoE compliant to simplify deployment and installation - Auto-detection and protection of non-standard PoE devices - 9K jumbo frames to increase data transfer rates - Supports 8K MAC address auto-learning and auto-aging - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az) - 19-inch metal housing - Total PoE power budget: 240W, up to 30W per port |
