Lindy 24VDC 1.25A Multi-country Power Supply, 5.5/2.1mm

LINDY

Lindy 24VDC 1.25A Multi-country Power Supply, 5.5/2.1mm

Product Code: 73826
Barcode 4002888738262

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
adjustable output voltage: No
cable length: 1.5 m
certification: EMC LVD ErP UL CCC RCM PSE RoHS REACH California Proposition 65
depth: 72 mm
efficiency: 86%
harmonized system (hs) code: 85044095
height: 38 mm
housing material: Plastic
input frequency: 50/60 Hz
input voltage: 100 - 240 V
operating relative humidity (h-h): 0 - 75%
operating temperature (t-t): 0 - 40 °C
output current: 1.25 A
output power: 30 W
output voltage: 24 V
package depth: 40 mm
package height: 120 mm
package type: Box
package weight: 240 g
package width: 140 mm
power current type: AC-to-DC
power supply type: Indoor
product colour: Black
purpose: Universal
quantity per pack: 1 pc(s)
storage relative humidity (h-h): 0 - 95%
storage temperature (t-t): -20 - 70 °C
sustainability compliance: Yes
weight: 150 g
width: 50 mm
Description

Specifications

  • Input Voltage: 100…240VAC
  • Input AC Frequency: 50…60Hz
  • Output Voltage: 24V
  • Output Voltage Accuracy: ±5%
  • Output Current (max.): 1.25A
  • Output Power: 30W
  • Average active efficiency: 0.8695
  • Efficiency at low load (10%): 0.777
  • No-load Power Consumption: 0.1W



Physical Properties

  • Dimensions (approx.) WxDxH: 50x72x38mm (1.97x2.83x1.5in)
  • DC Cable Length: 1.5m (4.92ft)
  • DC Connector Size: 5.5/2.1mm
  • Housing Material: Plastic
  • Net Weight: 0.15kg (0.33lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Operating Humidity: 0 - 75% RH (Non-condensing)
  • Storage Humidity: 0 - 95% RH (Non-condensing)
  • Colour: Black



Miscellaneous

  • Manufacturer Name: Powertron
  • Commercial Registration No. : 91441900082613400
  • Manufacturer Address: 6F, No.115, Lide St., Zhonghe Dist., New Taipei City 23556,Taiwan
  • Manufacturer Model No.: PA1024-240IB125
  • Packaging Type: Carton Box
  • Packaging Dimensions: 140x40x120mm (5.51x1.57x4.72in)
  • Gross Weight: 0.24kg (0.53lb)
  • Warranty (Years): 2
  • Certificated: EMC
  • LVD
  • ErP
  • UL
  • CCC
  • RCM
  • PSE
  • RoHS
  • REACH
  • California Proposition 65



Package Content

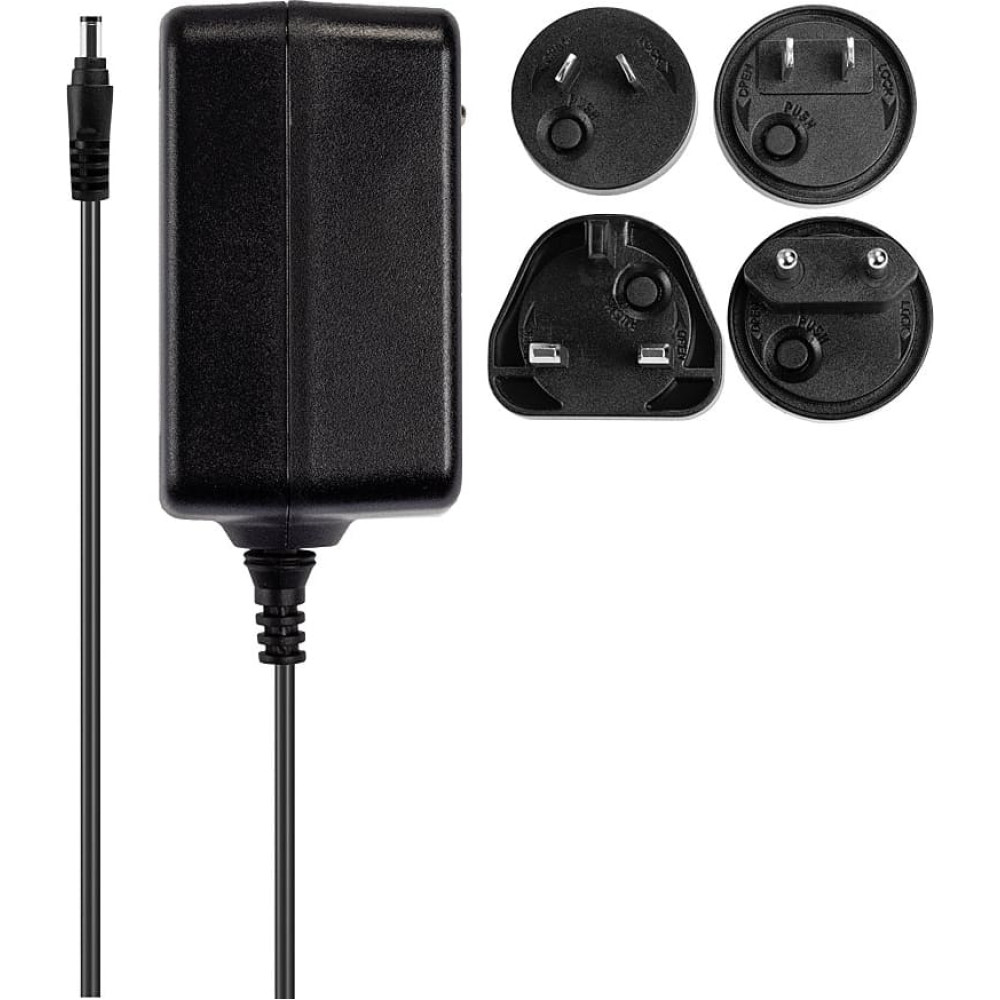

  • Multi-country Power Supply
  • UK, EU, US & AUS Adapters
  • Lindy Manual



Purchasing Information

  • No.: 73826
  • EAN: 4002888738262
