Specifications

• AV Interface: DisplayPort to HDMI®, VGA, DVI
• Interface Standard: DisplayPort 1.2, HDMI® 1.4, VGA, DVI-D
• Supported Bandwidth: 21.6Gbps
• Maximum Input Resolution: 3840x2160@30Hz
• Maximum  Output Resolution:
  • VGA: 1920x1200@60Hz
  • HDMI®: 3840x2160@30Hz
  • DVI: 1920x1200@60Hz
• Chipset: Paradetech PS8339
• HDCP Support: HDCP 1.4
• Supported Audio: Pass-through for HDMI®
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: DisplayPort Male
• Output:
  • HDMI® Type A Female
  • VGA Female
  • DVI-D Female

Physical Properties

• Dimensions (approx.) WxDxH:
  • 60x60x16.4mm (2.36x2.36x0.65in) / Housing
  • 20x44.5x11mm (0.79x1.75x0.43in)
• Cable Length: 200mm (7.87in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 6mm (0.24in)
• Minimum Bend Radius: 60mm (2.36in)
• Net Weight: 0.053kg (0.12lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Colour: White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.076kg (0.17lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH

Package Contents

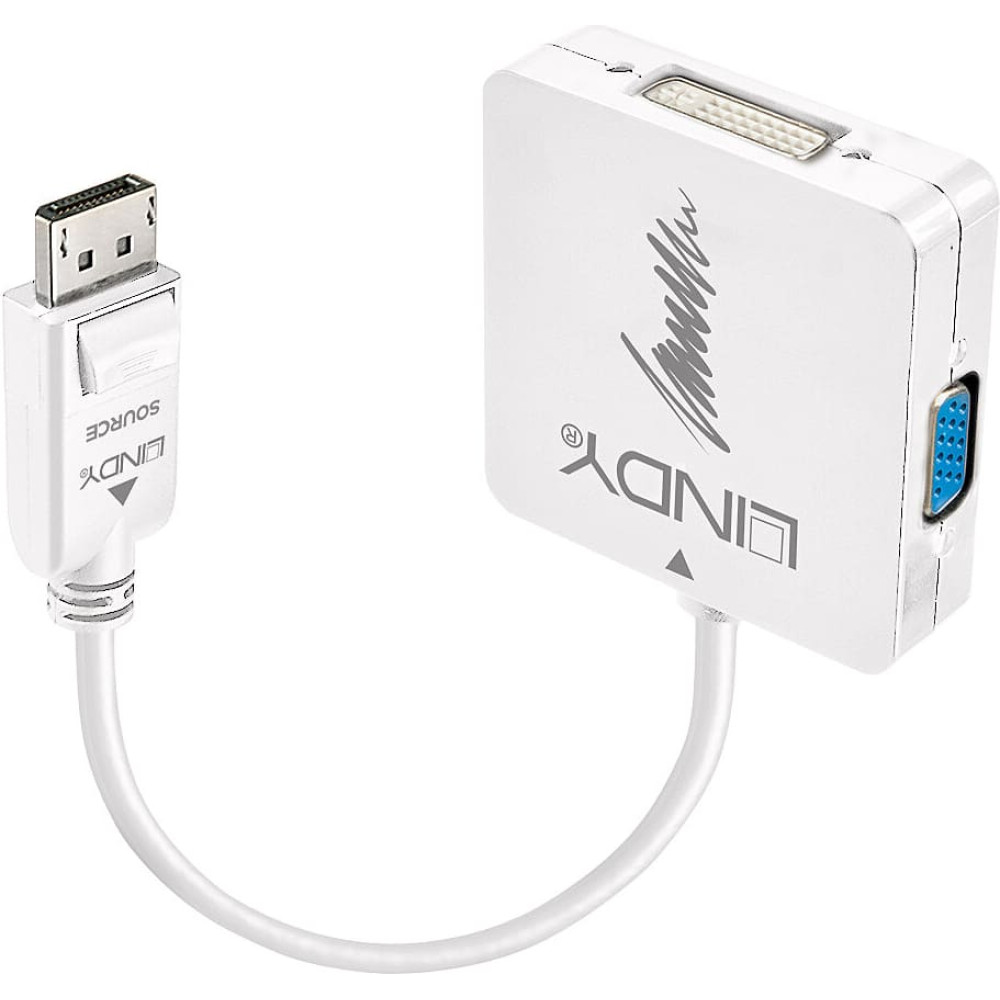

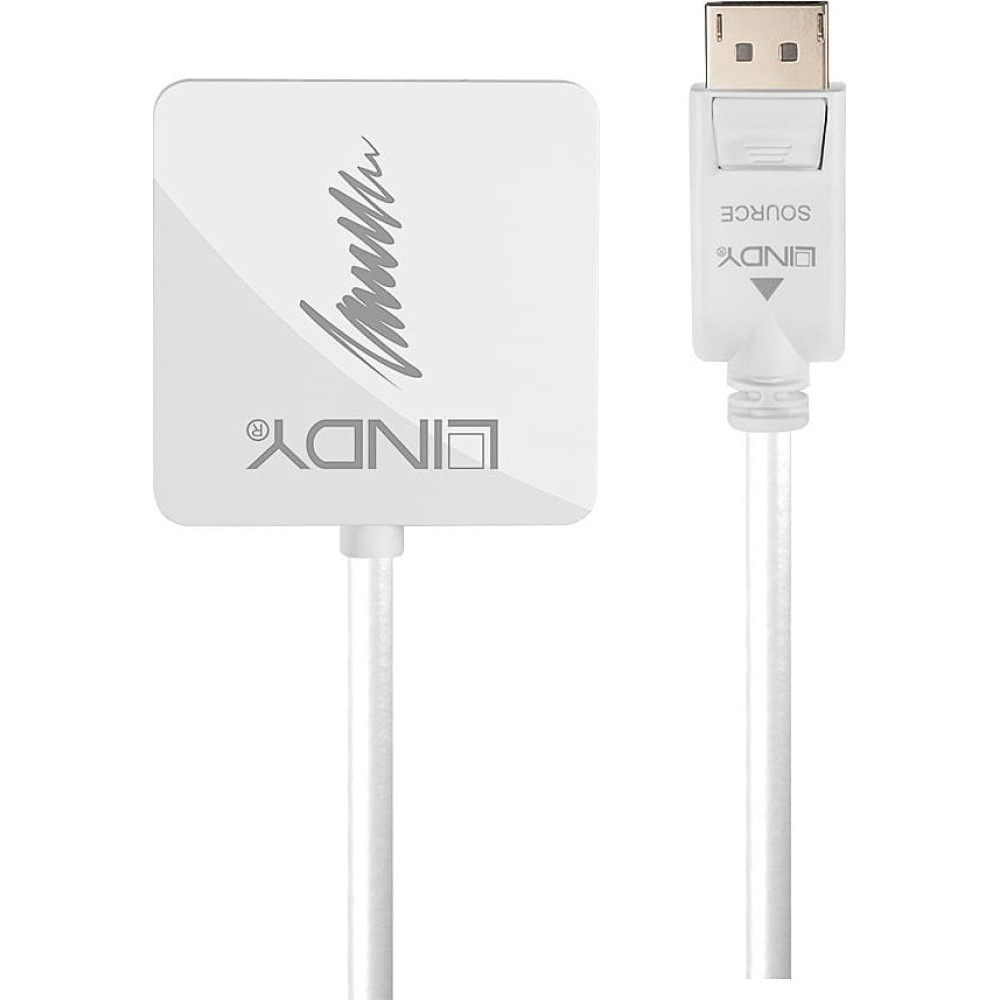

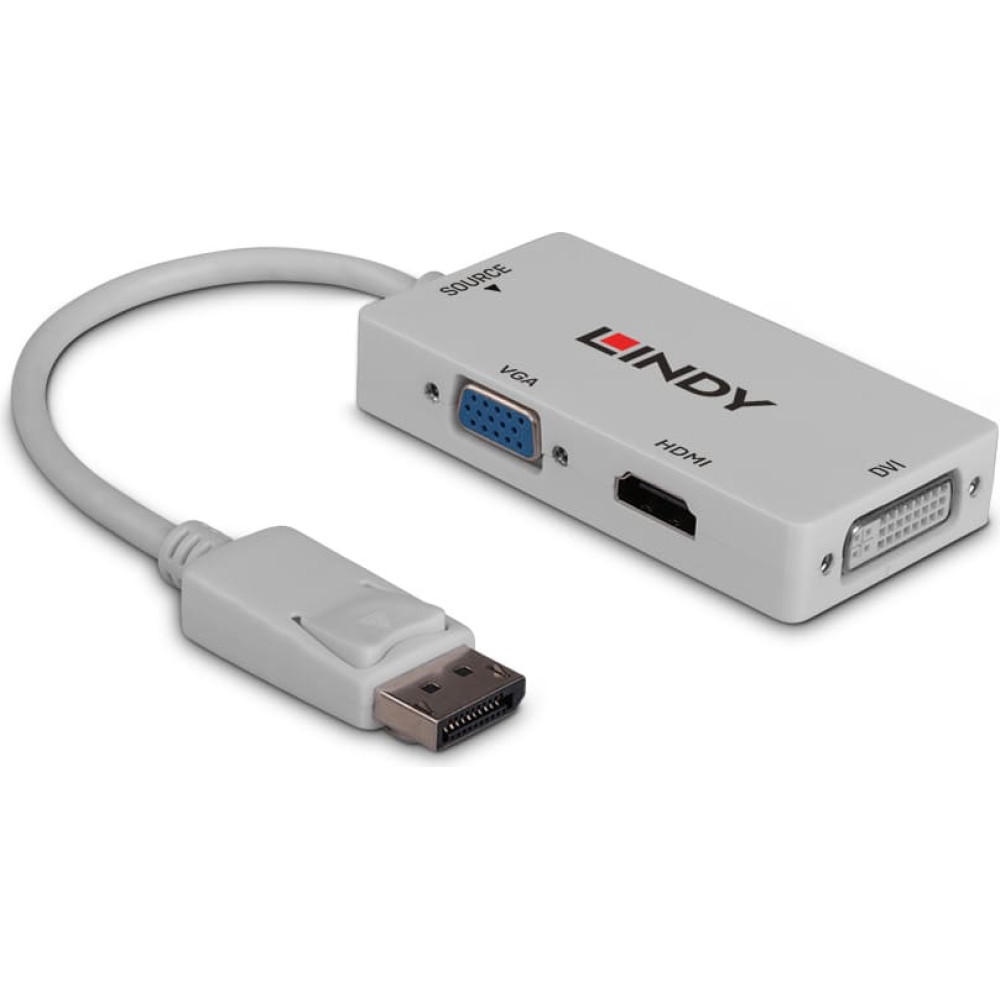

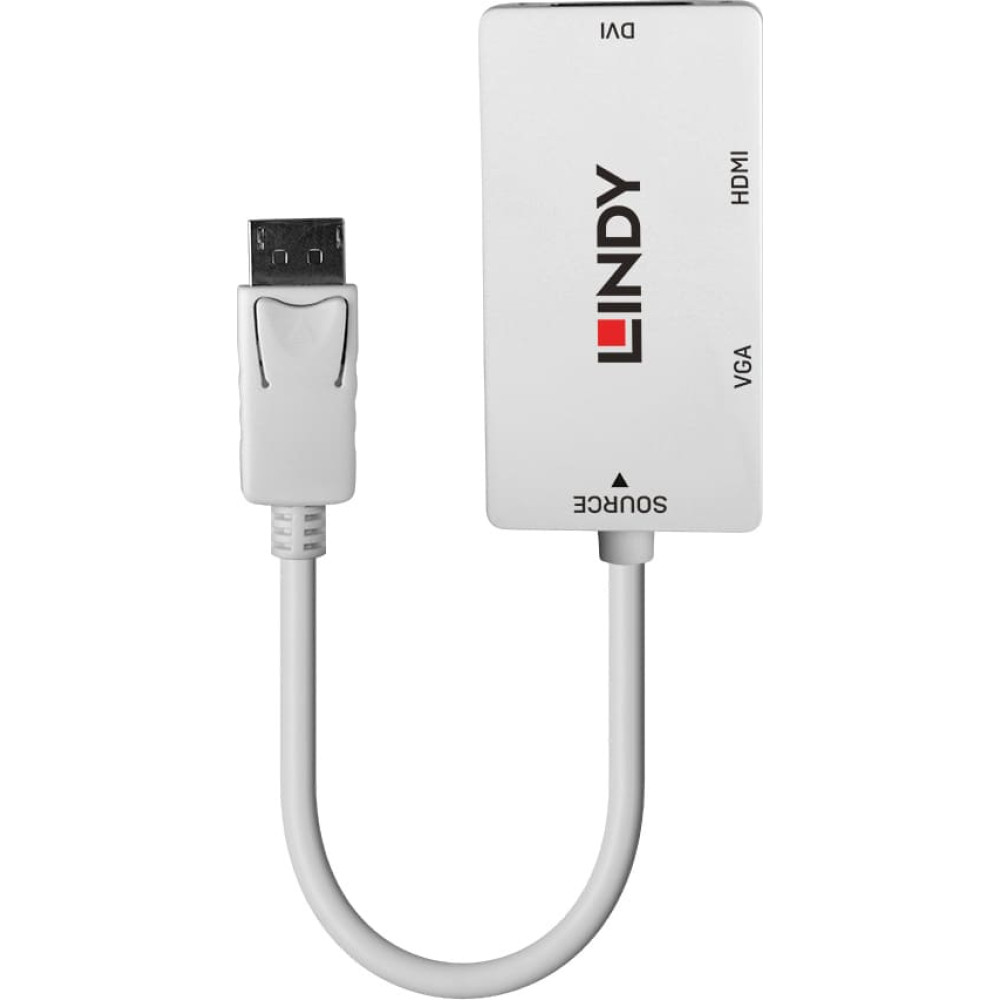

• DisplayPort 1.2 to HDMI® 1.4, DVI & VGA Active Converter

Purchasing Information

• No.: 41028
• EAN: 4002888410281
