Specifications

• AV Interface: HDMI
• Interface Standard: 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance:

70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit

100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit

150m (492.12ft) - 1280x720@60Hz

• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: Pass-through
• Supported Audio:

HDMI Audio Pass-through

2CH Analogue

• Separate Audio Ports: -
• IR Support: 20KHz - 60KHz
• CEC Support: Pass-through
• Serial Interface: RS-232 (Bi-directional)
• Transmission Protocol: HDBaseT
• Transmission Medium: 1 x Cat.6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: VS010-A0
• Special Features:

2CH Analogue Audio Extraction

PoC (Power over Cat.6)

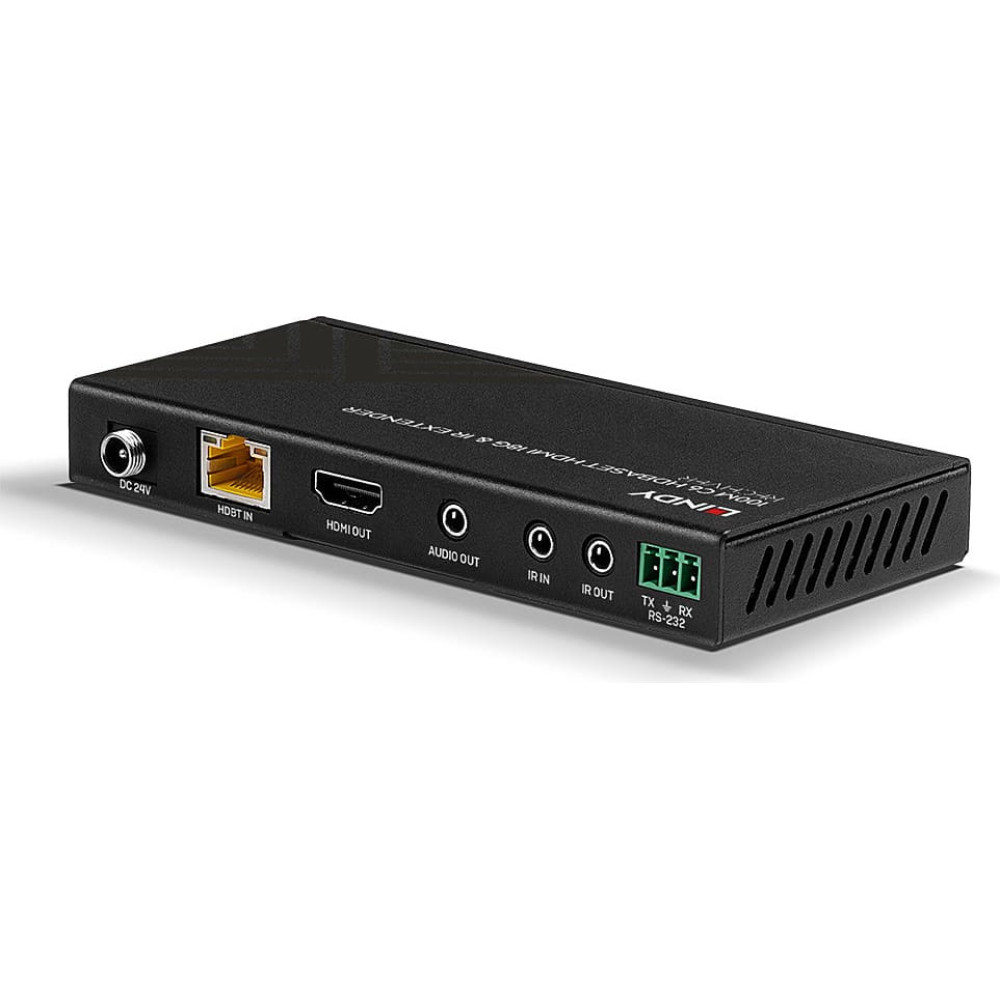

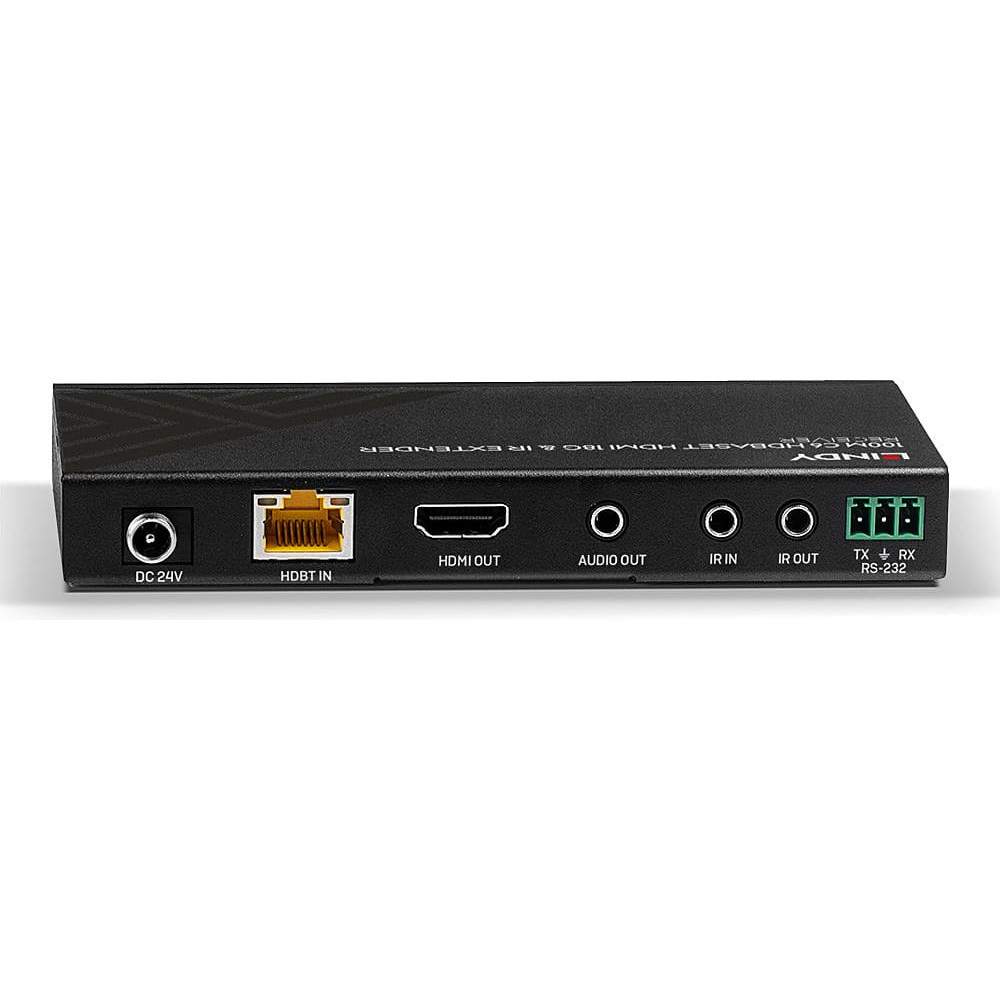

Connectors

• Transmitter Input: -
• Transmitter Output: -
• Receiver Input: RJ-45 (Female)
• Receiver Output:

HDMI Type A (Female)

3.5mm (Female)

• Bi-directional Ports: RS-232 (Female)
• Power : 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in)
• Housing Material: Metal
• Net Weight: 0.478kg (1.05lb)
• Operating Temperature : 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 24VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 220x115x75mm (8.66x4.53x2.95in)
• Gross Weight: 0.644kg (1.42lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Package Content

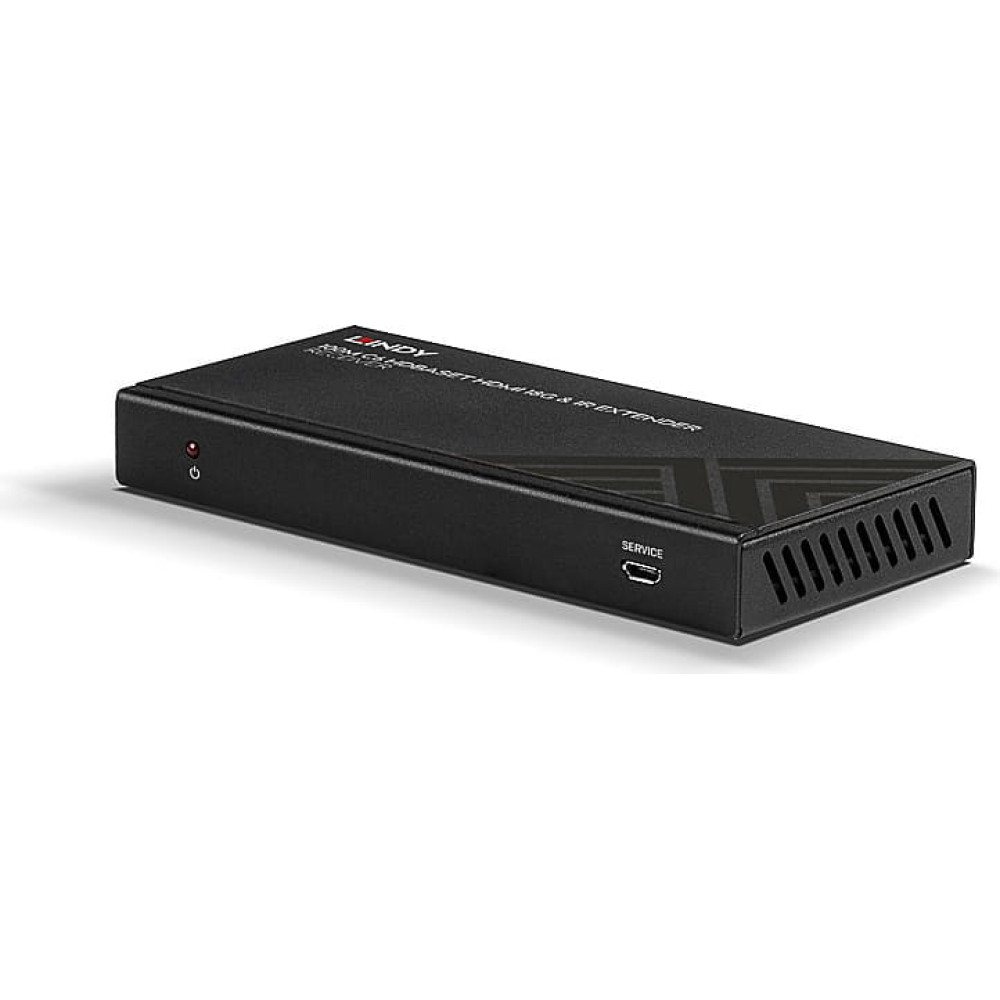

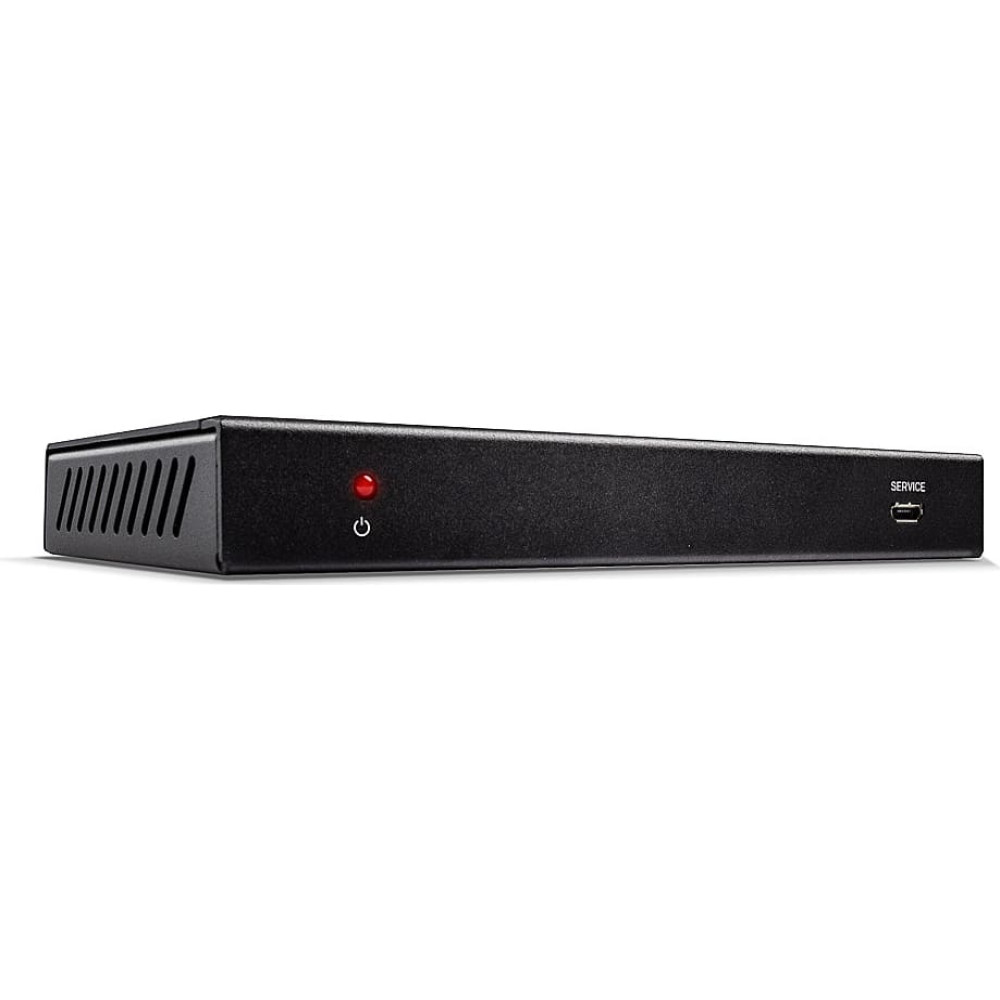

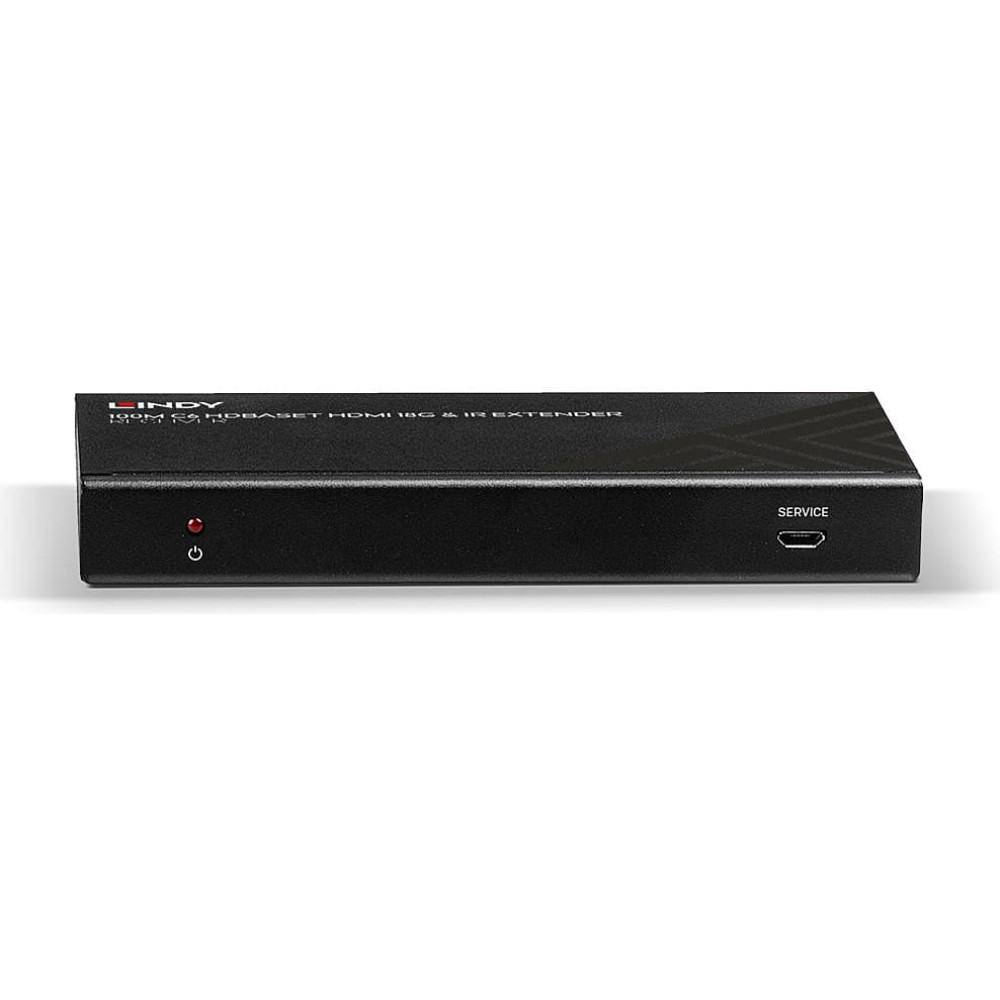

• HDBaseT HDMI Extender, Receiver
• IR Emitter Cable, 1.5m
• IR Receiver Cable, 1.5m
• 2 x Mounting Ears
• 3-Pin Terminal Block
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38207
• EAN: 4002888382076
