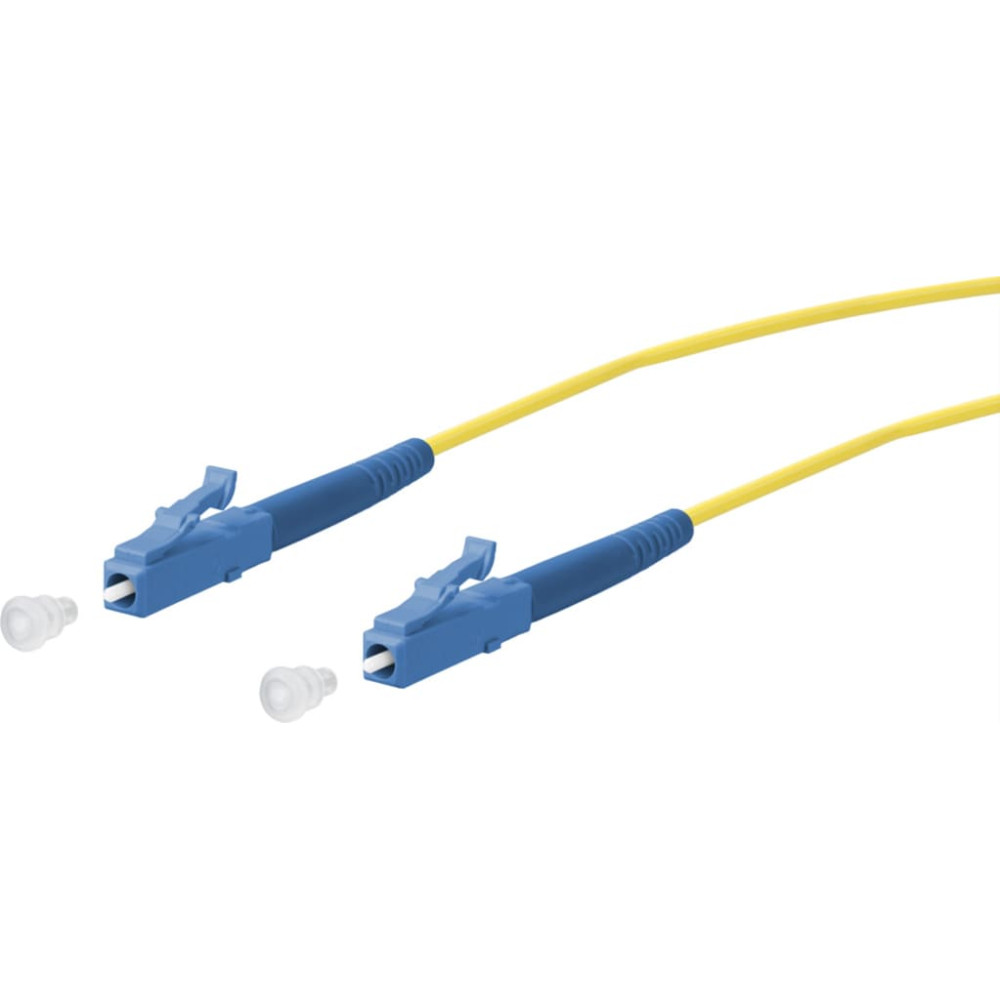

Metz Connect OpDAT patch cord, LC-S/LC-S OS2, 3 m

METZ CONNECT

Metz Connect OpDAT patch cord, LC-S/LC-S OS2, 3 m

Produkta kods: 151P3JOJO30E
Svītrkods: 4251122199301

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
aramid strain relief: yes
bend insensitivity: yes
cable lsoh: yes
cable type: Simplex Cable
colour: yellow
connection ports: LC / LC
depth of packaging (single piece): 210
external cable diameter: 2,0 mm
fibre section: Single mode 9/125µm OS2
flame retardant according to iec 60332-1-2: yes
garums: 3
gross weight: 0.019
halogen free according to iec 60754-2: yes
height of packaging (single piece): 20
low smoke according to iec 61034-2: yes
manufacturer: METZ CONNECT
operating temperature max.: 60
operating temperature min.: -10
package weight (single piece): 0.02
product group: Fibre optic cable
product type: Fibre Optic Jumper Cables OS2
side 1 connector type: LC
side 2 connector type: LC
storage temperature max.: 60
storage temperature min.: -10
weight: 15
width of packaging (single piece): 200
Preces apraksts

Single mode patch cord I-V(ZN)H1 E9/125 OS2

  • single mode fiber OS2, E9/125 µm, bend insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible to G.652.D
  • outer diameter 2.0 mm
  • cable color: yellow
  • jacket material LSHF-FR halogen-free with low smoke development, flame retardant
  • 100 % tested for insertion loss and return loss
  • all patch cords are provided with a serial number
