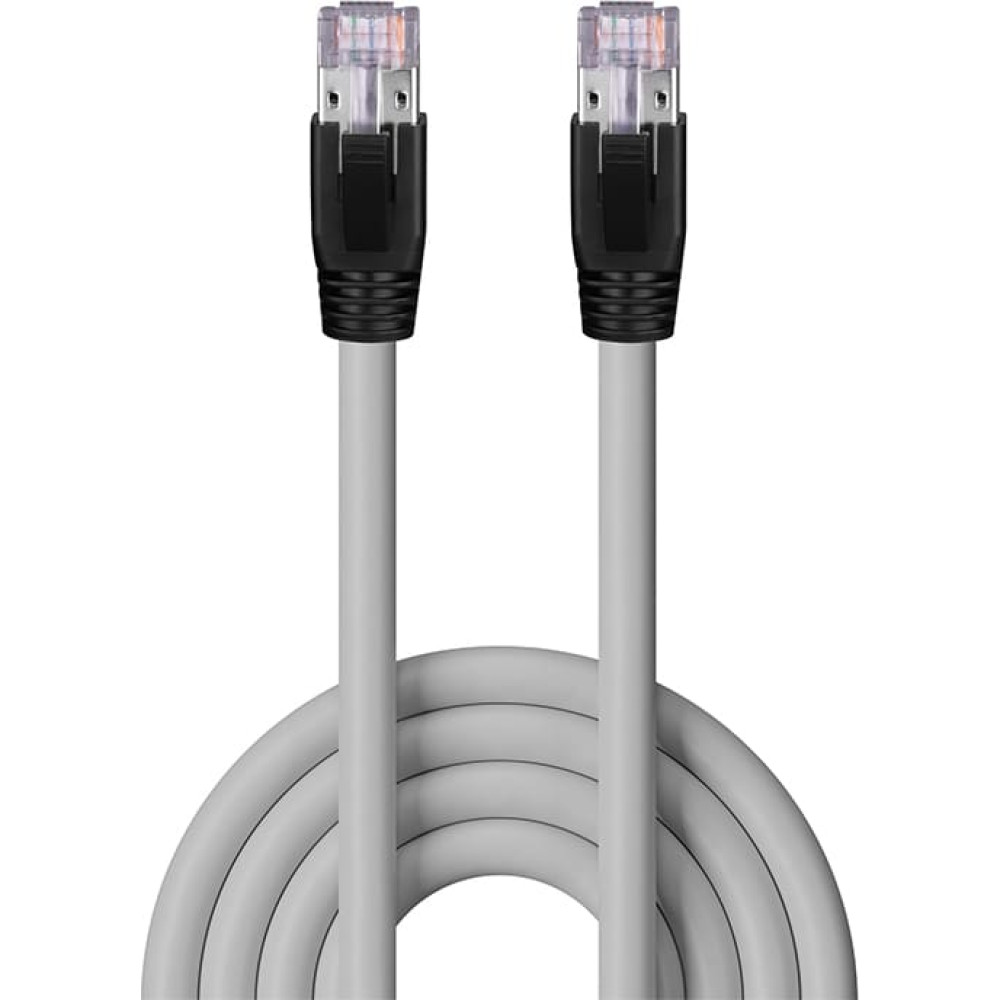

Lindy 50m Cat.6A U/FTP LSZH Solid Core Network Cable, Grey

LINDY

Lindy 50m Cat.6A U/FTP LSZH Solid Core Network Cable, Grey

Produkta kods: 48650
Svītrkods: 4002888486507

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
awg wire size: 23
bend radius (min): 6.9 cm
cable length: 50 m
cable shape: Round
cable shielding: U/FTP (STP)
cable standard: Cat6a
cabling technology: 10GBase-T
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/60/b5/b5/67/67b5b560d5a6e77de7614cd9/CE_48650-55.pdf
certification: CE, UKCA, RoHS, REACH
compliance certificates: CE, REACH, RoHS, UKCA
conductor material: Copper
connector 1: RJ-45
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: RJ-45
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Nickel/Gold
connector housing material: Polycarbonate (PC)
connector shield material: Aluminium
connector shielding: Yes
country of origin: CN
depth: 21.5 mm
doesn't contain: Halogen
frequency: 500 MHz
gross weight: 2.62
height: 8.3 mm
jacket material: Low smoke zero halogen (LSZH)
manual: Yes
net weight: 2.62
operating temperature (t-t): -10 - 60 °C
outer diameter: 7.6 mm
package type: Polybag
packaging height: 33.50
packaging lenght: 32.40
packaging width: 4.00
product colour: Grey
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 75 °C
sustainability compliance: Yes
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/ed/94/61/67/676194edad6bb6c75352be69/48650_TDS_V1.pdf
variations: 48655,48654,48653,48652,48651
warranty: 10
warranty period: 10 year(s)
width: 11.6 mm
Preces apraksts

Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: Nickel
  • Pin Construction: Brass
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

Cable Construction

  • Length: 50m (164.04ft)
  • Colour: Grey
  • Type: Cat.6A
  • Jacket Diameter: 7.6mm (0.24in)
  • Jacket Material: LSZH
  • Conductor Material: Bare Copper
  • Conductor Gauge: 23AWG
  • Shielding: Aluminium Foil

Specifications

  • Supported Bandwidth: 500MHz
  • Nominal Attenuation: 49.3dB/100m @ 500MHz
  • Minimum Bend Radius: 72mm (2.84in)
  • Operating Temperature: -10°C - 60°C (14F - 140°F)
  • Storage Temperature: -20°C - 75°C (-4F - 167°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 48650
  • EAN: 4002888486507

This product is also available in other lengths:

  • 48650 - 50m (165.68ft)
  • 48651 - 60m (196.85ft)
  • 48652 - 70m (229.65ft)
  • 48653 - 80m (262.46ft)
  • 48654 - 90m (295.27ft)
  • 48655 - 100m (328.41ft)



CE Doc: CE_48650-55.pdf
Tech Data Sheets: 48650_TDS_V1.pdf
