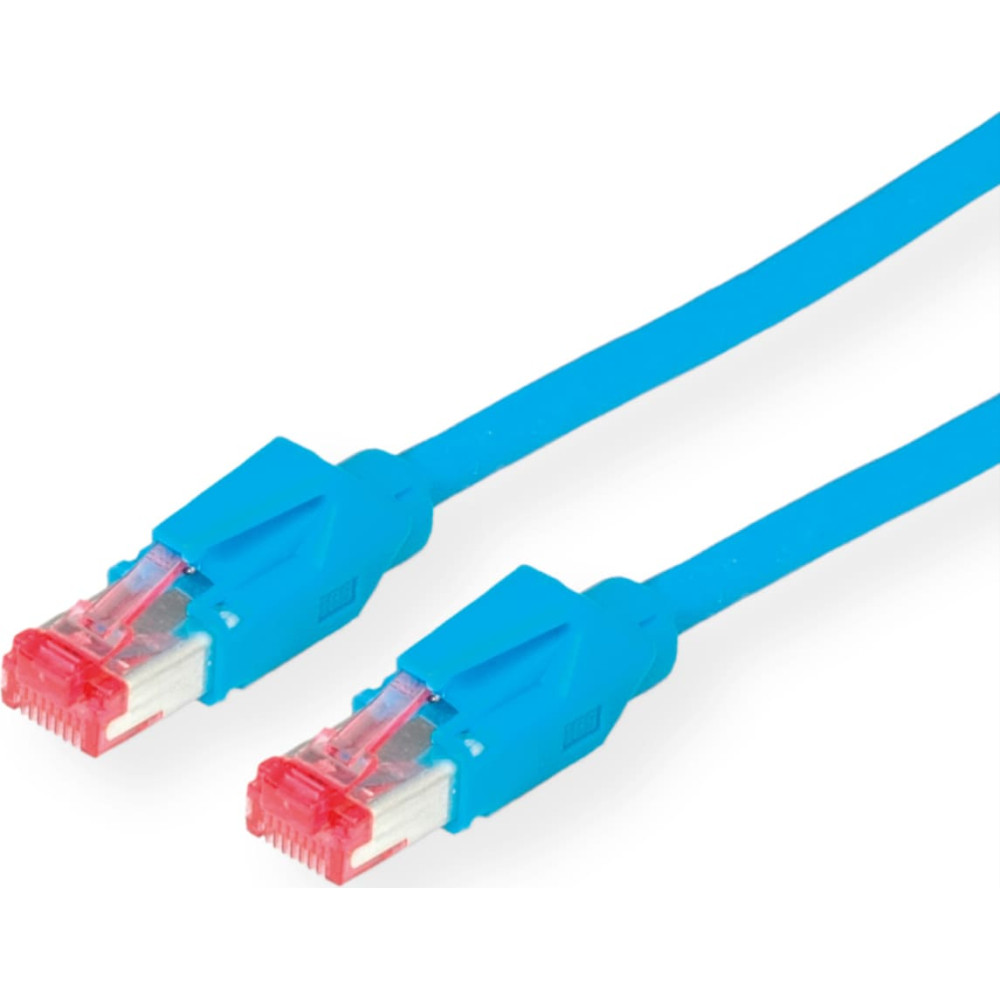

Secomp DÄTWYLER patch cable Cat.6 (Class E), CU 7702 flex LS0H, Hirose TM21, blue, 0.5 m

SECOMP

Secomp DÄTWYLER patch cable Cat.6 (Class E), CU 7702 flex LS0H, Hirose TM21, blue, 0.5 m

Produkta kods: 21.05.0004
Svītrkods: 7611990756049

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
anti-kink sleeve: Put-on
assignment: 1:1
cable lsoh: yes
colour: blue
colour (spout): blue
conductor cross section (awg): AWG 26
conductor type: Stranded
connector type rj45: HiRose TM21
crossed: no
depth of packaging (single piece): 240
external cable diameter: 6,0 mm
garums: 0.5
gross weight: 0.034
height of packaging (single piece): 30
impedance: 100 Ohm
locking lever: yes
manufacturer: SECOMP
material (external cable mantle): Halogen-free compound
package weight (single piece): 0.034
product group: Twisted Pair Cable
product type: S/FTP patch cord (PiMF)
quantity of wires: 8
shield type: S/FTP (PiMF)
side 1 connector gender: Male
side 1 connector type: RJ-45
side 2 connector gender: Male
side 2 connector type: RJ-45
transfer quality: Cat6 / Class E
width of packaging (single piece): 230
Preces apraksts

DÄTWYLER data cable CU 7702 flex LS0H, assembled on both sides with Hirose TM21 connectors for use in Gigabit Ethernet networks, Cat.6, 1.2 GHz. Halogen-free, flame-retardant, low-smoke.

  • High-quality flexible patch cable with pair and overall shielding based on DÄTWYLER CU 7702 (Cat.7)
  • Assembled on both sides with Cat.6 connectors (Hirose TM21 connectors)
  • Kink protection and protective tab for locking pin
  • 8-wire TP copper stranded wire, pair shielding: laminated aluminium foil, overall shielding: tinned copper braid
  • Cable sheath: flame-retardant, low-smoke, halogen-free polyolefin (FRNC/LSOH)
  • Outer diameter 6.0 mm (approximate)
  • Cat.6 / Class E according to ANSI / TIA
  • Pin assignment 8 wires 1:1 according to EIA/TIA 568
