Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.0b
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz RGB 8bit
• HDCP Support: 2.2
• Supported Audio:
  • HDMI® Audio Pass-through up to 7.1CH
  • Coax up to 5.1CH
  • Stereo Analogue
• IR Support: 38kHz
• CEC Support: Yes
• Serial Interface: RS-232
• LED / LCD Display: LCD Display
• Control: Push Buttons, IR, RS-232, IP
• Special Features: Multi-View, Video Wall, Seamless Switching

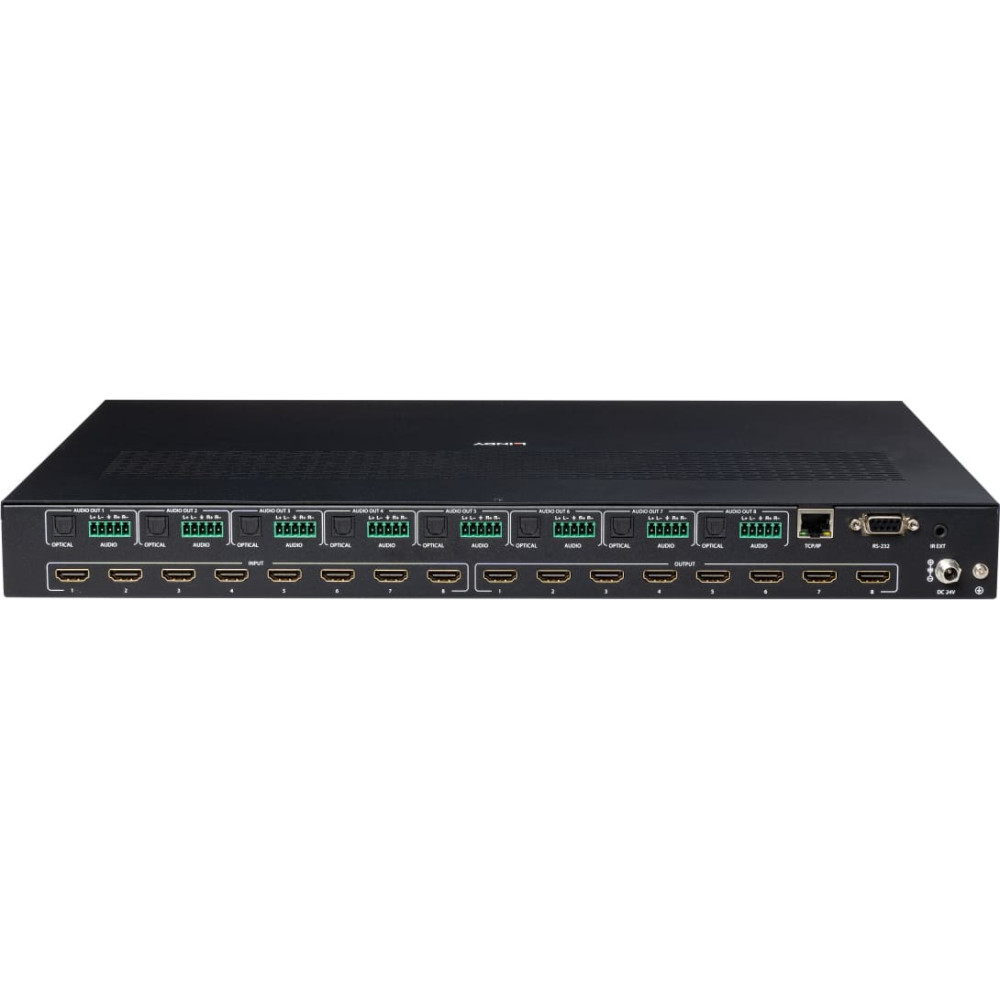

Connectors

• Input: 8 x HDMI® (Female)
• Output: 8 x HDMI® (Female), 8 x Phoenix Connector (Female), 8 x Coax (Female)
• Control: RS-232 (Female), RJ45 (Female)
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 440x300x44.5mm (17.32x11.81x1.75in)
• Housing Material: Metal
• Net Weight: 3.95kg (8.71lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90 % (non-condensing)
• Power Requirements: 24VDC 3.75A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 660x316x119mm (25.98x12.44x4.69in)
• Gross Weight: 5.94kg (13.1lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS & REACH, CP65

Package Contents

• HDMI® Matrix
• IR Remote Control
• IR Receiver Cable
• Mounting Brackets
• Multi-Country PSU (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38434
• EAN: 4002888384346
