Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.1
• Supported Bandwidth: 48Gbps
• Maximum Resolution: 7680x4320@60Hz 4:2:0 12bit
• HDCP Support: 2.3
• Supported Audio:
  • HDMI® Audio Pass-through up to 7.1CH
  • Coax up to 5.1CH
  • Stereo Analogue
• IR Support: 38kHz
• CEC Support: Yes
• Serial Interface: RS-232
• LED / LCD Display
• Control via front panel buttons, IR remote, RS-232 and Web GUI
• Special Features: ARC, 8K to 1080p Output Downscaler, Dolby Vision,Dolby Atmos, HDR 10

Connectors

• Input: 8 x HDMI® (Female)
• Output: 8 x HDMI® (Female), 8 x Phoenix (Female), 8 x Coax (Female)
• Control: RS-232 (Female), RJ45 (Female), Stereo Mini-jack
• Power: 5.5/2.5mm

Physical Properties

• Dimensions (approx.) WxDxH: 440x203x44.5mm (17.32x7.99x1.75in)
• Housing Material: Metal
• Net Weight: 2.94kg (6.48lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 10-90% (non-condensing)
• Power Requirements: 24VDC 3.75A
• MTBF: 50.000 hours
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 500x333x68mm (19.69x13.11x2.68in)
• Gross Weight: 3.456kg (7.62lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH

Package Contents

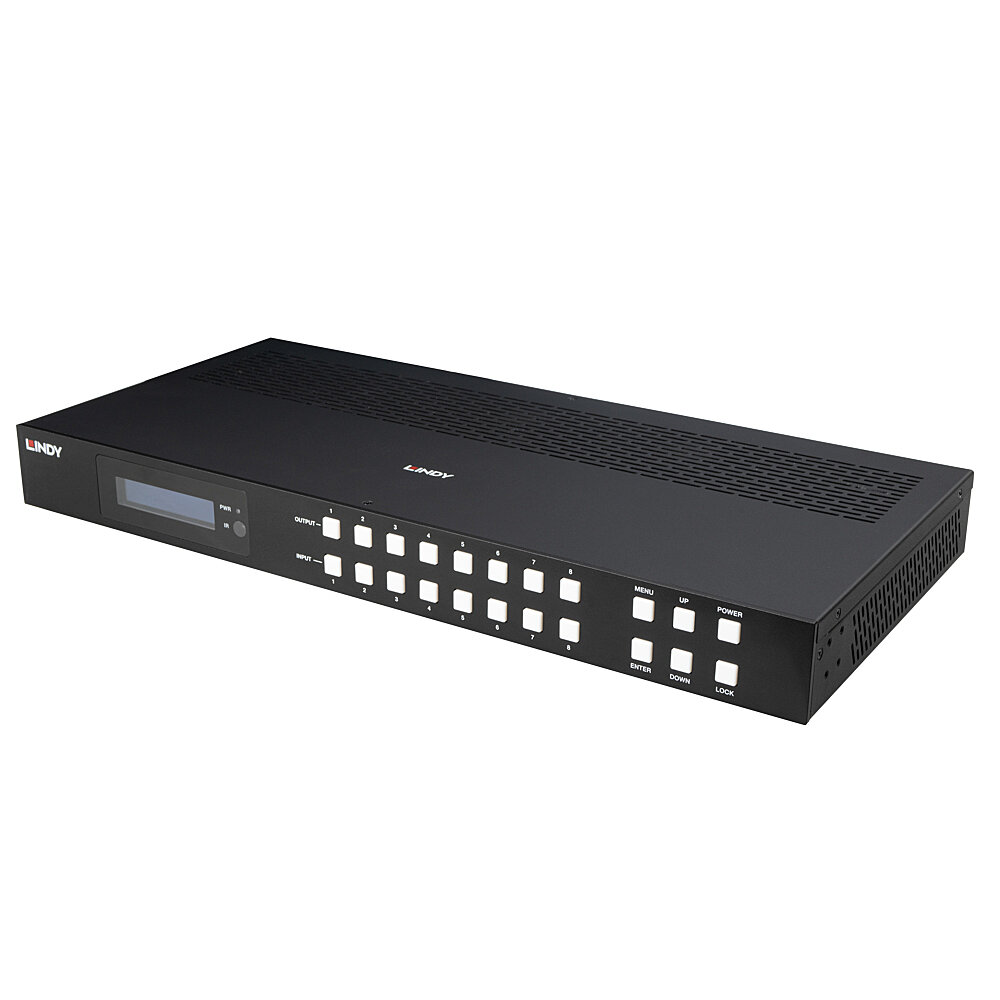

• HDMI® Matrix
• IR Remote Control
• IR Receiver Cable
• Mounting Brackets
• Multi-Country PSU (UK, EU, US & AUS)
• (UK, EU, US & AUS) Mains Cables

• Lindy Manual

Purchasing Information

• No.: 38435
• EAN: 4002888384353

Manuals: LINDY_38435_Man_1225.pdf
