Specifications

• AV Interface: HDMI®
• Interface Standard: 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2 and 1.4
• EDID selection: 4K60 444, 4K60 420, 4K30 444, 1080p@60Hz
• Control: micro buttons
• Special Features: signal generator, display emulator, HDCP analyzer

Connectors

• Input: HDMI® Type A (Male)
• Output: HDMI® Type A (Male)
• Other Connections: USB Micro-B (Female)
• Power: USB Micro B (generator)

Physical Properties

• Dimensions (approx.) WxDxH: 100x22x13.6mm (3.94x0.87x0.54in)
• Housing Material: Metal
• Net Weight: 0.04kg (0.09lb)
• Operating Temperature: -5°C - 55°C (23°F - 131°F)
• Storage Temperature: -25°C - 70°C (-13°F - 158°F)
• Humidity: 10~90% RH (non condensing)
• Power Requirements: 1.2W
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions WxDxH: 122x60x18mm (4.8x2.36x0.71in)
• Gross Weight: 0.075kg (0.17lb)
• Warranty (Years): 3
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

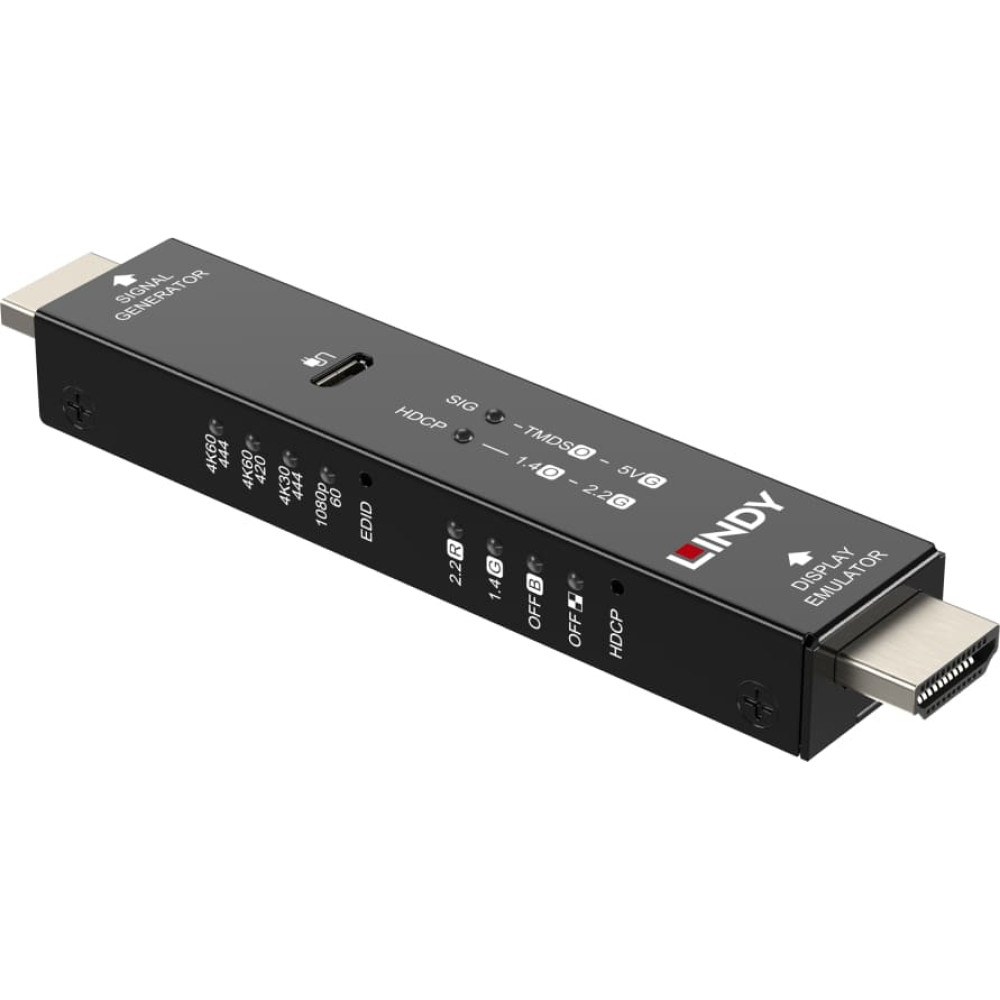

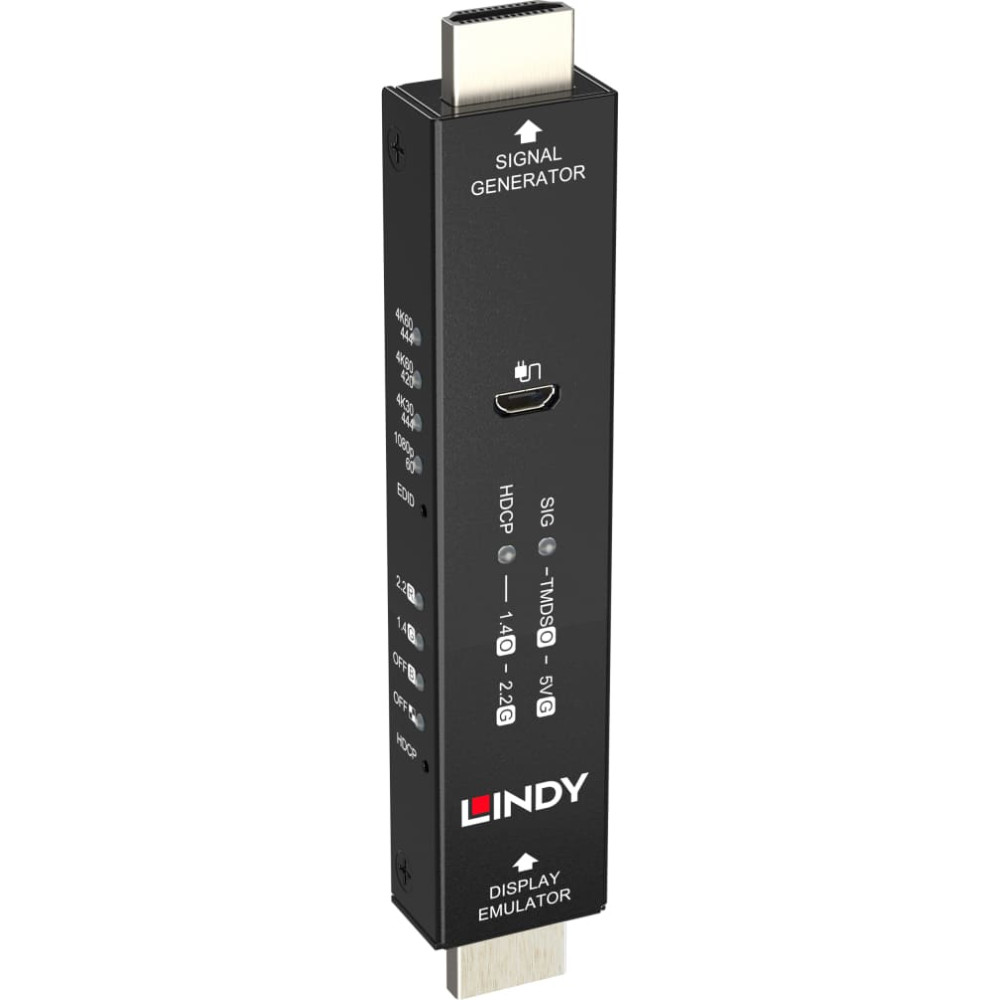

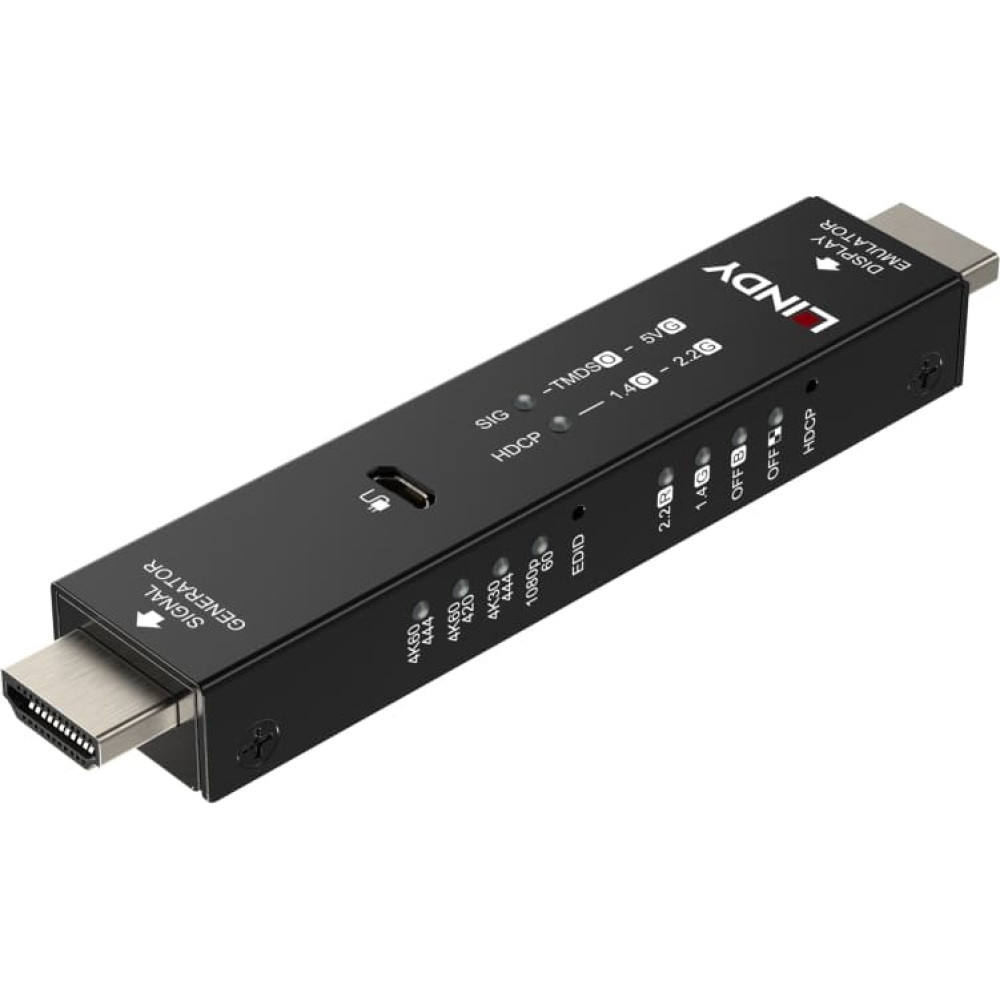

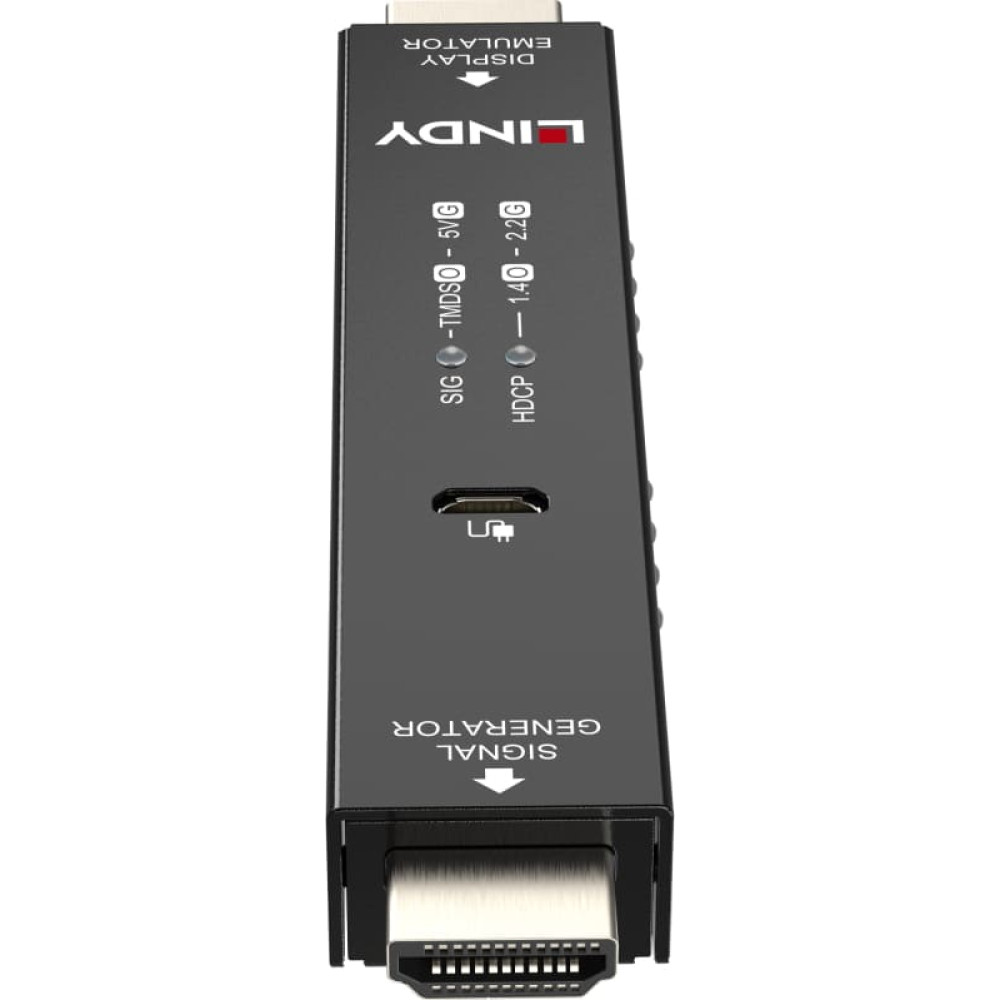

• HDMI® 4K60 Signal Generator & Display Emulator
• USB Type A to Micro B cable
• Stainless pin
• Lindy Manual

Purchasing Information

• No.: 32683
• EAN: 4002888326834
