Specifications

• AV Interface: HDMI®
• Interface Standard: 2.0b, IEEE 802.3af
• Supported Bandwidth: 18Gbps
• Maximum Distance: 100m (328.08ft)
• Maximum Resolution: 4K@60Hz 4:4:4
• HDCP Support: 2.2
• EDID Pass Through: presets, user-defined
• Supported Audio: LPCM 2CH (48KHz)
• Separate Audio Ports: 3.5mm
• IR Support: -
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: H.264/H.265
• Transmission Medium: IP
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: H2S85
• Special Features: OLED display, Audio embedding, Audio de-embedding, PoE, API

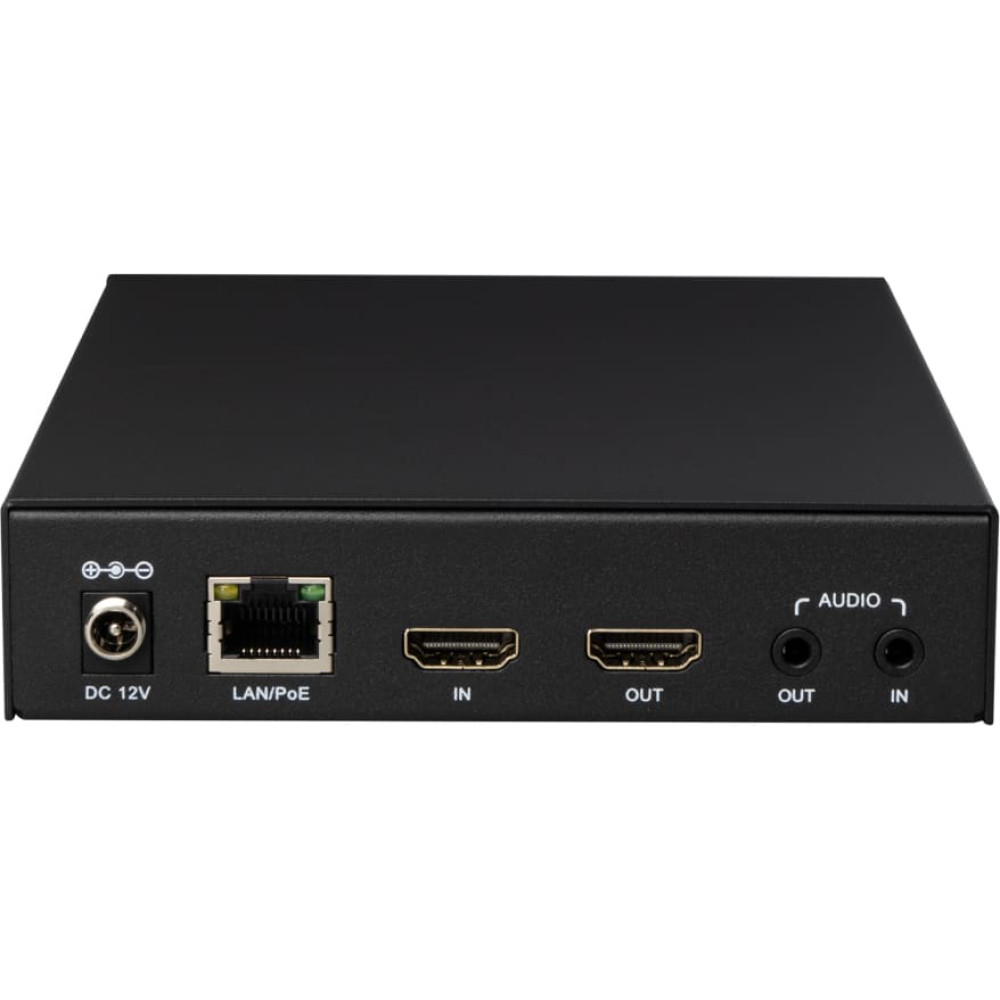

• Input: HDMI® (Female), 3.5mm Audio (Female)
• Output: HDMI® (Female), 3.5mm Audio (Female)
• Network Ports: RJ-45 (Female)
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 160x130x30mm (6.3x5.12x1.18in)
• Housing Material: Metal
• Net Weight: 0.19kg (0.42lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 12VDC 1A
• MTBF: 50.000 hours
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 213x181x77mm (8.39x7.13x3.03in)
• Gross Weight: 1.02kg (2.25lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

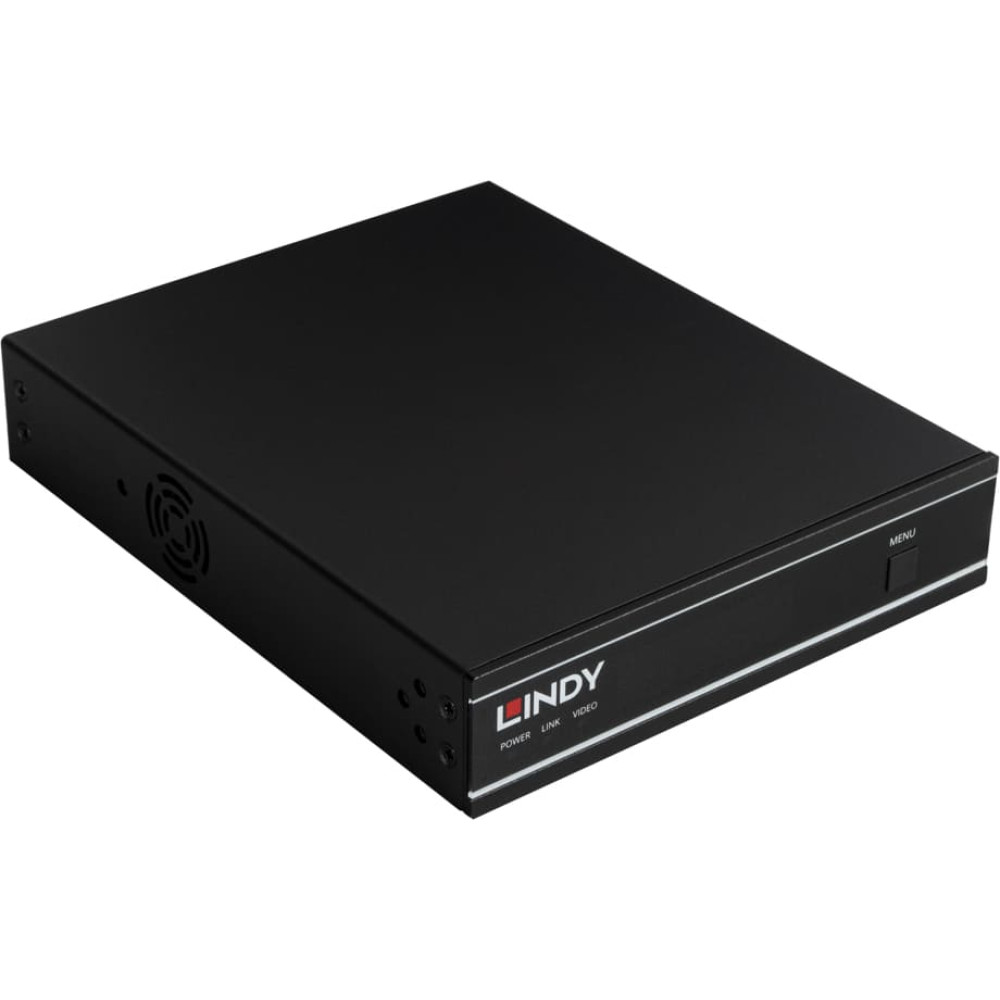

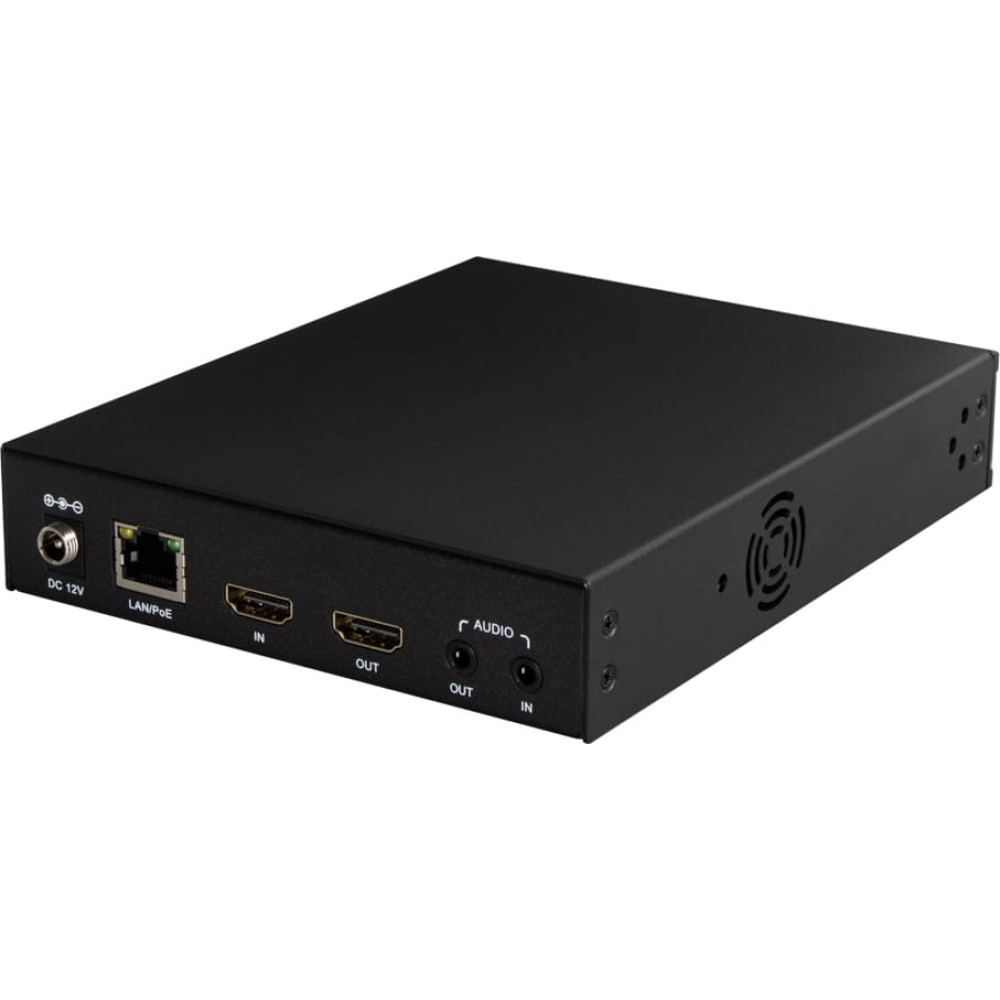

• HDMI® over IP Streaming Encoder
• 2 x Mounting Ears & 4 x Screws
• Rubber feet
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38519
• EAN: 4002888385190
